SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS M460, Intel Core 2 Extreme QX9650

CPU2006 license: 22 Test date: Feb-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Mar-2008
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2007

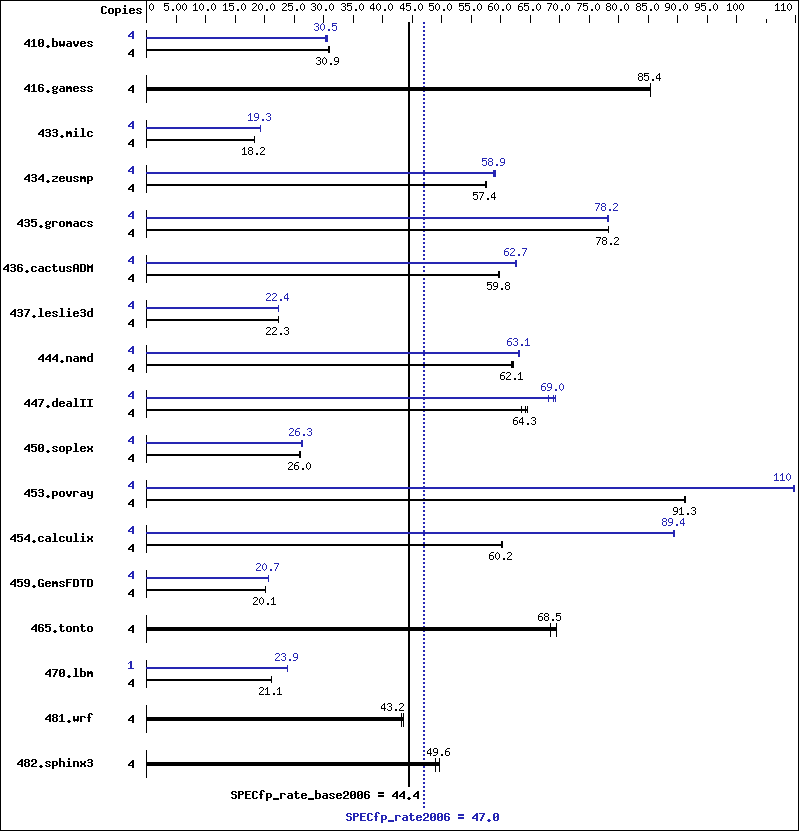

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Extreme QX9650
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB PC2-6400 CL6 SDRAM)
Disk Subsystem: 1 x 400 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate, 64 bit Version
Compiler: Intel C++ Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Intel Visual Fortran Compiler
for applications running on Intel 64,
Version 10.1, Build 20070913
Microsoft Visual Studio 2005 with SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: SmartHeap Library Version 8.0 (64 bit) from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1760 30.9 1757 30.9 1759 30.9 4 1774 30.6 1789 30.4 1784 30.5
416.gamess 4 917 85.4 917 85.4 917 85.4 4 917 85.4 917 85.4 917 85.4
433.milc 4 2013 18.2 2013 18.2 2013 18.2 4 1905 19.3 1904 19.3 1896 19.4
434.zeusmp 4 635 57.4 632 57.6 634 57.4 4 619 58.8 615 59.2 618 58.9
435.gromacs 4 365 78.2 365 78.2 365 78.3 4 365 78.2 366 78.1 365 78.2
436.cactusADM 4 802 59.6 799 59.9 800 59.8 4 764 62.6 763 62.7 762 62.7
437.leslie3d 4 1681 22.4 1684 22.3 1684 22.3 4 1687 22.3 1682 22.4 1681 22.4
444.namd 4 517 62.1 516 62.2 518 61.9 4 508 63.1 508 63.2 508 63.1
447.dealII 4 720 63.6 708 64.6 712 64.3 4 672 68.1 663 69.0 661 69.2
450.soplex 4 1279 26.1 1282 26.0 1283 26.0 4 1267 26.3 1268 26.3 1262 26.4
453.povray 4 233 91.4 233 91.3 233 91.2 4 194 110   194 110   194 110
454.calculix 4 548 60.2 549 60.2 547 60.3 4 370 89.2 369 89.4 369 89.5
459.GemsFDTD 4 2112 20.1 2106 20.2 2111 20.1 4 2053 20.7 2053 20.7 2054 20.7
465.tonto 4 567 69.4 576 68.4 574 68.5 4 567 69.4 576 68.4 574 68.5
470.lbm 4 2600 21.1 2598 21.2 2601 21.1 1 576 23.9 574 23.9 574 23.9
481.wrf 4 1034 43.2 1026 43.5 1035 43.2 4 1034 43.2 1026 43.5 1035 43.2
482.sphinx3 4 1571 49.6 1568 49.7 1593 48.9 4 1571 49.6 1568 49.7 1593 48.9

Platform Notes

BIOS default settings have been used.

General Notes


For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com/

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   -assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   -TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -F950000000   shlW64M.lib

C++ benchmarks:

 -fast   -Qcxx-features   -F950000000   shlW64M.lib

Fortran benchmarks:

 -fast   -F950000000

Benchmarks using both Fortran and C:

 -fast   -F950000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
470.lbm:  -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -F950000000
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -fast   -Oa   -F950000000   shlW64M.lib
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
416.gamess:  basepeak = yes
434.zeusmp:  -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   -F950000000
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  -fast   -Qunroll2   -Ob0   -Qprefetch   -F950000000
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
436.cactusADM:  -fast   -Qunroll2   -Qprefetch   -F950000000
454.calculix:  -fast   -Qunroll-aggressive   -F950000000
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.03.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090713.03.xml.
