SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL385 G5
(2.3 GHz AMD Opteron 2356)

SPECfp®2006 = 17.8

CPU2006 license: 3 Test date: Mar-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2008
Tested by: Hewlett-Packard Company Software Availability: May-2008

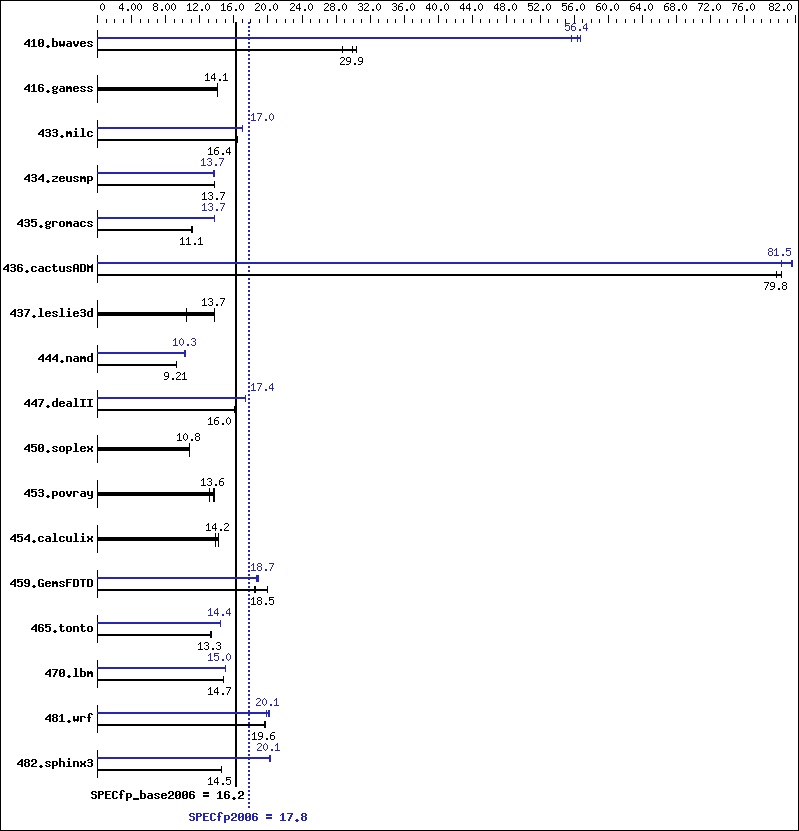

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, PC2-5300P CL5)
Disk Subsystem: 2x72 GB 15 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: binutils-2.18.50

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 455 29.9  447 30.4  473 28.7  240 56.7 241 56.4 244 55.7
416.gamess 1394 14.0  1389 14.1  1386 14.1  1394 14.0 1389 14.1 1386 14.1
433.milc 561 16.4  561 16.4  560 16.4  539 17.0 538 17.0 538 17.1
434.zeusmp 662 13.7  662 13.7  664 13.7  669 13.6 666 13.7 666 13.7
435.gromacs 643 11.1  644 11.1  647 11.0  520 13.7 521 13.7 520 13.7
436.cactusADM 150 79.8  150 79.7  149 80.3  149 80.4 146 81.6 147 81.5
437.leslie3d 684 13.7  904 10.4  686 13.7  684 13.7 904 10.4 686 13.7
444.namd 870 9.21 870 9.22 871 9.21 783 10.2 781 10.3 782 10.3
447.dealII 713 16.0  713 16.0  714 16.0  659 17.4 659 17.4 658 17.4
450.soplex 775 10.8  775 10.8  775 10.8  775 10.8 775 10.8 775 10.8
453.povray 389 13.7  406 13.1  392 13.6  389 13.7 406 13.1 392 13.6
454.calculix 581 14.2  598 13.8  580 14.2  581 14.2 598 13.8 580 14.2
459.GemsFDTD 533 19.9  575 18.5  574 18.5  563 18.8 570 18.6 566 18.7
465.tonto 743 13.3  742 13.3  738 13.3  683 14.4 683 14.4 684 14.4
470.lbm 932 14.7  931 14.8  933 14.7  915 15.0 918 15.0 914 15.0
481.wrf 568 19.7  570 19.6  569 19.6  565 19.8 556 20.1 555 20.1
482.sphinx3 1340 14.5  1341 14.5  1341 14.5  967 20.1 963 20.2 968 20.1

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896
 Total number of huge pages available is 7168

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:896   -Mconcur   -Msafeptr   -Mfprelaxed   -Mipa=jobs:8   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:896   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mconcur=noaltcode(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnovect   -alias=ansi   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  -fastsse   -Mloop32   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -Mconcur   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  basepeak = yes
434.zeusmp:  -fast   -Mloop32   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inlinenopfo(pass 2)   -Mconcur(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
465.tonto:  -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=distance:8   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mconcur   -Mfpapprox=rsqrt   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -fastsse   -Mfprelaxed   -Mconcur   -Msmartalloc   -Mdse   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  basepeak = yes
481.wrf:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   -Mconcur=noaltcode   -Mvect=noaltcode   -Mprefetch=distance:8   -tp barcelona-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.xml.
