SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL585 G5
(2.3 GHz AMD Opteron 8356)

SPECfp®2006 = 17.2

CPU2006 license: 3 Test date: Mar-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Mar-2008
Tested by: Hewlett-Packard Company Software Availability: May-2008

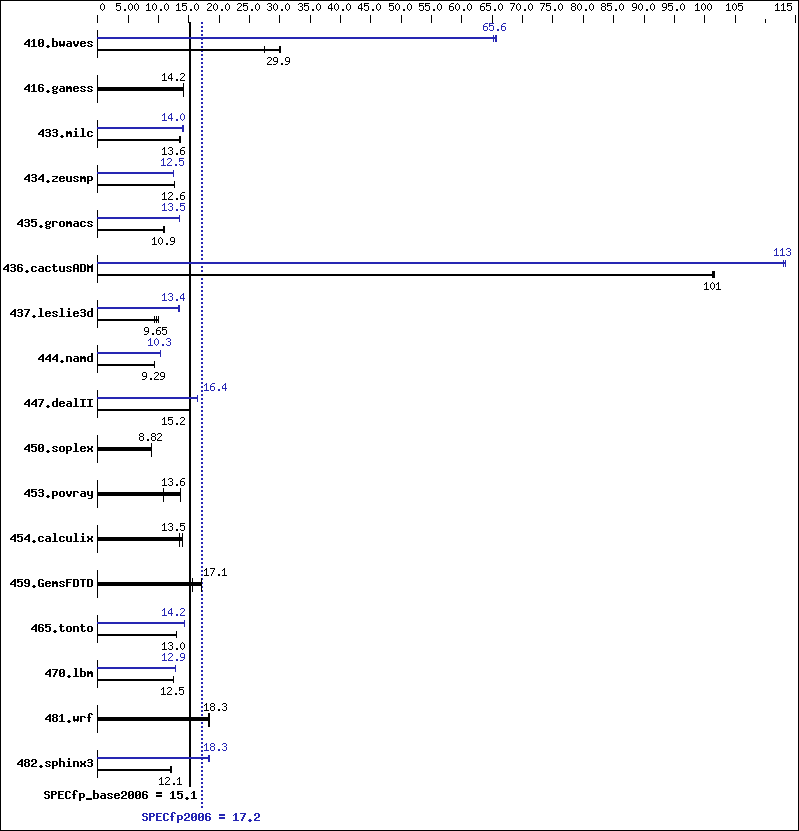

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16x4 GB, PC2-5300P CL5)
Disk Subsystem: 1x146 GB 10 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: binutils-2.18.50

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 454 29.9  453 30.0  493 27.5  208 65.2  207 65.7  207 65.6
416.gamess 1381 14.2  1383 14.2  1380 14.2  1381 14.2  1383 14.2  1380 14.2
433.milc 677 13.6  681 13.5  676 13.6  653 14.0  651 14.1  657 14.0
434.zeusmp 724 12.6  721 12.6  720 12.6  725 12.5  728 12.5  727 12.5
435.gromacs 654 10.9  651 11.0  654 10.9  531 13.4  531 13.5  527 13.5
436.cactusADM 118 101    118 101    118 102    105 113    105 113    106 113
437.leslie3d 974 9.65 1003 9.37 940 10.0  701 13.4  711 13.2  700 13.4
444.namd 863 9.29 865 9.28 863 9.29 776 10.3  776 10.3  774 10.4
447.dealII 752 15.2  754 15.2  753 15.2  697 16.4  698 16.4  698 16.4
450.soplex 940 8.87 948 8.80 945 8.82 940 8.87 948 8.80 945 8.82
453.povray 492 10.8  390 13.6  389 13.7  492 10.8  390 13.6  389 13.7
454.calculix 594 13.9  613 13.5  610 13.5  594 13.9  613 13.5  610 13.5
459.GemsFDTD 621 17.1  621 17.1  682 15.6  621 17.1  621 17.1  682 15.6
465.tonto 758 13.0  759 13.0  761 12.9  691 14.2  692 14.2  691 14.2
470.lbm 1097 12.5  1105 12.4  1102 12.5  1066 12.9  1068 12.9  1076 12.8
481.wrf 607 18.4  610 18.3  609 18.3  607 18.4  610 18.3  609 18.3
482.sphinx3 1631 11.9  1613 12.1  1610 12.1  1064 18.3  1061 18.4  1069 18.2

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 PGI_HUGE_PAGES set to 896.
 Total number of huge pages available is 14336.

Platform Notes

BIOS configuration:
  Power Regulator set to Static High Performance Mode

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fastsse   -Msmartalloc=huge:896   -Mconcur   -Msafeptr   -Mfprelaxed   -Mipa=jobs:8   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:896   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo(pass 2)   -fastsse   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mipa=jobs:8(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mconcur=noaltcode(pass 2)   -Mpfo(pass 2)   -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnodepchk   -Munroll=n:4   -Munroll=m:8   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -fast   -Mfprelaxed   -Msmartalloc=huge:896   --zc_eh   -Mnovect   -alias=ansi   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  -fastsse   -Mloop32   -Mfprelaxed   -Msmartalloc   -Mprefetch=distance:12   -Mprefetch=nta   -Mconcur   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  basepeak = yes
434.zeusmp:  -fast   -Mloop32   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -fast   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Mconcur=noaltcode   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  basepeak = yes
465.tonto:  -fast   -O4   -Mfprelaxed   -Msmartalloc=huge:896   -Mprefetch=distance:8   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mvect=noaltcode   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -fast   -Mconcur   -Mfpapprox=rsqrt   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:896   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -fastsse   -Mfprelaxed   -Mconcur   -Msmartalloc   -Mdse   -Mipa=jobs:8   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Fortran benchmarks:

 -w

Benchmarks using both Fortran and C:

 -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-PGI72-PS32-flags.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 18:37:58 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 15 April 2008.
