SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/120Bb-m6
(Intel Xeon L5420)

SPECint®_rate2006 = 116

CPU2006 license: 9006 Test date: Apr-2008
Test sponsor: NEC Corporation Hardware Availability: Apr-2008
Tested by: NEC Corporation Software Availability: Nov-2007

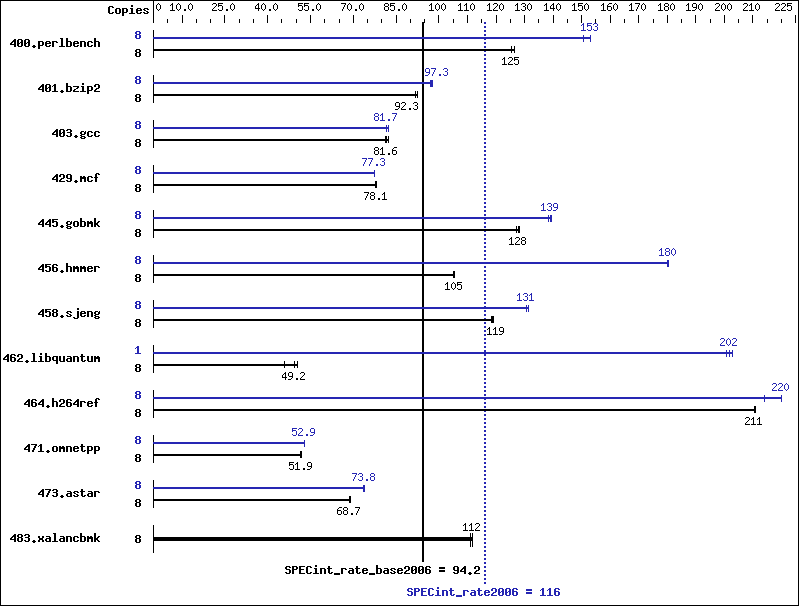

Benchmark results graph
Hardware
CPU Name: Intel Xeon L5420
CPU Characteristics: 2.50 GHz, 2x6 MB L2 shared, 1333 MHz bus
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 12 MB I+D on chip per chip, 6 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (12x1 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 1x73.2 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.1 Build 20070913 Package ID:
l_cc_p_10.1.008
Auto Parallel: Yes
File System: ext2
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 623 125   624 125   618 126   8 518 151   511 153   510 153
401.bzip2 8 842 91.7 836 92.3 836 92.4 8 793 97.3 796 97.0 789 97.8
403.gcc 8 789 81.6 793 81.2 782 82.3 8 790 81.5 783 82.2 788 81.7
429.mcf 8 939 77.7 935 78.1 933 78.2 8 943 77.4 944 77.3 944 77.3
445.gobmk 8 657 128   655 128   659 127   8 603 139   602 139   607 138
456.hmmer 8 709 105   709 105   709 105   8 414 180   414 180   414 180
458.sjeng 8 816 119   818 118   813 119   8 741 131   740 131   737 131
462.libquantum 8 3618 45.8 3366 49.2 3294 50.3 1 102 203   103 201   103 202
464.h264ref 8 840 211   840 211   841 211   8 828 214   805 220   804 220
471.omnetpp 8 968 51.7 963 51.9 961 52.0 8 945 52.9 945 52.9 946 52.9
473.astar 8 819 68.6 814 69.0 818 68.7 8 761 73.8 762 73.7 760 73.9
483.xalancbmk 8 497 111   494 112   494 112   8 497 111   494 112   494 112

Compiler Invocation Notes

  OMP_NUM_THREADS set to number of cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

General Notes

All benchmarks compiled in 32-bit mode except 401.bzip2,
456.hmmer, for peak, are compiled in 64-bit mode

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include
456.hmmer:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-INT-ia32-linux-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-INT-ia32-linux-flags.20090714.xml.
