SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3655 (AMD Opteron 2356)

SPECint®2006 = 13.9

CPU2006 license: 11 Test date: Apr-2008
Test sponsor: IBM Corporation Hardware Availability: Jul-2008
Tested by: Advanced Micro Devices Software Availability: May-2008

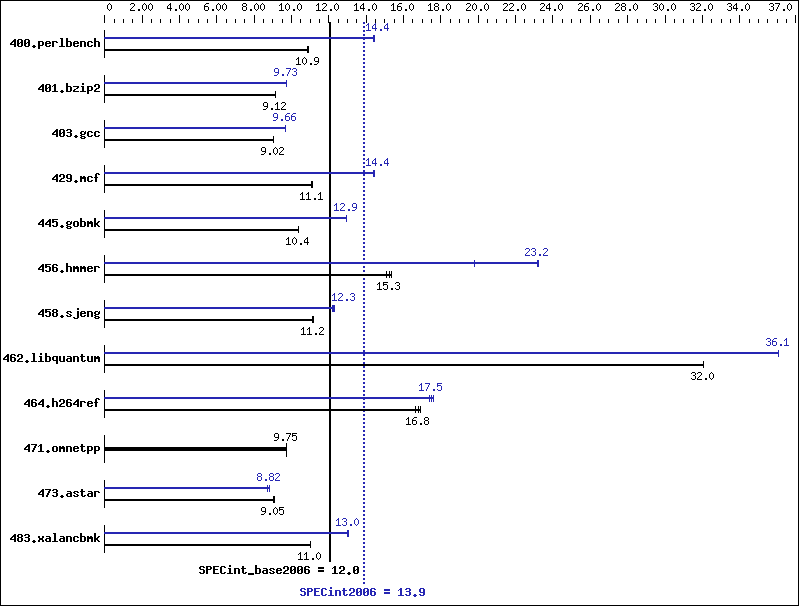

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2356
CPU Characteristics:
CPU MHz: 2300
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (8 x 2 GB, DDR2-667, CL5, Reg, Dual Rank)
Disk Subsystem: 1 x 73.4 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.1
Auto Parallel: No
File System: ext3
System State: Runlevel 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.0 32-bit Library for Linux

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 896 10.9  896 10.9  898 10.9  678 14.4  679 14.4  676 14.5
401.bzip2 1058 9.12 1058 9.12 1058 9.12 992 9.73 992 9.72 992 9.73
403.gcc 893 9.02 893 9.02 893 9.01 833 9.67 834 9.66 834 9.65
429.mcf 821 11.1  822 11.1  822 11.1  632 14.4  633 14.4  633 14.4
445.gobmk 1009 10.4  1010 10.4  1010 10.4  811 12.9  811 12.9  810 13.0
456.hmmer 618 15.1  611 15.3  607 15.4  402 23.2  472 19.8  402 23.2
458.sjeng 1084 11.2  1081 11.2  1085 11.1  984 12.3  987 12.3  990 12.2
462.libquantum 647 32.0  647 32.0  646 32.1  575 36.1  575 36.1  574 36.1
464.h264ref 1329 16.6  1317 16.8  1307 16.9  1255 17.6  1274 17.4  1263 17.5
471.omnetpp 641 9.75 643 9.71 641 9.75 641 9.75 643 9.71 641 9.75
473.astar 776 9.05 777 9.03 774 9.06 803 8.74 795 8.82 794 8.85
483.xalancbmk 626 11.0  626 11.0  626 11.0  529 13.0  528 13.1  530 13.0

Operating System Notes

 'numactl' was used to bind copies to the cores
 Environment variable PGI_HUGE_PAGES set to 150
 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2457600' was used to set environment locked pages in memory quantity
 Set vm/nr_hugepages=1200 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages
 powersave -f was used to set the CPU frequency to its maximum.

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mfprelaxed   -Msmartalloc=huge:150   --zc_eh   -tp barcelona   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -w

C++ benchmarks:

 -w

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
400.perlbench:  pathcc
403.gcc:  pathcc
445.gobmk:  pathcc

C++ benchmarks (except as noted below):

 pathCC
471.omnetpp:  pgcpp

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -WOPT:if_conv=0   -CG:local_sched_alg=1
401.bzip2:  -Mpfi(pass 1)   -Mpfo(pass 2)   -fast   -O4   -Msmartalloc=huge:150   -Mnounroll   -tp barcelona-64   -Bstatic_pgi
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -fastsse   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline:1   -Msmartalloc=huge:150   -tp barcelona   -Bstatic_pgi
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -LNO:opt=0   -CG:p2align=on
456.hmmer:  -fastsse   -Munroll=n:8   -Msmartalloc=huge:150   -Mfprelaxed   -Mvect=partial   -Msafeptr   -Mipa=jobs:4   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:1(pass 2)   -Mipa=noarg(pass 2)   -Mpfo(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
462.libquantum:  -fastsse   -Mfprelaxed   -Msmartalloc=huge:150   -Munroll=m:8   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -tp barcelona-64   -Bstatic_pgi
464.h264ref:  -Mpfi=indirect(pass 1)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mpfo=indirect(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -march=barcelona   -Ofast   -TENV:frame_pointer=off   -WOPT:if_conv=0   -GRA:optimize_boundary=on   -IPA:plimit=525   -m32   -lsmartheap
483.xalancbmk:  -march=barcelona   -Ofast   -m32   -OPT:unroll_times_max=8   -CG:push_pop_int_saved_regs=off   -CG:ptr_load_use=0   -lsmartheap

Peak Other Flags

C benchmarks (except as noted below):

 -w
400.perlbench:  No flags used
403.gcc:  No flags used
445.gobmk:  No flags used

C++ benchmarks (except as noted below):

 -L/root/work/cpu2006/amd123GH.libs/32
471.omnetpp:  -w

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.03.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/amd123GH-flags.20090714.03.xml.
