SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R630
(Intel Xeon X5355,2.66GHz)

CPU2006 license: 20 Test date: Apr-2008
Test sponsor: Bull SAS Hardware Availability: Oct-2007
Tested by: NEC Corporation Software Availability: Feb-2008

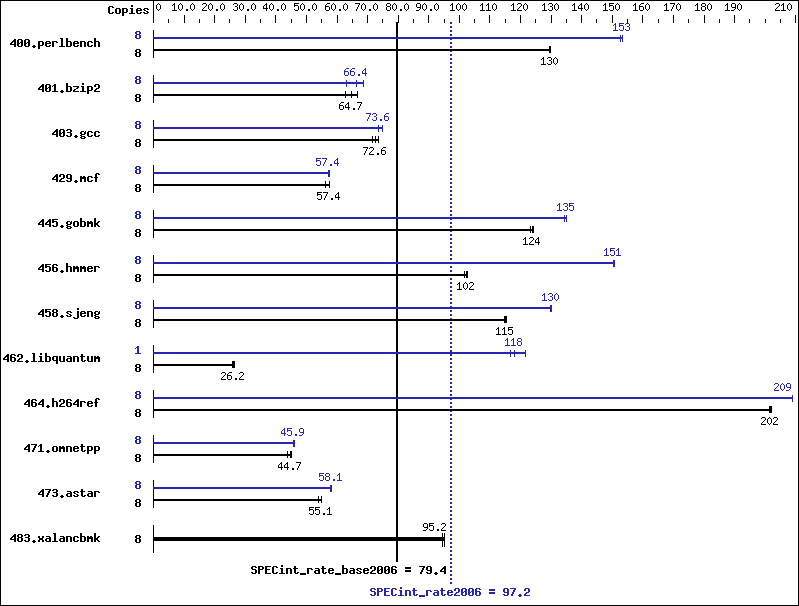

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: 2.66 GHz, 2x4 MB L2 shared, 1333 MHz bus
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 12 GB (6x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC)
Disk Subsystem: 2x73.2 GB SAS, 15000RPM, Software RAID Level1
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux AS release 4 (
Update 5),
Kernel 2.6.9-55.0.12.ELsmp on an X86_64
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.1 Build 20070913 Package ID:
l_cc_p_10.1.008
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap library 8.1
binutils-2.17.tar.gz, Version 2.17
ft Server Control Software 5.0-0231

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 601 130   603 130   603 130   8 512 153   510 153   510 153
401.bzip2 8 1230 62.8 1193 64.7 1159 66.6 8 1221 63.3 1123 68.7 1162 66.4
403.gcc 8 898 71.7 888 72.6 874 73.7 8 876 73.5 875 73.6 858 75.0
429.mcf 8 1297 56.3 1269 57.5 1270 57.4 8 1273 57.3 1271 57.4 1272 57.4
445.gobmk 8 681 123   678 124   675 124   8 625 134   621 135   621 135
456.hmmer 8 735 102   729 102   728 103   8 497 150   496 151   496 151
458.sjeng 8 840 115   843 115   840 115   8 744 130   746 130   745 130
462.libquantum 8 6393 25.9 6320 26.2 6296 26.3 1 176 118   177 117   170 122
464.h264ref 8 878 202   878 202   877 202   8 847 209   847 209   848 209
471.omnetpp 8 1144 43.7 1118 44.7 1111 45.0 8 1090 45.9 1089 45.9 1087 46.0
473.astar 8 1042 53.9 1020 55.1 1020 55.1 8 967 58.1 967 58.1 968 58.0
483.xalancbmk 8 584 94.5 580 95.2 580 95.2 8 584 94.5 580 95.2 580 95.2

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
  OMP_NUM_THREADS set to number of cores

Platform Notes

This Express5800/320Fc-MR is a fault-tolerant server.
Two modules are installed in this server and each module has "2CPU chips,12GB memory",
so total "4CPU chips,24GB memory" are on this server.
With lockstep technology, these two modules communicate each other
and handle the same instructions at the same time,
then logically the "CPU,Memory" is recognized as "2CPU chips,12GB memory" by the OS.

General Notes

All benchmarks compiled in 32-bit mode except 401.bzip2,
456.hmmer, for peak, are compiled in 64-bit mode

 The NEC Express5800/320Fc-MR(Intel Xeon X5355) and
 the Bull NovaScale R630 (Intel Xeon X5355,2.66GHz) models are electronically equivalent.
 The results have been measured on a NEC Express5800/320Fc-MR(Intel Xeon X5355) model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -inline-calloc   -opt-malloc-options=3

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include
456.hmmer:  /opt/intel/cce/10.1.008/bin/icc   -L/opt/intel/cce/10.1.008/lib   -I/opt/intel/cce/10.1.008/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -prefetch
403.gcc:  -fast   -inline-calloc   -opt-malloc-options=3
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -fast   -unroll2   -ansi-alias   -opt-multi-version-aggressive
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always   -vec-guard-write   -opt-malloc-options=3   -parallel   -par-runtime-control
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-INT-ia32-linux-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/NEC-Intel-ic10.1-INT-ia32-linux-flags.xml.
