SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS V840, AMD Opteron 2354 (2.2 GHz)

CPU2006 license: 22 Test date: May-2008
Test sponsor: Fujitsu Siemens Computers Hardware Availability: May-2008
Tested by: Fujitsu Siemens Computers Software Availability: May-2008

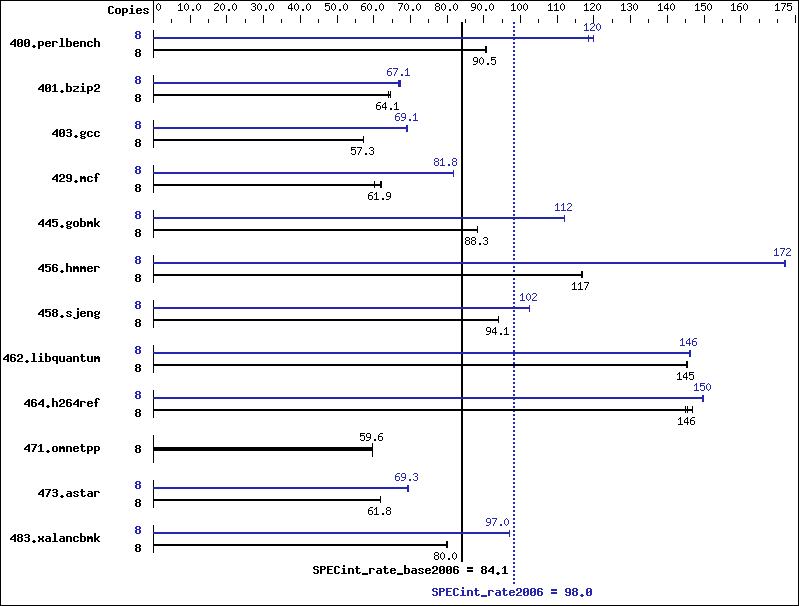

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2354
CPU Characteristics:
CPU MHz: 2200
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 2 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (8x2GB PC2-5300P, CL5, dual rank ECC)
Disk Subsystem: 1 x 400 GB SATA II, 7200 rpm
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Workstation Complete Version 7.2-1
PathScale Compiler Suite, Release 3.2 Beta
Auto Parallel: No
File System: ext3
System State: Multi-User SuSE Run Level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18.50
Microquill SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 864 90.5 862 90.6 864 90.5 8 660 118   652 120   652 120
401.bzip2 8 1194 64.6 1205 64.1 1204 64.1 8 1158 66.7 1150 67.1 1147 67.3
403.gcc 8 1124 57.3 1126 57.2 1124 57.3 8 931 69.2 932 69.1 933 69.0
429.mcf 8 1211 60.2 1178 61.9 1176 62.1 8 893 81.7 892 81.8 892 81.8
445.gobmk 8 951 88.3 952 88.2 951 88.3 8 749 112   748 112   749 112
456.hmmer 8 639 117   639 117   639 117   8 434 172   433 172   434 172
458.sjeng 8 1029 94.1 1029 94.1 1029 94.1 8 945 102   945 102   945 102
462.libquantum 8 1142 145   1140 145   1141 145   8 1134 146   1134 146   1133 146
464.h264ref 8 1221 145   1216 146   1206 147   8 1183 150   1182 150   1181 150
471.omnetpp 8 839 59.6 838 59.6 839 59.6 8 839 59.6 838 59.6 839 59.6
473.astar 8 910 61.7 909 61.8 909 61.8 8 810 69.3 810 69.3 809 69.4
483.xalancbmk 8 689 80.2 690 80.0 690 80.0 8 570 96.9 569 97.0 569 97.1

Operating System Notes

 powersave -f is applied to set CPU to maximum frequency prior to run
 stacksize is set to unlimited prior to run
 ulimit -l 2457600
 PGI_HUGE_PAGES set to 150
 (Total number of huge pages available is 1200)

General Notes



The command numactl has been used to bind processes to CPUs

For information about Fujitsu Siemens Computers please see:
http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   --zc_eh   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -tp barcelona   -Bstatic_pgi

Peak Compiler Invocation

C benchmarks (except as noted below):

 pgcc
400.perlbench:  pathcc
403.gcc:  pathcc
445.gobmk:  pathcc
464.h264ref:  pathcc

C++ benchmarks (except as noted below):

 pgcpp
483.xalancbmk:  pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -IPA:plimit=20000   -LNO:opt=0   -WOPT:if_conv=0   -CG:local_sched_alg=1
401.bzip2:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -fastsse   -O4   -Msmartalloc=huge:150   -Mprefetch=t0   -Mnounroll   -tp barcelona-64   -Bstatic_pgi
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -m32
429.mcf:  -fastsse   -Msmartalloc=huge:150   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline:1   -tp barcelona   -Bstatic_pgi
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=restrict   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on
456.hmmer:  -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge:150   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=jobs:4   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
458.sjeng:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:1(pass 2)   -Mipa=noarg(pass 2)   -fastsse   -Msmartalloc=huge:150   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
462.libquantum:  -fastsse   -Munroll=m:8   -Msmartalloc=huge:150   -Mprefetch=distance:4   -Mfprelaxed   -Mipa=jobs:4   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -tp barcelona-64   -Bstatic_pgi
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=jobs:4(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -fastsse   -O4   -Msmartalloc=huge:150   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp barcelona   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -OPT:unroll_times_max=8   -CG:push_pop_int_saved_regs=off   -CG:ptr_load_use=0   -m32   -lsmartheap

Peak Other Flags

C++ benchmarks:

483.xalancbmk:  -L/opt/SmartHeap_8.1/lib

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/fsc-mix-pgi-path.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/fsc-mix-pgi-path.xml.
