| CPU2006 license: | 19 | Test date: | Jul-2008 |
|---|---|---|---|
| Test sponsor: | Fujitsu Limited | Hardware Availability: | Jul-2008 |
| Tested by: | Sun Microsystems | Software Availability: | Jul-2008 |
| Hardware | |
|---|---|
| CPU Name: | SPARC64 VII |
| CPU Characteristics: | |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 to 2 CPUM; each CPUM contains 2 CPU chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 5 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 64 GB (32 x 2 GB) |
| Disk Subsystem: | Seagate 73GB 10000 RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Solaris 10 5/08 with patch 137111-03 |
| Compiler: | Sun Studio 12 with patches 124867-06, 124861-07, 124863-05 (see patch information below) |
| Auto Parallel: | No |
| File System: | ufs |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

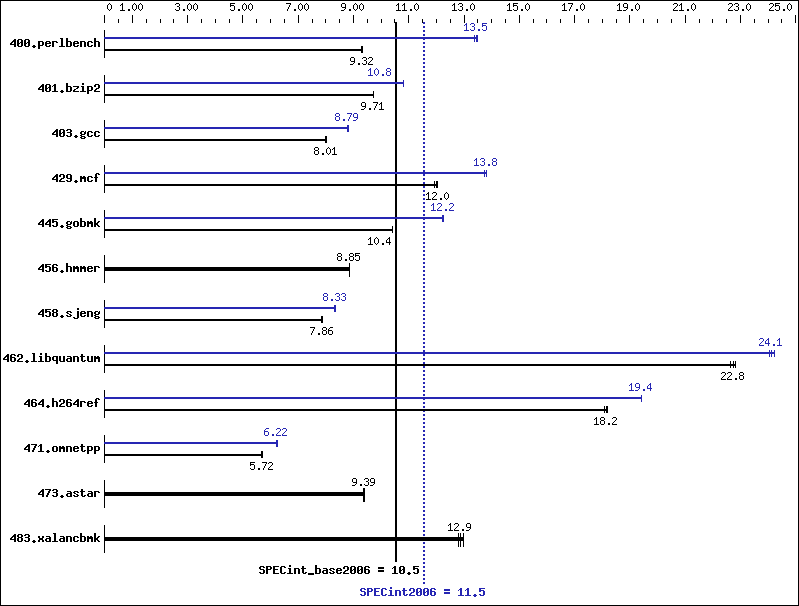

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 1053 | 9.27 | 1048 | 9.32 | 1048 | 9.32 | 726 | 13.5 | 725 | 13.5 | 731 | 13.4 |
| 401.bzip2 | 994 | 9.71 | 994 | 9.71 | 992 | 9.73 | 894 | 10.8 | 893 | 10.8 | 893 | 10.8 |
| 403.gcc | 1003 | 8.02 | 1007 | 7.99 | 1005 | 8.01 | 914 | 8.80 | 916 | 8.79 | 917 | 8.78 |
| 429.mcf | 758 | 12.0 | 764 | 11.9 | 759 | 12.0 | 663 | 13.7 | 660 | 13.8 | 660 | 13.8 |
| 445.gobmk | 1008 | 10.4 | 1009 | 10.4 | 1009 | 10.4 | 856 | 12.3 | 858 | 12.2 | 857 | 12.2 |
| 456.hmmer | 1054 | 8.85 | 1054 | 8.85 | 1054 | 8.85 | 1054 | 8.85 | 1054 | 8.85 | 1054 | 8.85 |
| 458.sjeng | 1537 | 7.87 | 1542 | 7.85 | 1539 | 7.86 | 1452 | 8.33 | 1452 | 8.33 | 1454 | 8.32 |
| 462.libquantum | 915 | 22.6 | 910 | 22.8 | 908 | 22.8 | 861 | 24.1 | 859 | 24.1 | 855 | 24.2 |
| 464.h264ref | 1217 | 18.2 | 1219 | 18.2 | 1223 | 18.1 | 1140 | 19.4 | 1139 | 19.4 | 1140 | 19.4 |
| 471.omnetpp | 1104 | 5.66 | 1092 | 5.72 | 1093 | 5.72 | 1005 | 6.22 | 1002 | 6.24 | 1006 | 6.21 |
| 473.astar | 747 | 9.40 | 749 | 9.37 | 747 | 9.39 | 747 | 9.40 | 749 | 9.37 | 747 | 9.39 |
| 483.xalancbmk | 539 | 12.8 | 532 | 13.0 | 536 | 12.9 | 539 | 12.8 | 532 | 13.0 | 536 | 12.9 |
Compiler Invocation Notes
Sun Studio compiler patches are available at
http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp
Operating System Notes
Environment Variable Settings:
ulimit -s 131072 was used to limit the space consumed
by the stack (making more space available for the heap)
System Tunables (/etc/system parameters):
tune_t_fsflushr=10
Controls how many seconds elapse between runs of the
page flush daemon, fsflush.
autoup=600
Causes pages older than the listed number of seconds to
be written by fsflush.
bufhwm=3000
Memory byte limit for caching I/O buffers
segmap_percent=1
Set maximum percent memory for file system cache
Other System Settings:
The webconsole service was turned off using
svcadm disable webconsole
Platform Notes
Memory is 8-way interleaved by filling all slots with the same capacity DIMMs. This result is measured on a Sun SPARC Enterprise M4000 Server. Note that the Sun SPARC Enterprise M4000 and Fujitsu SPARC Enterprise M4000 are electrically equivalent.
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Base Optimization Flags
C benchmarks:
| -fast -fma=fused -xipo=2 -xpagesize=4M -xprefetch_level=1 -xalias_level=std -ll2amm |
C++ benchmarks:
| -xdepend -library=stlport4 -fast -fma=fused -xipo=2 -xpagesize=4M -xprefetch_level=2 -xalias_level=compatible -lfast |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_SOLARIS_SPARC |
| 403.gcc: | -DSPEC_CPU_SOLARIS |
| 462.libquantum: | -DSPEC_CPU_SOLARIS |
| 483.xalancbmk: | -DSPEC_CPU_SOLARIS |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | -xdepend -library=stlport4 -xprofile=collect:./feedback(pass 1) -xprofile=use:./feedback(pass 2) -fast -xpagesize=4M -fma=fused -xalias_level=compatible -xipo=2 -xprefetch_level=2 -Qoption cg -Qlp-av=0 -lfast |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | basepeak = yes |
