SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Limited

Fujitsu SPARC Enterprise M8000

SPECint®2006 = 11.9

CPU2006 license: 19 Test date: Jul-2008
Test sponsor: Fujitsu Limited Hardware Availability: Jul-2008
Tested by: Sun Microsystems Software Availability: Jul-2008

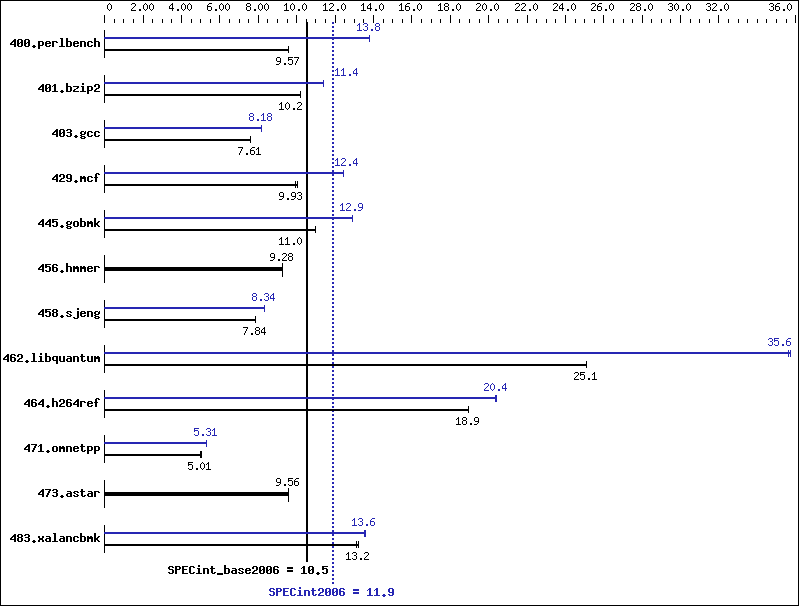

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2520
FPU: Integrated
CPU(s) enabled: 64 cores, 16 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 256 GB (128 x 2 GB)
Disk Subsystem: Fujitsu 73 GB 10000 RPM SAS
Other Hardware: None
Software
Operating System: Solaris 10 5/08 with Patch 137111-03
Compiler: Sun Studio 12 with patches
124867-06, 124861-07, 124863-05
(see patch information below)
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 1021 9.57 1021 9.57 1021 9.57 709 13.8  708 13.8  709 13.8
401.bzip2 944 10.2  946 10.2  944 10.2  848 11.4  848 11.4  848 11.4
403.gcc 1060 7.59 1058 7.61 1058 7.61 984 8.18 984 8.18 984 8.18
429.mcf 908 10.0  918 9.93 919 9.93 734 12.4  734 12.4  734 12.4
445.gobmk 956 11.0  955 11.0  956 11.0  812 12.9  812 12.9  812 12.9
456.hmmer 1006 9.27 1006 9.28 1006 9.28 1006 9.27 1006 9.28 1006 9.28
458.sjeng 1543 7.84 1543 7.84 1541 7.85 1451 8.34 1451 8.34 1452 8.33
462.libquantum 826 25.1  826 25.1  826 25.1  580 35.7  581 35.6  582 35.6
464.h264ref 1169 18.9  1168 18.9  1168 18.9  1086 20.4  1086 20.4  1085 20.4
471.omnetpp 1243 5.03 1247 5.01 1247 5.01 1177 5.31 1177 5.31 1180 5.30
473.astar 735 9.56 734 9.56 734 9.56 735 9.56 734 9.56 734 9.56
483.xalancbmk 522 13.2  526 13.1  522 13.2  510 13.5  507 13.6  509 13.6

Compiler Invocation Notes

Sun Studio compiler patches are available at
    http://developers.sun.com/sunstudio/downloads/patches/ss12_patches.jsp

Submit Notes


Processes were assigned to specific processors using 'pbind' commands.  The
config file option 'submit' was used, along with a processor to use in the
'BIND' variable, to generate the pbind commands.  (For details, please see
the config file.)

Operating System Notes


System Tunables (/etc/system parameters):

tune_t_fsflushr=10
    Controls how many seconds elapse between runs of the
    page flush daemon, fsflush.
autoup=300
    Causes pages older than the listed number of seconds to
    be written by fsflush.
bufhwm=3000
    Memory byte limit for caching I/O buffers
segmap_percent=3
    Set maximum percent memory for file system cache
lpg_alloc_prefer=1
    Set lgroup page allocation to strongly prefer local pages

Other System Settings:

The webconsole service was turned off using
    svcadm disable webconsole

Platform Notes


Memory is 8-way interleaved by filling all slots with
the same capacity DIMMs.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=std   -ll2amm

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=compatible   -lfast

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xalias_level=std   -xipo=2   -xprefetch_level=2   -xrestrict   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=strong   -fma=fused
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -fma=fused   -ll2amm
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xprefetch_level=3   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -Wc,-Qlp-prt=1   -Wc,-Qlp-prwt=3
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=std   -xrestrict   -fma=fused
456.hmmer:  basepeak = yes
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xchip=ultra3cu
462.libquantum:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xchip=ultra3cu   -xprefetch_level=2
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -fma=fused   -lfast
473.astar:  basepeak = yes
483.xalancbmk:  -xdepend   -library=stlport4   -fast   -xpagesize=4M   -xalias_level=compatible   -xipo=2   -xprefetch=no   -fma=fused   -lfast

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-and-gccfss4.2.20090713.00.xml.
