| CPU2006 license: | 20 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7330 |
| CPU Characteristics: | 1066 MHz system bus |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
| CPU(s) orderable: | 1 to 4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x146 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE LINUX Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

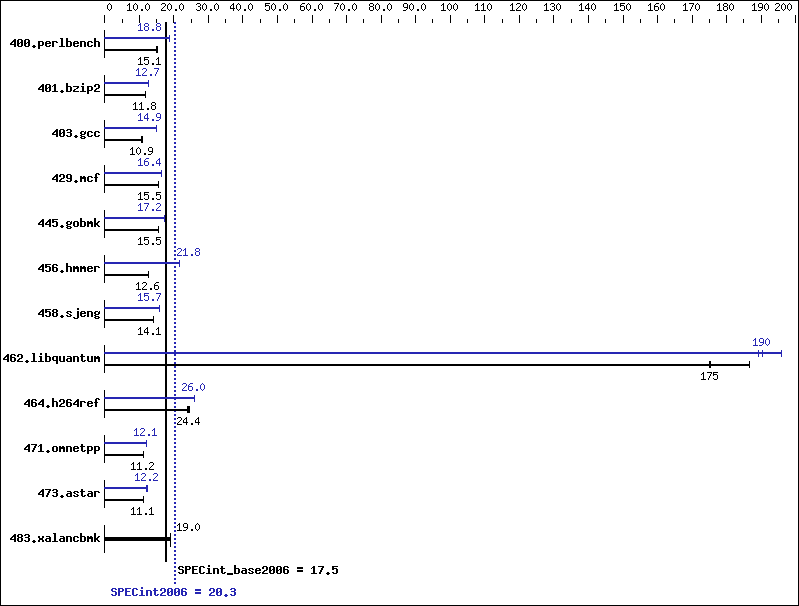

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 645 | 15.1 | 645 | 15.2 | 648 | 15.1 | 520 | 18.8 | 521 | 18.8 | 518 | 18.9 |
| 401.bzip2 | 819 | 11.8 | 814 | 11.9 | 822 | 11.7 | 758 | 12.7 | 757 | 12.7 | 755 | 12.8 |
| 403.gcc | 759 | 10.6 | 733 | 11.0 | 738 | 10.9 | 540 | 14.9 | 542 | 14.9 | 539 | 14.9 |
| 429.mcf | 587 | 15.5 | 588 | 15.5 | 588 | 15.5 | 555 | 16.4 | 557 | 16.4 | 556 | 16.4 |
| 445.gobmk | 679 | 15.5 | 679 | 15.5 | 679 | 15.5 | 609 | 17.2 | 609 | 17.2 | 609 | 17.2 |
| 456.hmmer | 742 | 12.6 | 742 | 12.6 | 742 | 12.6 | 429 | 21.8 | 429 | 21.7 | 428 | 21.8 |
| 458.sjeng | 857 | 14.1 | 860 | 14.1 | 866 | 14.0 | 770 | 15.7 | 769 | 15.7 | 768 | 15.8 |
| 462.libquantum | 111 | 187 | 118 | 175 | 118 | 175 | 106 | 196 | 109 | 189 | 109 | 190 |
| 464.h264ref | 909 | 24.4 | 919 | 24.1 | 899 | 24.6 | 850 | 26.0 | 852 | 26.0 | 854 | 25.9 |
| 471.omnetpp | 558 | 11.2 | 558 | 11.2 | 557 | 11.2 | 515 | 12.1 | 515 | 12.1 | 515 | 12.1 |
| 473.astar | 631 | 11.1 | 630 | 11.1 | 630 | 11.1 | 574 | 12.2 | 574 | 12.2 | 579 | 12.1 |
| 483.xalancbmk | 364 | 19.0 | 364 | 19.0 | 364 | 18.9 | 364 | 19.0 | 364 | 19.0 | 364 | 18.9 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to null
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode BIOS settings : Hardware Prefetcher : Enabled Adjacent Cache-Line Prefetch : Enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -vec-guard-write -parallel -par-runtime-control |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch -auto-ilp32 |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
