| CPU2006 license: | 13 | Test date: | Aug-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5470 |
| CPU Characteristics: | |
| CPU MHz: | 3333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2GB Samsung DDR2 5300F,2 rank, CL5-5-5, ECC) |
| Disk Subsystem: | 1x HP 36.4 GB ULTRA320 SCSI, 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSe Linux SLES10 SP2 |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

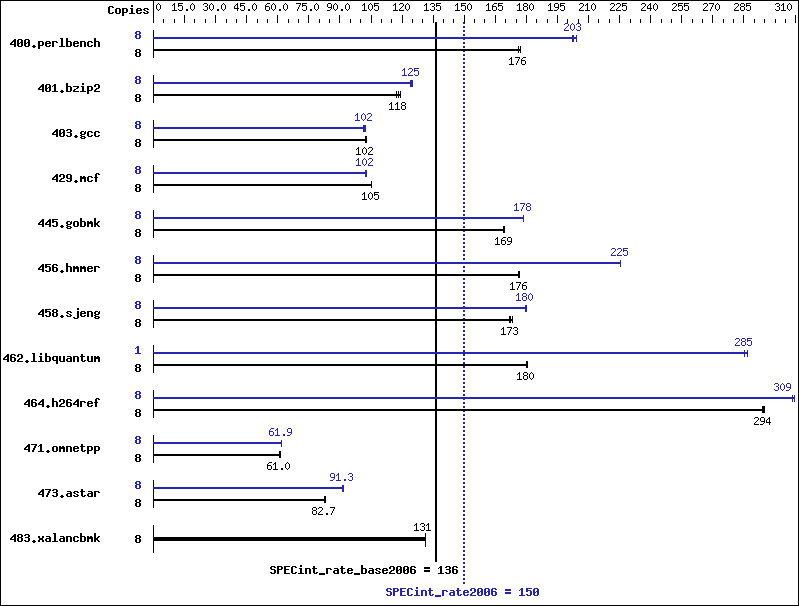

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 443 | 176 | 443 | 176 | 442 | 177 | 8 | 385 | 203 | 383 | 204 | 387 | 202 |
| 401.bzip2 | 8 | 652 | 118 | 659 | 117 | 648 | 119 | 8 | 618 | 125 | 623 | 124 | 620 | 125 |
| 403.gcc | 8 | 626 | 103 | 629 | 102 | 629 | 102 | 8 | 632 | 102 | 631 | 102 | 635 | 101 |
| 429.mcf | 8 | 694 | 105 | 694 | 105 | 694 | 105 | 8 | 712 | 102 | 712 | 102 | 711 | 103 |
| 445.gobmk | 8 | 496 | 169 | 496 | 169 | 496 | 169 | 8 | 470 | 178 | 470 | 178 | 470 | 179 |
| 456.hmmer | 8 | 423 | 176 | 422 | 177 | 423 | 176 | 8 | 331 | 225 | 331 | 225 | 331 | 226 |
| 458.sjeng | 8 | 563 | 172 | 561 | 173 | 559 | 173 | 8 | 539 | 180 | 539 | 180 | 538 | 180 |
| 462.libquantum | 8 | 919 | 180 | 922 | 180 | 922 | 180 | 1 | 72.3 | 287 | 72.6 | 285 | 72.7 | 285 |
| 464.h264ref | 8 | 602 | 294 | 602 | 294 | 601 | 295 | 8 | 573 | 309 | 572 | 309 | 574 | 308 |
| 471.omnetpp | 8 | 819 | 61.0 | 819 | 61.1 | 819 | 61.0 | 8 | 807 | 61.9 | 807 | 61.9 | 807 | 62.0 |
| 473.astar | 8 | 679 | 82.7 | 682 | 82.3 | 676 | 83.0 | 8 | 613 | 91.7 | 615 | 91.3 | 615 | 91.2 |
| 483.xalancbmk | 8 | 420 | 132 | 420 | 131 | 420 | 131 | 8 | 420 | 132 | 420 | 131 | 420 | 131 |
Submit Notes
The config file option 'submit' was used.
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode taskset was used to bind processes to cores except for 462.libquantum peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
