CPU2006 license: | 6 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Sun Microsystems | Hardware Availability: | Sep-2008 |
Tested by: | Sun Microsystems | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7450 |
CPU Characteristics: | |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 4 chips, 6 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 9 MB I+D on chip per chip, 3 MB shared / 2 cores |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 32 GB (16x2 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | Compact Flash, 16 GB for Linux SAS, 72 GB,10 K RPM via NFS for SPEC CPU2006 |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042, l_fproc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | (See additional details below) |
System State: | Multi-user, run level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

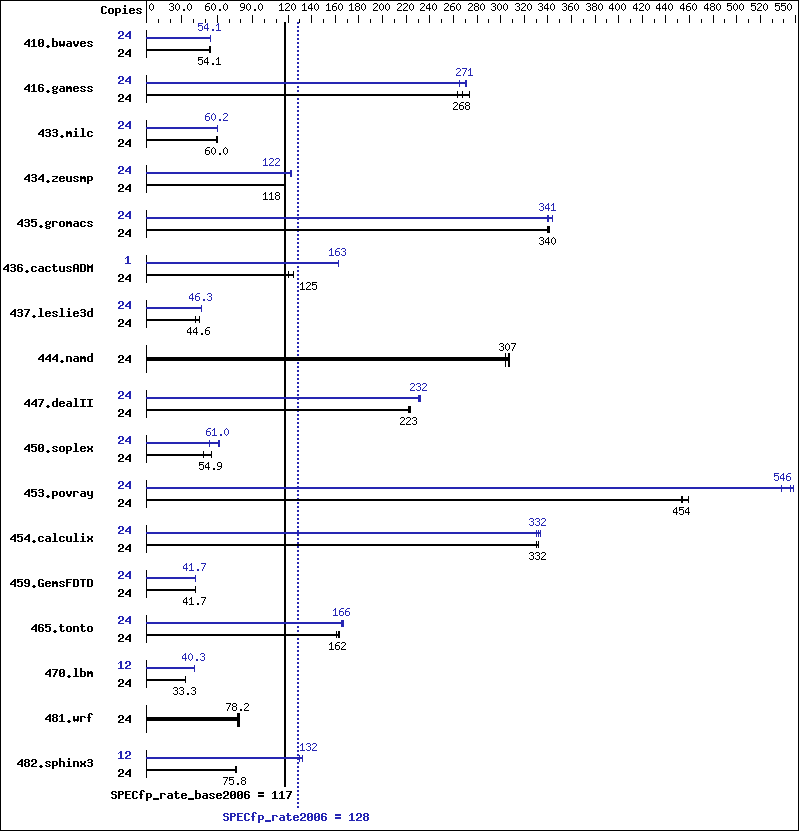

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 24 | 6103 | 53.4 | 6026 | 54.1 | 6034 | 54.1 | 24 | 6035 | 54.0 | 6030 | 54.1 | 6032 | 54.1 |
416.gamess | 24 | 1756 | 268 | 1784 | 263 | 1717 | 274 | 24 | 1773 | 265 | 1737 | 271 | 1733 | 271 |
433.milc | 24 | 3729 | 59.1 | 3672 | 60.0 | 3670 | 60.0 | 24 | 3666 | 60.1 | 3662 | 60.2 | 3662 | 60.2 |
434.zeusmp | 24 | 1860 | 117 | 1852 | 118 | 1857 | 118 | 24 | 1789 | 122 | 1787 | 122 | 1783 | 123 |
435.gromacs | 24 | 502 | 341 | 504 | 340 | 504 | 340 | 24 | 505 | 340 | 503 | 341 | 498 | 344 |
436.cactusADM | 24 | 2391 | 120 | 2303 | 125 | 2302 | 125 | 1 | 73.5 | 163 | 73.6 | 162 | 73.5 | 163 |
437.leslie3d | 24 | 5489 | 41.1 | 5062 | 44.6 | 5046 | 44.7 | 24 | 4878 | 46.3 | 4878 | 46.2 | 4875 | 46.3 |
444.namd | 24 | 633 | 304 | 626 | 308 | 628 | 307 | 24 | 633 | 304 | 626 | 308 | 628 | 307 |
447.dealII | 24 | 1237 | 222 | 1227 | 224 | 1233 | 223 | 24 | 1185 | 232 | 1190 | 231 | 1183 | 232 |
450.soplex | 24 | 4173 | 48.0 | 3645 | 54.9 | 3629 | 55.2 | 24 | 3766 | 53.2 | 3281 | 61.0 | 3247 | 61.6 |
453.povray | 24 | 281 | 454 | 278 | 459 | 282 | 453 | 24 | 237 | 538 | 234 | 546 | 233 | 548 |
454.calculix | 24 | 596 | 332 | 596 | 332 | 599 | 330 | 24 | 596 | 332 | 594 | 333 | 599 | 331 |
459.GemsFDTD | 24 | 6123 | 41.6 | 6108 | 41.7 | 6104 | 41.7 | 24 | 6101 | 41.7 | 6111 | 41.7 | 6099 | 41.8 |
465.tonto | 24 | 1444 | 164 | 1456 | 162 | 1466 | 161 | 24 | 1430 | 165 | 1420 | 166 | 1413 | 167 |
470.lbm | 24 | 9952 | 33.1 | 9903 | 33.3 | 9904 | 33.3 | 12 | 4097 | 40.2 | 4087 | 40.3 | 4088 | 40.3 |
481.wrf | 24 | 3495 | 76.7 | 3421 | 78.4 | 3429 | 78.2 | 24 | 3495 | 76.7 | 3421 | 78.4 | 3429 | 78.2 |
482.sphinx3 | 24 | 6199 | 75.5 | 6170 | 75.8 | 6153 | 76.0 | 12 | 1804 | 130 | 1766 | 132 | 1775 | 132 |
The config file option 'submit' was used. For peak modules using 1/2 the number of available cores, each copy was assigned to a single L2 cache using mysubmit.pl script. See the flags description file for mysubmit.pl details.
taskset was used to bind processes to cores except for 436.cactusADM peak NFS for file system: Sun Fire X4440 with 1 x SAS,72 GB,10 K RPM both client and server use onboard ethernet ports connected to a 10/100 Ethernet switch. 'ulimit -s unlimited' was used to set the stacksize to unlimited OMP_NUM_THREADS set to number of cores. KMP_STACKSIZE set to 64M KMP_AFFINITY set to physical,0
Default BIOS configurations were used.
All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex and 482.sphinx3, at peak, are compiled in 32-bit mode
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | basepeak = yes |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
