CPU2006 license: | 22 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Sep-2008 |
Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E7430 |
CPU Characteristics: | 1067 MHz system bus |
CPU MHz: | 2133 |
FPU: | Integrated |
CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
CPU(s) orderable: | 1,2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
L3 Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 64 GB (16x4 GB PC2-5300F, 2 rank, CL5-5-5, ECC) |
Disk Subsystem: | 1x SAS, 73 GB, 15000 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 32-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap Library, Version 8.1 Binutils 2.18.50.0.7.20080502 |

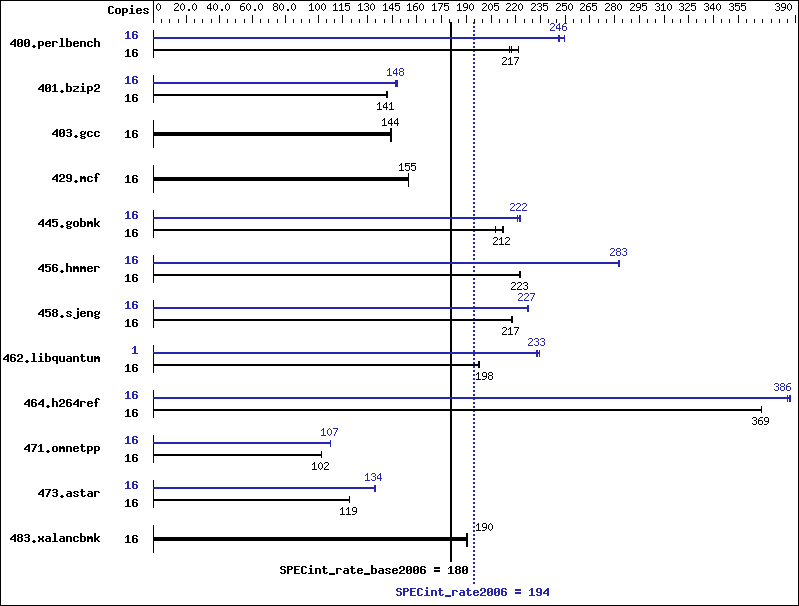

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 16 | 704 | 222 | 720 | 217 | 722 | 216 | 16 | 636 | 246 | 627 | 249 | 635 | 246 |
401.bzip2 | 16 | 1087 | 142 | 1093 | 141 | 1092 | 141 | 16 | 1049 | 147 | 1043 | 148 | 1047 | 148 |
403.gcc | 16 | 896 | 144 | 892 | 144 | 892 | 144 | 16 | 896 | 144 | 892 | 144 | 892 | 144 |
429.mcf | 16 | 942 | 155 | 942 | 155 | 942 | 155 | 16 | 942 | 155 | 942 | 155 | 942 | 155 |
445.gobmk | 16 | 793 | 212 | 809 | 208 | 790 | 212 | 16 | 755 | 222 | 754 | 223 | 758 | 221 |
456.hmmer | 16 | 670 | 223 | 670 | 223 | 671 | 223 | 16 | 527 | 283 | 527 | 283 | 528 | 283 |
458.sjeng | 16 | 889 | 218 | 891 | 217 | 891 | 217 | 16 | 851 | 227 | 850 | 228 | 853 | 227 |
462.libquantum | 16 | 1678 | 198 | 1678 | 198 | 1675 | 198 | 1 | 88.3 | 235 | 89.1 | 233 | 88.8 | 233 |
464.h264ref | 16 | 959 | 369 | 959 | 369 | 959 | 369 | 16 | 917 | 386 | 916 | 387 | 919 | 385 |
471.omnetpp | 16 | 982 | 102 | 983 | 102 | 980 | 102 | 16 | 932 | 107 | 930 | 107 | 930 | 108 |
473.astar | 16 | 942 | 119 | 944 | 119 | 942 | 119 | 16 | 838 | 134 | 834 | 135 | 836 | 134 |
483.xalancbmk | 16 | 581 | 190 | 580 | 190 | 580 | 190 | 16 | 581 | 190 | 580 | 190 | 580 | 190 |
All binaries were built with 32-bit mode except: 401.bzip2 and 456.hmmer in peak were built with 64-bit mode.
The config file option 'submit' was used. taskset has been used to bind processes to cores except for 462.libquantum peak
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores (default) KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
For information about Fujitsu Siemens Computers please see: http://www.fujitsu-siemens.com
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
icpc |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
403.gcc: | basepeak = yes |
429.mcf: | basepeak = yes |
445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
483.xalancbmk: | basepeak = yes |
