CPU2006 license: | 55 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X5470 |
CPU Characteristics: | |
CPU MHz: | 3333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (4x4GB 667 MHz ECC CL5 FB-DIMM) |
Disk Subsystem: | 1 x 73 GB 15000 RPM SAS, 1 x 73 GB 10000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cc_b_11.0.042, l_fc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

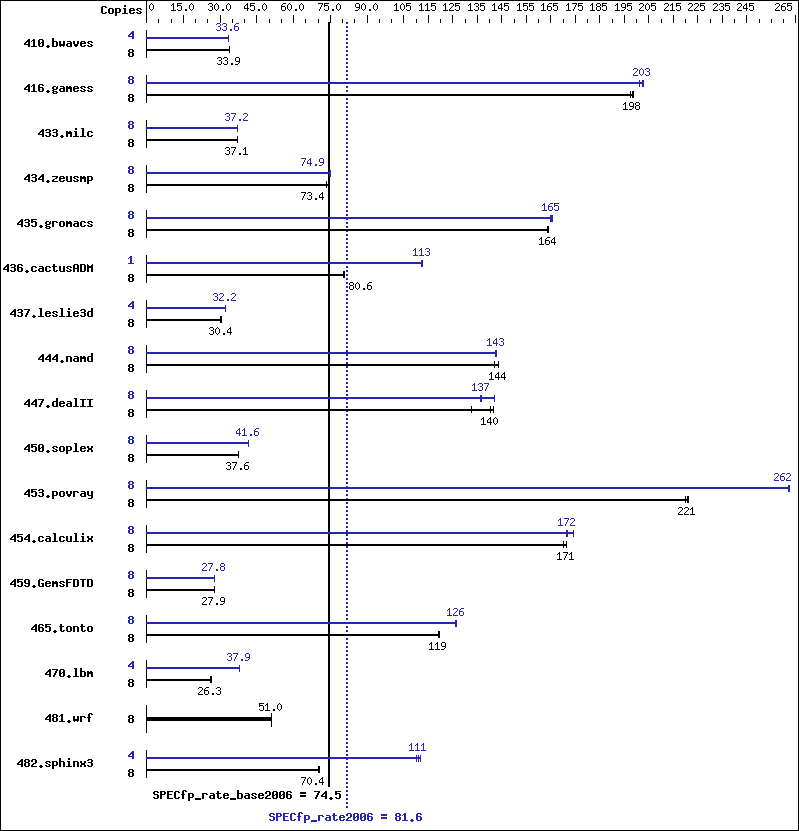

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3208 | 33.9 | 3208 | 33.9 | 3208 | 33.9 | 4 | 1619 | 33.6 | 1616 | 33.6 | 1616 | 33.6 |
416.gamess | 8 | 793 | 198 | 789 | 199 | 790 | 198 | 8 | 773 | 203 | 773 | 203 | 779 | 201 |
433.milc | 8 | 1982 | 37.1 | 1981 | 37.1 | 1981 | 37.1 | 8 | 1974 | 37.2 | 1974 | 37.2 | 1975 | 37.2 |
434.zeusmp | 8 | 991 | 73.4 | 982 | 74.1 | 993 | 73.3 | 8 | 968 | 75.2 | 972 | 74.9 | 972 | 74.9 |
435.gromacs | 8 | 348 | 164 | 349 | 164 | 348 | 164 | 8 | 345 | 166 | 345 | 165 | 347 | 165 |
436.cactusADM | 8 | 1186 | 80.6 | 1186 | 80.6 | 1185 | 80.7 | 1 | 106 | 113 | 106 | 112 | 106 | 113 |
437.leslie3d | 8 | 2471 | 30.4 | 2468 | 30.5 | 2475 | 30.4 | 4 | 1173 | 32.1 | 1166 | 32.2 | 1166 | 32.2 |
444.namd | 8 | 447 | 144 | 452 | 142 | 447 | 144 | 8 | 450 | 143 | 450 | 143 | 449 | 143 |
447.dealII | 8 | 691 | 133 | 652 | 140 | 647 | 142 | 8 | 670 | 137 | 645 | 142 | 671 | 136 |
450.soplex | 8 | 1776 | 37.6 | 1776 | 37.6 | 1775 | 37.6 | 8 | 1602 | 41.6 | 1602 | 41.6 | 1602 | 41.6 |
453.povray | 8 | 193 | 220 | 193 | 221 | 193 | 221 | 8 | 162 | 262 | 162 | 262 | 162 | 262 |
454.calculix | 8 | 385 | 171 | 385 | 171 | 388 | 170 | 8 | 384 | 172 | 385 | 171 | 379 | 174 |
459.GemsFDTD | 8 | 3041 | 27.9 | 3041 | 27.9 | 3041 | 27.9 | 8 | 3059 | 27.7 | 3056 | 27.8 | 3055 | 27.8 |
465.tonto | 8 | 661 | 119 | 659 | 120 | 660 | 119 | 8 | 622 | 127 | 624 | 126 | 623 | 126 |
470.lbm | 8 | 4177 | 26.3 | 4177 | 26.3 | 4175 | 26.3 | 4 | 1451 | 37.9 | 1451 | 37.9 | 1454 | 37.8 |
481.wrf | 8 | 1757 | 50.9 | 1753 | 51.0 | 1748 | 51.1 | 8 | 1757 | 50.9 | 1753 | 51.0 | 1748 | 51.1 |
482.sphinx3 | 8 | 2215 | 70.4 | 2203 | 70.8 | 2221 | 70.2 | 4 | 708 | 110 | 703 | 111 | 697 | 112 |
The config file option 'submit' was used.
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
BIOS Settings: Hardware Prefetcher = Disabled (Default = Enabled) Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex and 482.sphinx3, at peak, are compiled in 32-bit mode taskset was used to bind processes to cores except for 436.cactusADM peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
