CPU2006 license: | 55 | Test date: | Sep-2008 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Sep-2008 |
Tested by: | Dell Inc. | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5410 |
CPU Characteristics: | |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (4x4 GB, DDR2-667 MHz, CL5, Reg, Dual Rank) |
Disk Subsystem: | 1 x 80 GB SATA 5400 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080730 Package ID: l_cc_b_11.0.042, l_fc_b_11.0.042 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

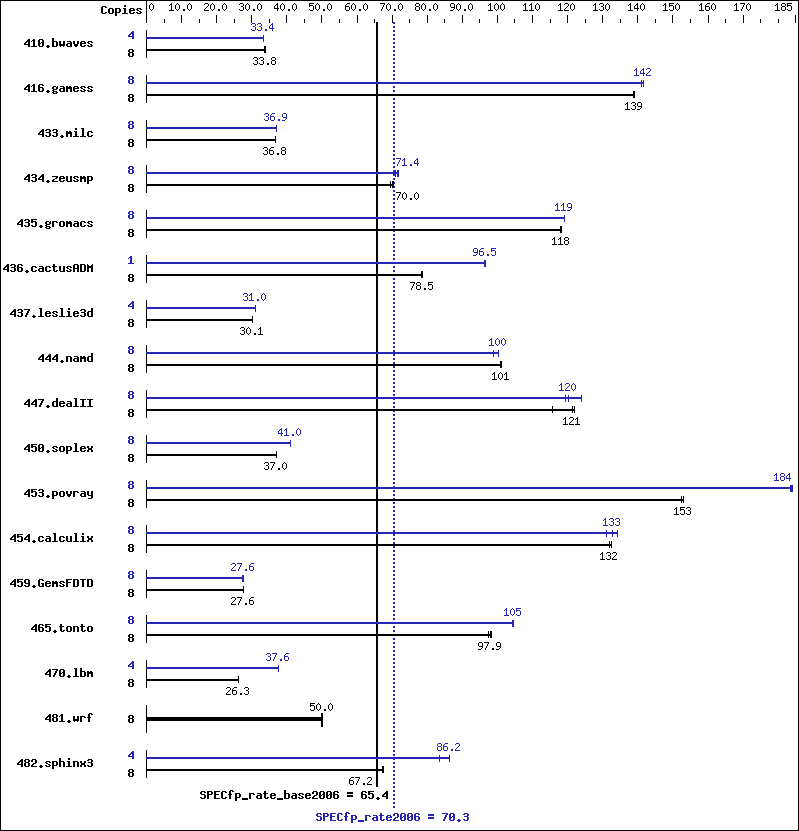

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3235 | 33.6 | 3213 | 33.8 | 3216 | 33.8 | 4 | 1625 | 33.4 | 1627 | 33.4 | 1629 | 33.4 |
416.gamess | 8 | 1129 | 139 | 1126 | 139 | 1127 | 139 | 8 | 1110 | 141 | 1106 | 142 | 1107 | 142 |
433.milc | 8 | 1996 | 36.8 | 1996 | 36.8 | 1996 | 36.8 | 8 | 1989 | 36.9 | 1990 | 36.9 | 1990 | 36.9 |
434.zeusmp | 8 | 1034 | 70.4 | 1046 | 69.6 | 1040 | 70.0 | 8 | 1019 | 71.4 | 1014 | 71.8 | 1026 | 70.9 |
435.gromacs | 8 | 485 | 118 | 483 | 118 | 483 | 118 | 8 | 479 | 119 | 480 | 119 | 479 | 119 |
436.cactusADM | 8 | 1217 | 78.5 | 1215 | 78.7 | 1218 | 78.5 | 1 | 124 | 96.5 | 124 | 96.5 | 124 | 96.2 |
437.leslie3d | 8 | 2495 | 30.1 | 2496 | 30.1 | 2494 | 30.1 | 4 | 1216 | 30.9 | 1213 | 31.0 | 1214 | 31.0 |
444.namd | 8 | 635 | 101 | 635 | 101 | 635 | 101 | 8 | 639 | 100 | 650 | 98.7 | 640 | 100 |
447.dealII | 8 | 750 | 122 | 754 | 121 | 791 | 116 | 8 | 766 | 119 | 762 | 120 | 738 | 124 |
450.soplex | 8 | 1804 | 37.0 | 1802 | 37.0 | 1804 | 37.0 | 8 | 1629 | 41.0 | 1628 | 41.0 | 1627 | 41.0 |
453.povray | 8 | 278 | 153 | 279 | 152 | 278 | 153 | 8 | 232 | 184 | 232 | 184 | 231 | 184 |
454.calculix | 8 | 500 | 132 | 498 | 133 | 500 | 132 | 8 | 503 | 131 | 498 | 133 | 491 | 134 |
459.GemsFDTD | 8 | 3071 | 27.6 | 3066 | 27.7 | 3075 | 27.6 | 8 | 3087 | 27.5 | 3081 | 27.6 | 3080 | 27.6 |
465.tonto | 8 | 808 | 97.5 | 804 | 97.9 | 801 | 98.3 | 8 | 753 | 105 | 752 | 105 | 754 | 104 |
470.lbm | 8 | 4182 | 26.3 | 4176 | 26.3 | 4175 | 26.3 | 4 | 1461 | 37.6 | 1462 | 37.6 | 1463 | 37.6 |
481.wrf | 8 | 1777 | 50.3 | 1789 | 50.0 | 1786 | 50.0 | 8 | 1777 | 50.3 | 1789 | 50.0 | 1786 | 50.0 |
482.sphinx3 | 8 | 2312 | 67.4 | 2323 | 67.1 | 2320 | 67.2 | 4 | 902 | 86.4 | 904 | 86.2 | 932 | 83.6 |
The config file option 'submit' was used.
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
BIOS Settings: Hardware Prefetcher = Disabled (Default = Enabled) Adjacent Cache Line Prefetch = Disabled (Default = Enabled)
All benchmarks compiled in 64-bit mode except 437.leslie3d, 450.soplex and 482.sphinx3, at peak, are compiled in 32-bit mode taskset was used to bind processes to cores except for 436.cactusADM peak OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc | |
482.sphinx3: | /opt/intel/Compiler/11.0/042/bin/ia32/icc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icpc | |
450.soplex: | /opt/intel/Compiler/11.0/042/bin/ia32/icpc -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
ifort | |
437.leslie3d: | /opt/intel/Compiler/11.0/042/bin/ia32/ifort -L/opt/intel/Compiler/11.0/042/ipp/ia32/lib -I/opt/intel/Compiler/11.0/042/ipp/ia32/include |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
