SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 570 (4.2 GHz, 32 core)

CPU2006 license: 11 Test date: Sep-2008
Test sponsor: IBM Corporation Hardware Availability: Nov-2008
Tested by: IBM Corporation Software Availability: Nov-2008

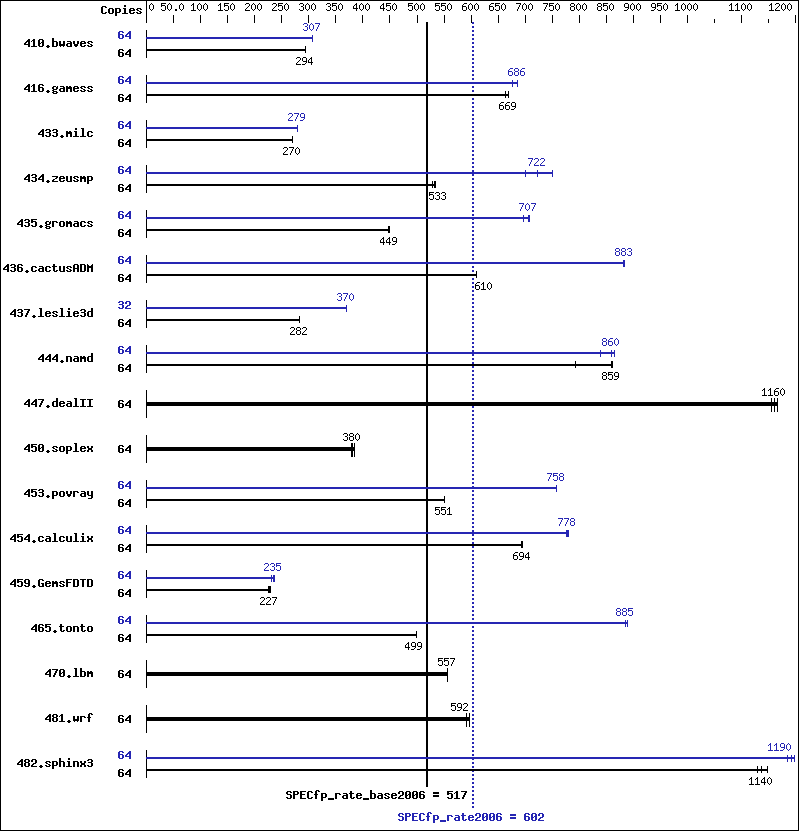

Benchmark results graph
Hardware
CPU Name: POWER6+
CPU Characteristics:
CPU MHz: 4200
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 4,8,16,24,32 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 128 GB (64x2 GB) DDR2 667 MHz
Disk Subsystem: 4x73 GB 4x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V6.1
with the 6100-02 Technology Level
Compiler: IBM XL C/C++ V10.1 for AIX
IBM XL Fortran V12.1 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 2954 294 2952 295 2965 293 64 2835 307 2835 307 2835 307
416.gamess 64 1874 669 1874 669 1891 663 64 1827 686 1826 686 1850 677
433.milc 64 2174 270 2173 270 2172 270 64 2107 279 2108 279 2106 279
434.zeusmp 64 1089 535 1104 528 1093 533 64 832 700 776 751 807 722
435.gromacs 64 1019 449 1017 449 1020 448 64 647 707 646 708 655 697
436.cactusADM 64 1254 610 1254 610 1253 610 64 865 884 868 882 866 883
437.leslie3d 64 2127 283 2134 282 2132 282 32 813 370 812 370 812 370
444.namd 64 648 792 596 861 598 859 64 593 865 597 860 612 838
447.dealII 64 627 1170 634 1150 631 1160 64 627 1170 634 1150 631 1160
450.soplex 64 1386 385 1405 380 1410 379 64 1386 385 1405 380 1410 379
453.povray 64 618 551 619 550 617 551 64 449 758 449 758 450 757
454.calculix 64 762 693 760 695 761 694 64 679 777 677 780 679 778
459.GemsFDTD 64 2953 230 3016 225 2993 227 64 2884 235 2933 231 2880 236
465.tonto 64 1262 499 1261 499 1261 499 64 712 885 712 884 708 889
470.lbm 64 1579 557 1581 556 1578 557 64 1579 557 1581 556 1578 557
481.wrf 64 1208 592 1196 598 1209 591 64 1208 592 1196 598 1209 591
482.sphinx3 64 1104 1130 1087 1150 1097 1140 64 1046 1190 1052 1190 1042 1200

Peak Tuning Notes

fdpr binary optimization tool used for 410.bwaves
  with options -bf -bp -ece -lap -las -nop -nopr -pto -RC -RD -rmte -so -tlo -A 64
               -lu 6 -rt 0.10 -ihf 60 -sdpla 32 -sdpms 32 -shci 10 -si -siht 15 -lun 32
fdpr binary optimization tool used for 433.milc 435.gromacs 437.leslie3d 453.povray
                                       454.calculix 482.sphinx3
  with options -O4 -vrox -pbsi
fdpr binary optimization tool used for 434.zeusmp
  with options -O3 -vrox -sdp 9
fdpr binary optimization tool used for 459.GemsFDTD
  with options -bf -bp -ece -hr -lap -nop -pca -RC -rmte -si -tb -tlo -vro -A 32 -rt 0.80
               -hrf 0.05 -sdp 5 -sdpms 512 -shci 90 -lun 27 -rcctf 0.70 -rccrf 0.80 -rcaf 2

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 all ulimits set to unlimited.
 6400 16M large pages defined with vmo command

Platform Notes

 System set to "Enhanced" mode when defining partition on HMC.

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

 See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -bmaxdata:0x50000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Fortran benchmarks:

 -bmaxdata:0x60000000   -O5   -qlargepage   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -bmaxdata:0x60000000   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qfdpr   -blpdata
470.lbm:  basepeak = yes
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qfdpr   -blpdata

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -blpdata
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qalign=natural   -qfdpr

Fortran benchmarks:

410.bwaves:  -bmaxdata:0x50000000   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qalias=nostd   -blpdata
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -qfdpr   -blpdata
437.leslie3d:  -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -blpdata
459.GemsFDTD:  -O4   -qlargepage   -q64   -qfdpr   -blpdata
465.tonto:  -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qfdpr
436.cactusADM:  -bmaxdata:0x60000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -qlargepage   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qfdpr   -qnostrict   -blpdata
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-AIX.html,
http://www.spec.org/cpu2006/flags/IBM-XL.20090713.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-AIX.xml,
http://www.spec.org/cpu2006/flags/IBM-XL.20090713.xml.
