SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 570 ( 4.2 GHz, 32 core, RedHat)

CPU2006 license: 11 Test date: Sep-2008
Test sponsor: IBM Corporation Hardware Availability: Nov-2008
Tested by: IBM Corporation Software Availability: Sep-2008

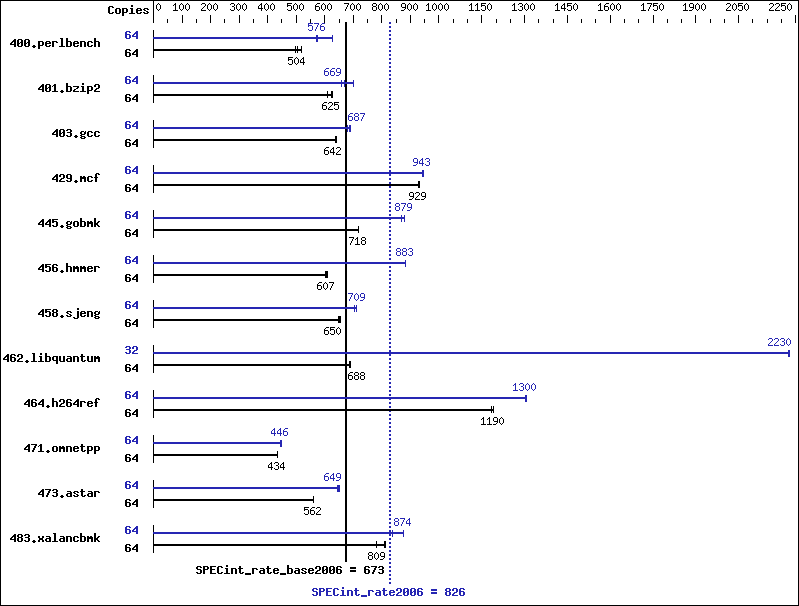

Benchmark results graph
Hardware
CPU Name: POWER6+
CPU Characteristics:
CPU MHz: 4200
FPU: Integrated
CPU(s) enabled: 32 cores, 16 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 4,8,16,24,32 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 128 GB (64x2 GB) DDR2 667 MHz
Disk Subsystem: 2x73 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.2,
Kernel 2.6.18-92.el5
Compiler: IBM XL C/C++ for Linux, V10.1
Auto Parallel: No
File System: ext3
System State: Run Level 3 (Multi-User)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -IBM Post-Link Optimization for Linux on
POWER, Version 5.4.0-18
-MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 64 1258 497 1240 504 1209 517 64 1086 576 1093 572 998 626
401.bzip2 64 1015 608 988 625 986 626 64 936 660 883 699 924 669
403.gcc 64 802 642 802 642 808 638 64 758 679 747 690 750 687
429.mcf 64 627 932 628 929 629 928 64 617 946 619 943 620 942
445.gobmk 64 934 718 935 718 936 718 64 762 881 764 879 774 867
456.hmmer 64 981 609 990 603 983 607 64 678 881 676 883 676 883
458.sjeng 64 1192 650 1184 654 1193 649 64 1099 705 1090 710 1092 709
462.libquantum 64 1929 687 1927 688 1924 689 32 298 2230 298 2220 298 2230
464.h264ref 64 1196 1180 1190 1190 1189 1190 64 1086 1300 1088 1300 1083 1310
471.omnetpp 64 923 434 922 434 922 434 64 896 446 896 446 895 447
473.astar 64 804 559 800 562 799 562 64 695 646 692 649 691 650
483.xalancbmk 64 564 782 544 812 546 809 64 527 839 505 875 505 874

Submit Notes

The config file option 'submit' was used.
 Benchmarks bound to a processor using numactl on the submit command.

General Notes

 See flags file for details on following settings.

 ulimit -s (stack) set to 1048576.

 Large pages reserved as follows by root user:
     echo 3840 > /proc/sys/vm/nr_hugepages
 System configured with libhugetlbfs library for application access to large pages
 Environment variables set before executing benchmarks.
     export HUGETLB_VERBOSE=0
     export HUGETLB_MORECORE=yes
     export XLFRTEOPTS=intrinthds=1

 IBM Post-Link Optimization tool with
   options "-q -O4 -A 32 -shci 90 -sdp 9" used for
       400.perlbench 401.bzip2 403.gcc 429.mcf 456.hmmer 458.sjeng
       464.h264ref 473.astar 483.xalancbmk
   options "-bf -dp -hr -las -pca -RC -RD -rmte -si -tlo -A 64 -isf 104 -lu 8 -rt 0.16
            -hrf 0.18 -ihf 40 -sdp 6 -sdpms 128 -shci 65 -si -sidf 45" used for
       429.mcf
   options "-q -O3 -A 32" used for
       445.gobmk
   options "-bf -dp -lro -nop -RC -RD -tb -tlo -vro -A 4
            -isf 88 -lu 8 -hrf 0.10 -sdp 4 -lun 27" used for
       462.libquantum


Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_PPC
462.libquantum:  -DSPEC_CPU_LINUX
464.h264ref:  -qchars=signed
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr6   -qtune=pwr6   -qalias=noansi   -qalloca   -lhugetlbfs

C++ benchmarks:

 -O5   -qarch=pwr6   -qtune=pwr6   -qrtti   -lsmartheap

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_PPC
403.gcc:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
464.h264ref:  -qchars=signed
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr6   -qtune=pwr6   -qalias=noansi   -lsmartheap
401.bzip2:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr6   -qtune=pwr6   -lhugetlbfs
403.gcc:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr6   -qtune=pwr6   -qalloca   -q64   -lhugetlbfs
429.mcf:  -Wl,-q   -O5   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -lhugetlbfs
445.gobmk:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -lhugetlbfs
456.hmmer:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -lhugetlbfs
458.sjeng:  -Wl,-q   -O5   -qarch=pwr6   -qtune=pwr6   -lhugetlbfs
462.libquantum:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -q64   -lhugetlbfs
464.h264ref:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -q64   -lhugetlbfs

C++ benchmarks:

471.omnetpp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr6   -qtune=pwr6   -qrtti   -lsmartheap
473.astar:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -lsmartheap
483.xalancbmk:  -Wl,-q   -O5   -qarch=pwr6   -qtune=pwr6   -lsmartheap

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20090713.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20090713.xml.
