| CPU2006 license: | 20 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2008 |
| Tested by: | Bull SAS | Software Availability: | Nov-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 1333 MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB) FB-DIMM PC2-5300F ECC CL5 |
| Disk Subsystem: | 1x73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1 Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 10.1 for Linux Build 20070913 Package ID: l_cc_p_10.1.008 |
| Auto Parallel: | Yes |
| File System: | ext2 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Binutils 2.17.50.0.15 SmartHeap library V8.1 |

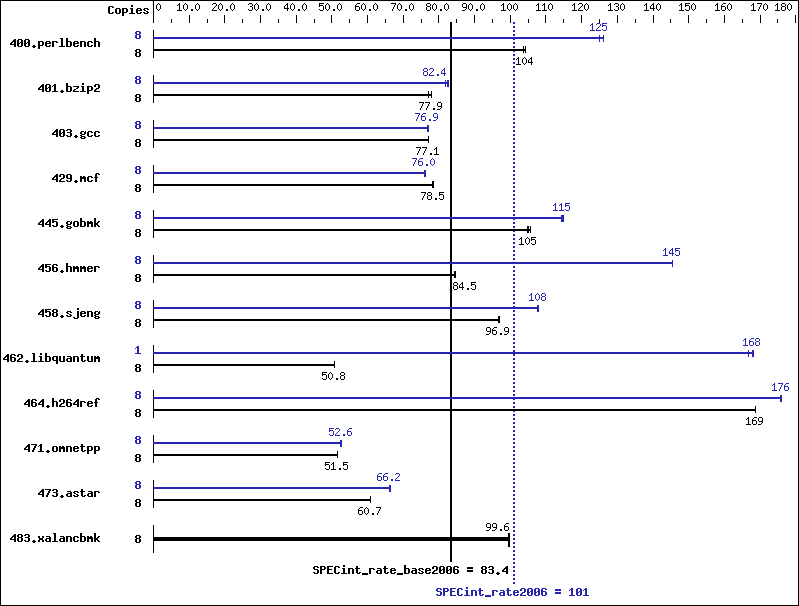

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 750 | 104 | 754 | 104 | 751 | 104 | 8 | 626 | 125 | 620 | 126 | 625 | 125 |
| 401.bzip2 | 8 | 991 | 77.9 | 1000 | 77.2 | 991 | 77.9 | 8 | 934 | 82.6 | 944 | 81.8 | 937 | 82.4 |
| 403.gcc | 8 | 835 | 77.1 | 835 | 77.2 | 836 | 77.0 | 8 | 837 | 76.9 | 834 | 77.2 | 840 | 76.7 |
| 429.mcf | 8 | 933 | 78.2 | 929 | 78.5 | 929 | 78.5 | 8 | 962 | 75.9 | 960 | 76.0 | 959 | 76.1 |
| 445.gobmk | 8 | 799 | 105 | 794 | 106 | 800 | 105 | 8 | 730 | 115 | 733 | 115 | 735 | 114 |
| 456.hmmer | 8 | 883 | 84.5 | 884 | 84.5 | 884 | 84.5 | 8 | 513 | 145 | 513 | 145 | 513 | 145 |
| 458.sjeng | 8 | 999 | 96.9 | 998 | 97.0 | 1000 | 96.8 | 8 | 898 | 108 | 898 | 108 | 897 | 108 |
| 462.libquantum | 8 | 3264 | 50.8 | 3261 | 50.8 | 3264 | 50.8 | 1 | 123 | 168 | 124 | 167 | 123 | 168 |
| 464.h264ref | 8 | 1049 | 169 | 1049 | 169 | 1049 | 169 | 8 | 1007 | 176 | 1005 | 176 | 1007 | 176 |
| 471.omnetpp | 8 | 971 | 51.5 | 971 | 51.5 | 971 | 51.5 | 8 | 951 | 52.6 | 951 | 52.6 | 952 | 52.5 |
| 473.astar | 8 | 925 | 60.7 | 925 | 60.7 | 925 | 60.7 | 8 | 849 | 66.1 | 846 | 66.3 | 848 | 66.2 |
| 483.xalancbmk | 8 | 552 | 99.9 | 555 | 99.5 | 554 | 99.6 | 8 | 552 | 99.9 | 555 | 99.5 | 554 | 99.6 |
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Hardware Prefetcher Enabled Adjacent Cache-Line Prefetch Disabled
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast -inline-calloc -opt-malloc-options=3 |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast -prefetch |
| 403.gcc: | -fast -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -fast -unroll2 -ansi-alias -opt-multi-version-aggressive |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always -vec-guard-write -opt-malloc-options=3 -parallel -par-runtime-control |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
