| CPU2006 license: | 13 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Intel Corporation | Hardware Availability: | Sep-2008 |
| Tested by: | Intel Corporation | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E7440 |
| CPU Characteristics: | |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 16 cores, 4 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2,4 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 6 MB I+D on chip per chip, 3 MB shared / 2 cores |
| L3 Cache: | 16 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (16x2 GB Micron DDR2 5300F, CL5-5-5, 2 rank, ECC) |
| Disk Subsystem: | 73 GB Seagate SAS, 10K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16-60.0.21-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

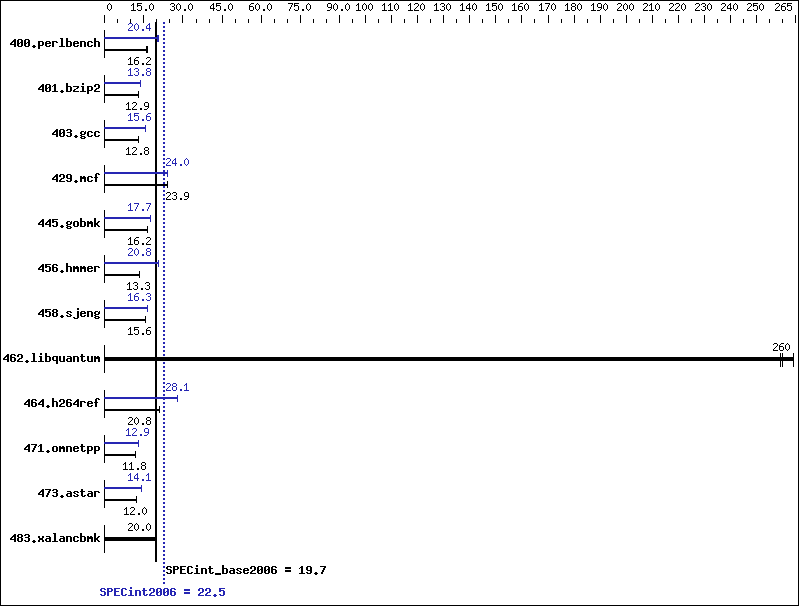

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 603 | 16.2 | 599 | 16.3 | 602 | 16.2 | 478 | 20.4 | 482 | 20.3 | 478 | 20.4 |
| 401.bzip2 | 749 | 12.9 | 744 | 13.0 | 746 | 12.9 | 695 | 13.9 | 699 | 13.8 | 699 | 13.8 |
| 403.gcc | 631 | 12.8 | 629 | 12.8 | 627 | 12.8 | 515 | 15.6 | 515 | 15.6 | 515 | 15.6 |
| 429.mcf | 382 | 23.9 | 381 | 23.9 | 379 | 24.1 | 380 | 24.0 | 380 | 24.0 | 380 | 24.0 |
| 445.gobmk | 647 | 16.2 | 647 | 16.2 | 646 | 16.2 | 592 | 17.7 | 592 | 17.7 | 592 | 17.7 |
| 456.hmmer | 701 | 13.3 | 701 | 13.3 | 700 | 13.3 | 449 | 20.8 | 449 | 20.8 | 449 | 20.8 |
| 458.sjeng | 776 | 15.6 | 775 | 15.6 | 780 | 15.5 | 740 | 16.3 | 743 | 16.3 | 742 | 16.3 |
| 462.libquantum | 80.0 | 259 | 79.8 | 260 | 78.4 | 264 | 80.0 | 259 | 79.8 | 260 | 78.4 | 264 |
| 464.h264ref | 1059 | 20.9 | 1062 | 20.8 | 1063 | 20.8 | 789 | 28.0 | 788 | 28.1 | 788 | 28.1 |
| 471.omnetpp | 531 | 11.8 | 531 | 11.8 | 531 | 11.8 | 484 | 12.9 | 485 | 12.9 | 484 | 12.9 |
| 473.astar | 582 | 12.1 | 583 | 12.0 | 583 | 12.0 | 499 | 14.1 | 495 | 14.2 | 499 | 14.1 |
| 483.xalancbmk | 345 | 20.0 | 345 | 20.0 | 345 | 20.0 | 345 | 20.0 | 345 | 20.0 | 345 | 20.0 |
General Notes
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer, for peak, are compiled in 64-bit mode OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" Hardware Prefetcher: Enabled Adjacent Cache Line Prefetcher: Enabled High Bandwidth Option: Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -parallel -par-runtime-control -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
