| CPU2006 license: | 3 | Test date: | Sep-2008 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Sep-2008 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3370 |
| CPU Characteristics: | 3.0 GHz, 2 x 6 MB L2 shared, 1333 MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB(4x2 GB PC2-6400E CL6) |
| Disk Subsystem: | 250 GB 7.2 K SATA |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP1, Kernel 2.6.16.46-0.12-smp |
| Compiler: | Intel C++ Compiler 11.0 for Linux Build 20080730 Package ID: l_cproc_b_11.0.042 |
| Auto Parallel: | Yes |
| File System: | ext3 |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap 8.1 Binutils 2.18.50.0.7.20080502 |

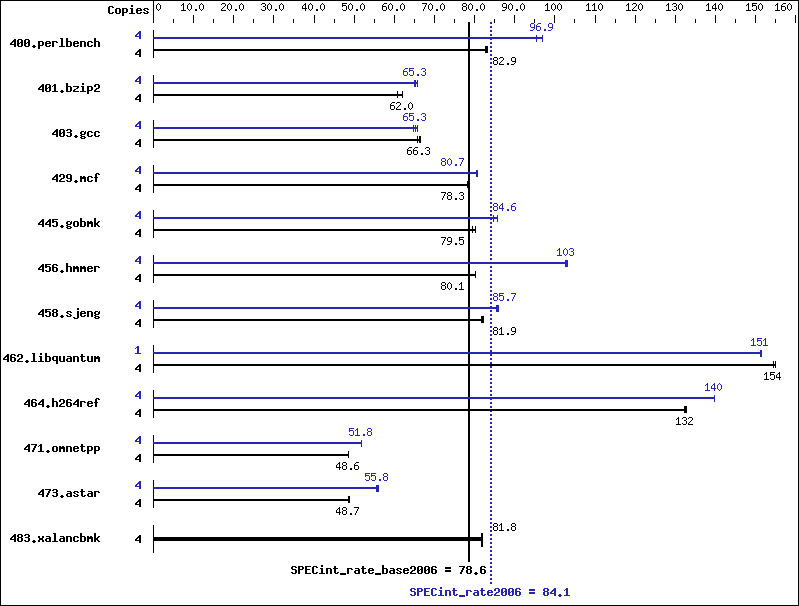

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 472 | 82.7 | 472 | 82.9 | 470 | 83.1 | 4 | 410 | 95.3 | 403 | 97.0 | 403 | 96.9 |
| 401.bzip2 | 4 | 635 | 60.8 | 622 | 62.0 | 623 | 62.0 | 4 | 591 | 65.3 | 588 | 65.7 | 593 | 65.1 |
| 403.gcc | 4 | 485 | 66.3 | 490 | 65.7 | 483 | 66.6 | 4 | 497 | 64.9 | 493 | 65.3 | 490 | 65.7 |
| 429.mcf | 4 | 466 | 78.3 | 466 | 78.3 | 465 | 78.4 | 4 | 453 | 80.5 | 452 | 80.7 | 452 | 80.7 |
| 445.gobmk | 4 | 528 | 79.5 | 533 | 78.7 | 523 | 80.3 | 4 | 489 | 85.8 | 496 | 84.6 | 496 | 84.6 |
| 456.hmmer | 4 | 466 | 80.1 | 466 | 80.1 | 465 | 80.2 | 4 | 363 | 103 | 363 | 103 | 362 | 103 |
| 458.sjeng | 4 | 589 | 82.1 | 591 | 81.8 | 591 | 81.9 | 4 | 566 | 85.6 | 564 | 85.8 | 565 | 85.7 |
| 462.libquantum | 4 | 535 | 155 | 537 | 154 | 537 | 154 | 1 | 137 | 151 | 137 | 152 | 137 | 151 |
| 464.h264ref | 4 | 669 | 132 | 667 | 133 | 668 | 132 | 4 | 633 | 140 | 634 | 140 | 634 | 140 |
| 471.omnetpp | 4 | 514 | 48.6 | 514 | 48.6 | 514 | 48.6 | 4 | 483 | 51.8 | 482 | 51.8 | 482 | 51.8 |
| 473.astar | 4 | 574 | 48.9 | 578 | 48.6 | 577 | 48.7 | 4 | 505 | 55.6 | 502 | 55.9 | 503 | 55.8 |
| 483.xalancbmk | 4 | 338 | 81.8 | 337 | 81.8 | 337 | 81.8 | 4 | 338 | 81.8 | 337 | 81.8 | 337 | 81.8 |
Submit Notes
The config file option 'submit' was used. taskset was used to bind processes to cores except for 462.libquantum peak
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to physical,0 KMP_STACKSIZE set to 64M
Platform Notes
BIOS configuration: Adjacent Sector Prefetch Disabled Hardware Prefetcher Disabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.1 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -ansi-alias -opt-prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -ansi-alias |
| 403.gcc: | -xSSE4.1 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 |
| 429.mcf: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 |
| 462.libquantum: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -parallel -par-runtime-control -opt-prefetch |
| 464.h264ref: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 473.astar: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
| 483.xalancbmk: | basepeak = yes |
