| CPU2006 license: | 9008 | Test date: | Nov-2008 |
|---|---|---|---|
| Test sponsor: | ACTION S.A. | Hardware Availability: | Sep-2008 |
| Tested by: | ACTION S.A. | Software Availability: | Nov-2008 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5405 |
| CPU Characteristics: | 1333 MHz System Bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB PC2-5300, CL 5-5-5, ECC) |
| Disk Subsystem: | RAID 10 (6x300 GB SAS, 15K RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows 2003 Server Enterprise Edition (32-bit) Service Pack 2 |
| Compiler: | Intel C++ Compiler Professional 11.0 for IA32 Build 20080930 Package ID: w_cproc_p_11.0.054 Microsoft Visual Studio 2008 (for libraries) |
| Auto Parallel: | Yes |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None SmartHeap Library Version 8.1 from http://www.microquill.com/ |

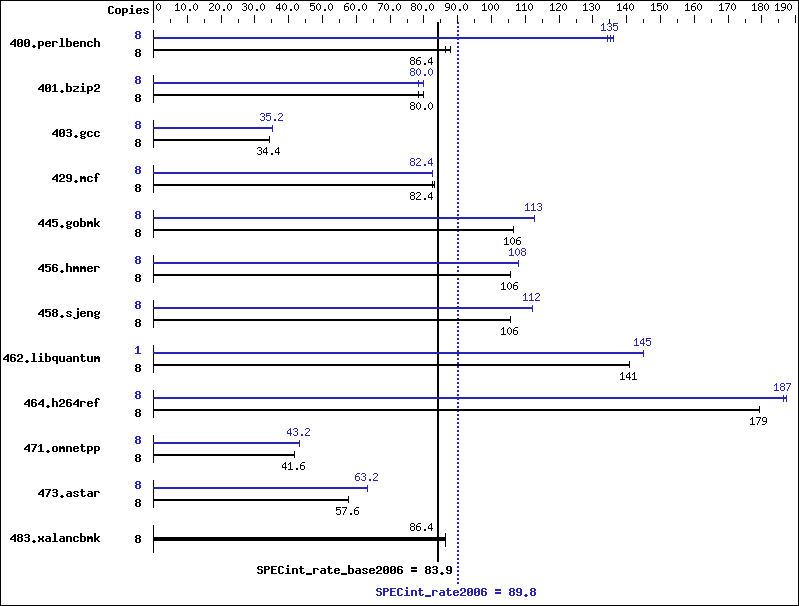

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 902 | 86.4 | 905 | 86.4 | 888 | 88.0 | 8 | 583 | 134 | 575 | 136 | 578 | 135 |
| 401.bzip2 | 8 | 983 | 78.4 | 965 | 80.0 | 967 | 80.0 | 8 | 984 | 78.4 | 968 | 80.0 | 965 | 80.0 |
| 403.gcc | 8 | 1870 | 34.4 | 1870 | 34.4 | 1866 | 34.4 | 8 | 1850 | 35.2 | 1828 | 35.2 | 1833 | 35.2 |
| 429.mcf | 8 | 881 | 83.2 | 883 | 82.4 | 884 | 82.4 | 8 | 885 | 82.4 | 882 | 82.4 | 886 | 82.4 |
| 445.gobmk | 8 | 789 | 106 | 789 | 106 | 789 | 106 | 8 | 742 | 113 | 742 | 113 | 744 | 113 |
| 456.hmmer | 8 | 709 | 106 | 709 | 106 | 709 | 106 | 8 | 691 | 108 | 691 | 108 | 691 | 108 |
| 458.sjeng | 8 | 915 | 106 | 915 | 106 | 915 | 106 | 8 | 866 | 112 | 866 | 112 | 866 | 112 |
| 462.libquantum | 8 | 1178 | 141 | 1178 | 141 | 1178 | 141 | 1 | 143 | 145 | 143 | 145 | 143 | 145 |
| 464.h264ref | 8 | 990 | 179 | 988 | 179 | 988 | 179 | 8 | 950 | 186 | 947 | 187 | 947 | 187 |
| 471.omnetpp | 8 | 1191 | 41.6 | 1191 | 41.6 | 1192 | 41.6 | 8 | 1162 | 43.2 | 1163 | 43.2 | 1163 | 43.2 |
| 473.astar | 8 | 973 | 57.6 | 970 | 57.6 | 972 | 57.6 | 8 | 886 | 63.2 | 884 | 63.2 | 884 | 63.2 |
| 483.xalancbmk | 8 | 638 | 86.4 | 637 | 86.4 | 639 | 86.4 | 8 | 638 | 86.4 | 637 | 86.4 | 639 | 86.4 |
Submit Notes
The config file option 'submit' was used.
General Notes
Product description located as of 10/2008: http://www.actina.pl Binaries were built on Windows Vista Ultimate (32-bit) OMP_NUM_THREADS set to number of logical processors as seen by the OS KMP_AFFINITY set to physical,0 submit disabled for 462.libquantum peak Start command was used to bind processes to CPUs
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -QxSSSE3 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
C++ benchmarks:
| -QxSSSE3 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qcxx-features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-prefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qansi-alias /F512000000 |
| 403.gcc: | -QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 429.mcf: | -QxSSSE3 -Qipo -O3 -Qprec-div- -Qopt-prefetch /F512000000 |
| 445.gobmk: | -QxSSSE3 -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O2 -Qprec-div- -Qansi-alias /F512000000 |
| 456.hmmer: | -QxSSSE3 -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll2 -Qansi-alias /F512000000 |
| 458.sjeng: | -QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qunroll4 /F512000000 |
| 462.libquantum: | -QxSSSE3 -Qipo -O3 -Qprec-div- -Qopt-prefetch -Qparallel -Qpar-runtime-control -Qvec-guard-write /F512000000 |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=block /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -QxSSSE3(pass 2) -Qprof_gen(pass 1) -Qprof_use(pass 2) -Qipo -O3 -Qprec-div- -Qansi-alias -Qopt-ra-region-strategy=routine /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | basepeak = yes |
