SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS42 (AMD Opteron 8380)

SPECfp®2006 = 21.1

CPU2006 license: 11 Test date: Nov-2008
Test sponsor: IBM Corporation Hardware Availability: Nov-2008
Tested by: IBM Corporation Software Availability: May-2008

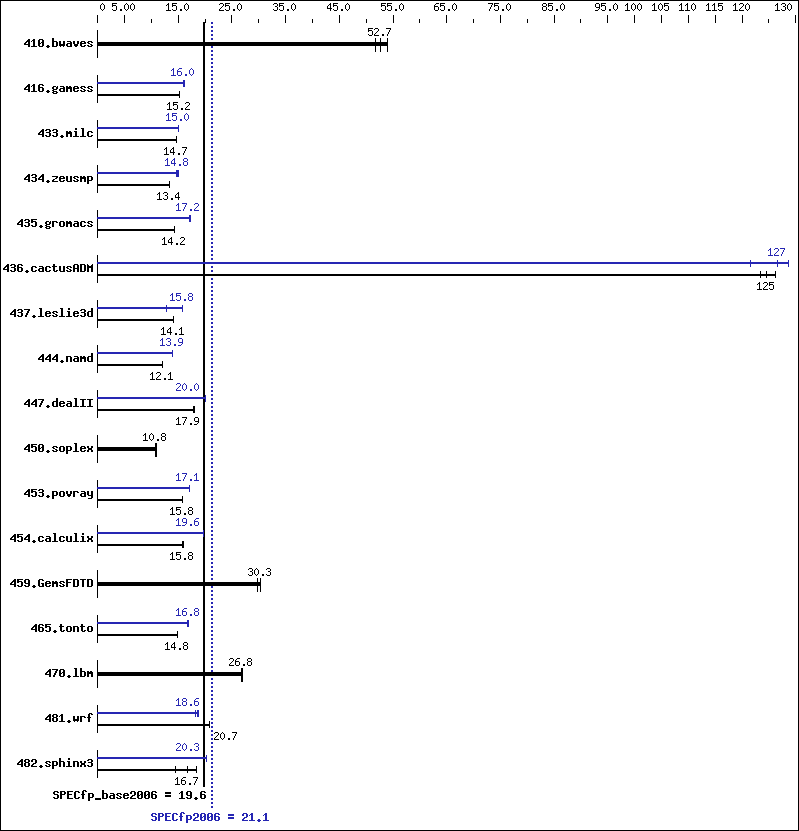

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8380
CPU Characteristics:
CPU MHz: 2500
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 1,2,3,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16 x 4 GB DDR2-6400 ECC)
Disk Subsystem: 1 x 73 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: PGI Server Complete Version 7.2
Auto Parallel: Yes
File System: ReiserFS
System State: Run level 3 (Full multiuser with network)
Base Pointers: 32/64-bit
Peak Pointers: 64-bit
Other Software: binutils 2.18

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 262   51.8 251   54.0 258   52.7 262   51.8 251   54.0 258   52.7
416.gamess 1288   15.2 1286   15.2 1289   15.2 1224   16.0 1219   16.1 1223   16.0
433.milc 624   14.7 623   14.7 624   14.7 611   15.0 611   15.0 611   15.0
434.zeusmp 679   13.4 681   13.4 680   13.4 616   14.8 618   14.7 607   15.0
435.gromacs 501   14.2 502   14.2 501   14.2 416   17.2 415   17.2 416   17.2
436.cactusADM 96.8 123   94.7 126   95.9 125   98.3 122   94.4 127   92.9 129
437.leslie3d 671   14.0 669   14.1 667   14.1 737   12.8 592   15.9 595   15.8
444.namd 661   12.1 662   12.1 664   12.1 576   13.9 576   13.9 577   13.9
447.dealII 636   18.0 638   17.9 638   17.9 572   20.0 572   20.0 572   20.0
450.soplex 767   10.9 769   10.8 769   10.8 767   10.9 769   10.8 769   10.8
453.povray 338   15.7 338   15.8 336   15.8 311   17.1 312   17.0 312   17.1
454.calculix 524   15.8 522   15.8 520   15.9 421   19.6 421   19.6 421   19.6
459.GemsFDTD 356   29.8 349   30.4 350   30.3 356   29.8 349   30.4 350   30.3
465.tonto 665   14.8 665   14.8 663   14.9 584   16.8 586   16.8 585   16.8
470.lbm 510   26.9 514   26.7 513   26.8 510   26.9 514   26.7 513   26.8
481.wrf 539   20.7 536   20.8 539   20.7 597   18.7 611   18.3 600   18.6
482.sphinx3 1056   18.5 1342   14.5 1167   16.7 960   20.3 961   20.3 960   20.3

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

General Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Environment variables set by runspec before the start of the run:
LD_LIBRARY_PATH = "/cpu2006/pgi72/linux_lib32:/cpu2006/pgi72/linux_lib64"
PGI_HUGE_PAGES = "14336"
SPEC_DIR = "/cpu2006"
NCPUS = "16"

Processor Performance States Disabled in BIOS
Memory ChipKill Disabled in BIOS

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mconcur   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc=huge   -Mconcur   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mconcur   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:8

C++ benchmarks:

 -Mipa=jobs:8

Fortran benchmarks:

 -Mipa=jobs:8

Benchmarks using both Fortran and C:

 -Mipa=jobs:8

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Msafeptr   -Mconcur   -Mfprelaxed   -Mipa=inline   -Mipa=arg   -Mipa=const   -Mipa=ptr   -Mipa=shape   -tp barcelona-64   -Bstatic_pgi
470.lbm:  basepeak = yes
482.sphinx3:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -Mvect=cachesize:6291456   -fastsse   -alias=ansi   -Msmartalloc=huge   -Mprefetch=t0   -Mnovect   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-32   -Bstatic_pgi
450.soplex:  basepeak = yes
453.povray:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inlinenopfo:3(pass 2)   -Mipa=staticfunc(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mvect=noaltcode   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
434.zeusmp:  -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Mconcur   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mconcur=noaltcode(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  basepeak = yes
465.tonto:  -Mvect=cachesize:6291456   -fastsse   -O4   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

435.gromacs:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   -Mfpapprox=rsqrt   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
436.cactusADM:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mconcur   -Mdse   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mloop32   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -Mvect=cachesize:6291456   -fastsse   -Mvect=noaltcode   -Msmartalloc=huge   -Mprefetch=distance:8   -Mconcur=noaltcode   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi

Peak Other Flags

C benchmarks:

 -Mipa=jobs:8(pass 2)

C++ benchmarks:

 -Mipa=jobs:8(pass 2)

Fortran benchmarks:

 -Mipa=jobs:8

Benchmarks using both Fortran and C (except as noted below):

 -Mipa=jobs:8(pass 2)
481.wrf:  No flags used

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090713.00.xml.
