SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision T3400 (Intel E8600, 3.33 GHz)

SPECfp®2006 = 23.6

CPU2006 license: 55 Test date: Nov-2008
Test sponsor: Dell Inc. Hardware Availability: Jan-2009
Tested by: Dell Inc. Software Availability: Nov-2008

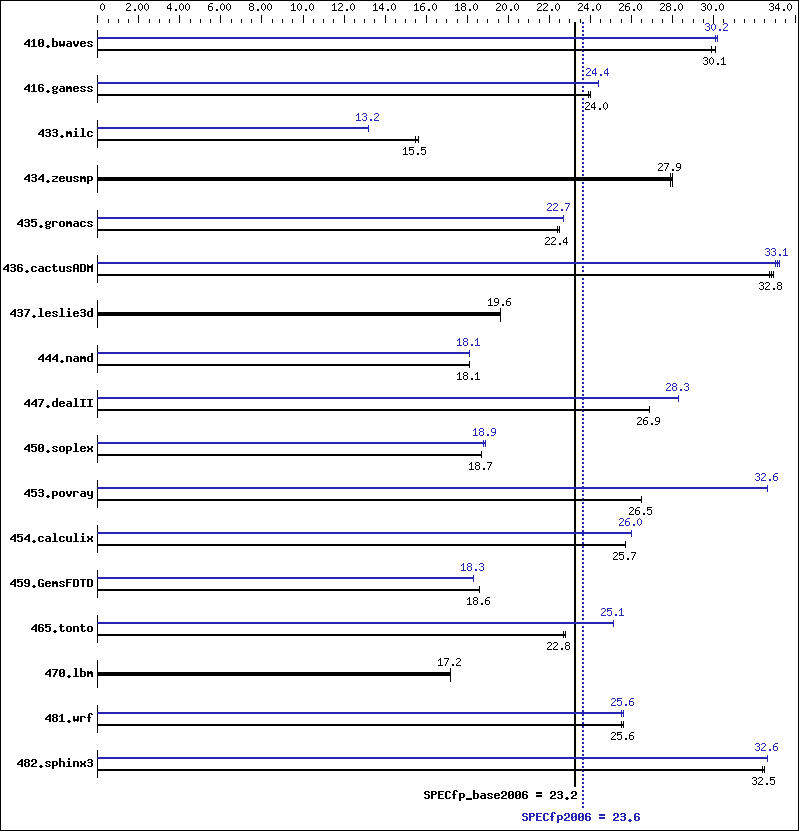

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo E8600
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3333
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2-800, ECC, CL6)
Disk Subsystem: 1 x 160 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate SP1 (64-bit)
Compiler: Intel C++ Compiler for Intel 64, Version 11.0
Build 20080930 Package ID: w_cproc_p_11.0.061
Intel Visual Fortran Compiler for Intel 64,
Version 11.0
Build 20080930 Package ID: w_cprof_p_11.0.061
Microsoft Visual Studio 2008 SP1
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1 for x64

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 454 29.9 451 30.1 451 30.1 451 30.2 451 30.1 451 30.2
416.gamess 819 23.9 816 24.0 817 24.0 804 24.4 804 24.4 804 24.4
433.milc 587 15.6 590 15.5 591 15.5 697 13.2 697 13.2 697 13.2
434.zeusmp 326 27.9 326 27.9 325 28.0 326 27.9 326 27.9 325 28.0
435.gromacs 318 22.5 318 22.4 318 22.4 315 22.7 315 22.7 315 22.7
436.cactusADM 364 32.9 366 32.7 364 32.8 361 33.1 360 33.2 362 33.0
437.leslie3d 479 19.6 480 19.6 479 19.6 479 19.6 480 19.6 479 19.6
444.namd 442 18.1 442 18.1 442 18.1 444 18.1 444 18.1 444 18.1
447.dealII 425 26.9 425 26.9 425 26.9 405 28.3 405 28.3 405 28.3
450.soplex 446 18.7 446 18.7 446 18.7 442 18.9 442 18.9 443 18.8
453.povray 201 26.5 201 26.5 201 26.5 163 32.6 163 32.6 163 32.6
454.calculix 321 25.7 321 25.7 321 25.7 318 26.0 317 26.0 317 26.0
459.GemsFDTD 571 18.6 571 18.6 572 18.6 579 18.3 579 18.3 579 18.3
465.tonto 433 22.7 432 22.8 432 22.8 392 25.1 393 25.1 392 25.1
470.lbm 797 17.2 797 17.2 797 17.2 797 17.2 797 17.2 797 17.2
481.wrf 437 25.5 436 25.6 437 25.6 437 25.6 438 25.5 436 25.6
482.sphinx3 600 32.5 600 32.5 602 32.4 599 32.6 599 32.6 599 32.6

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

Base Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /assume:underscore
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F512000000

C++ benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx_features   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc9   -Qstd=c99

C++ benchmarks:

 icl   -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F512000000

C++ benchmarks:

444.namd:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
447.dealII:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
450.soplex:  -Qprof_gen(pass 1)   -QxSSE4.1   -Qauto-ilp32   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE
453.povray:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F512000000   shlw64m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000
416.gamess:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  -Qprof_gen(pass 1)   -QxSSE4.1(pass 2)   -Qauto-ilp32(pass 2)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qparallel   /F1000000000
454.calculix:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  -QxSSE4.1   -Qauto-ilp32   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic11.0.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic11.0.windows.flags.xml.
