SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4600 M2 (AMD Opteron 8384 2.7GHz)

CPU2006 license: 6 Test date: Dec-2008
Test sponsor: Sun Microsystems Hardware Availability: Jan-2009
Tested by: Sun Microsystems Software Availability: Nov-2008

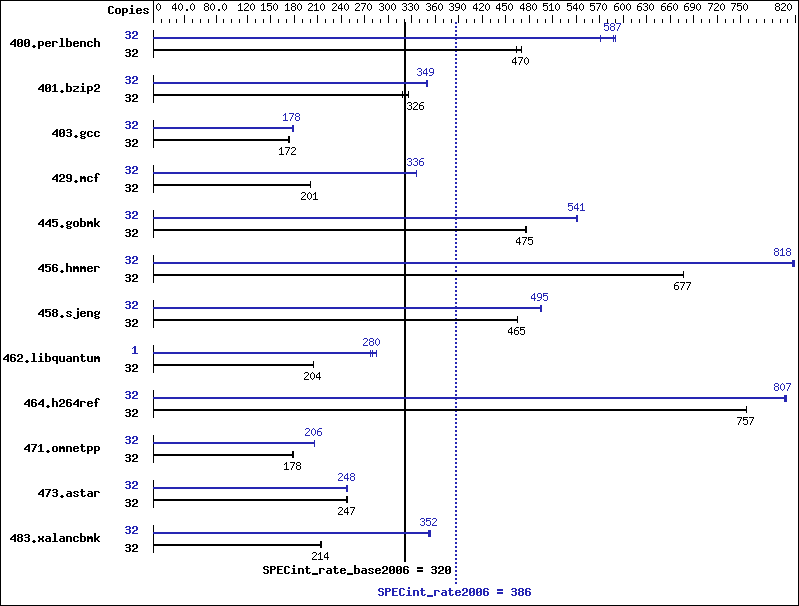

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8384
CPU Characteristics:
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 32 cores, 8 chips, 4 cores/chip
CPU(s) orderable: 2, 4, 6, 8 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 128 GB (64 x 2 GB, DDR2-667 CL5 ECC Registered
SDRAM)
Disk Subsystem: 2 x SAS, 72 GB, 10 K RPM
Other Hardware: 2 x Filler Modules
Software
Operating System: OpenSolaris 2008.05
Compiler: Sun Studio Express 11/08
Auto Parallel: Yes
File System: Benchmark on ufs, OS on zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 7.4 32-bit Library for Solaris

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 32 674 464 665 470 665 470 32 548   571 530   590 533   587
401.bzip2 32 972 318 947 326 947 326 32 888   348 885   349 883   350
403.gcc 32 1486 173 1495 172 1499 172 32 1449   178 1446   178 1445   178
429.mcf 32 1458 200 1453 201 1454 201 32 869   336 870   336 869   336
445.gobmk 32 706 475 707 475 705 476 32 621   541 620   542 621   541
456.hmmer 32 441 677 441 677 441 677 32 365   818 366   816 365   818
458.sjeng 32 833 465 833 465 833 465 32 782   495 783   495 783   494
462.libquantum 32 3251 204 3255 204 3249 204 1 74.0 280 74.8 277 72.9 284
464.h264ref 32 936 757 936 757 936 757 32 878   806 878   807 877   808
471.omnetpp 32 1123 178 1121 178 1122 178 32 973   206 970   206 971   206
473.astar 32 909 247 912 246 908 247 32 906   248 907   248 911   247
483.xalancbmk 32 1030 214 1033 214 1028 215 32 625   354 627   352 630   351

Submit Notes

The config file option 'submit' was used.
 Processes were bound to cores using "submit" and "pbind".

Operating System Notes


 export OMP_NUM_THREADS=32
 export SUNW_MP_PROCBIND=TRUE
 export SUNW_MP_THR_IDLE=SPIN
 export OMP_NESTED=FALSE
 export STACKSIZE=16384
 export OMP_DYNAMIC=TRUE
 ulimit -s 131072  (shell): increases stack


 /etc/system parameters
    tune_t_fsflushr=1
    autoup=900
    lpg_alloc_prefer=1

Platform Notes


 Default BIOS settings was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xprefetch   -m64

C++ benchmarks:

 -fast   -xipo=2   -xvector=simd   -m64   -xpagesize=2m   -xprefetch=no   -library=stlport4

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_X64
403.gcc:  -DSPEC_CPU_LP64   -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -lbsdmalloc   -xvector=simd   -xpagesize=2M   -xprefetch=no   -L/data1/SmartHeap_7.4/lib -R/data1/SmartHeap_7.4/lib -lsmartheap   -xalias_level=std
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=strong   -lumem   -xpagesize=2M   -xprefetch=no   -Wu,-fsimple=3
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=std   -xprefetch=no   -xpagesize=2M   -m64   -Wu,-fsimple=3
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xalias_level=strict   -xprefetch=no%auto   -lbsdmalloc   -Wu,-fsimple=3
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xrestrict   -xalias_level=strong   -xdepend   -xpagesize=2m   -lmvec   -Wu,-fsimple=3
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -Wu,-fsimple=3
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xvector=simd   -m64   -xrestrict   -xpagesize=2M   -xprefetch=no   -xalias_level=std   -Wu,-fsimple=3
462.libquantum:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xreduction   -xipo=2   -xvector=simd   -m64   -xautopar   -xunroll=8   -lmtmalloc   -Wu,-fsimple=3   -xalias_level=std
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=std   -Wu,-fsimple=3

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xvector=simd   -lumem   -xpagesize=2M   -xprefetch=no   -L/data1/SmartHeap_7.4/lib -R/data1/SmartHeap_7.4/lib -lsmartheap   -xalias_level=compatible   -Qoption ube -fsimple=3   -qoption ube -sched_first_pass=0   -library=stlport4
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2m   -M /usr/lib/ld/map.bssalign   -xprefetch=no   -xvector=simd   -xdepend   -xalias_level=simple   -Qoption ube -fsimple=3   -library=stlport4
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -Qoption ube -fsimple=3   -xvector=simd   -lumem   -L/data1/SmartHeap_7.4/lib -R/data1/SmartHeap_7.4/lib -lsmartheap   -library=stlport4

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090713.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090713.00.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.1.
Report generated on Tue Jul 22 21:32:50 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 24 December 2008.
