SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL165 G5p
(2.7 GHz AMD Opteron 2384)

CPU2006 license: 3 Test date: Dec-2008
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2009
Tested by: Hewlett-Packard Company Software Availability: Jun-2008

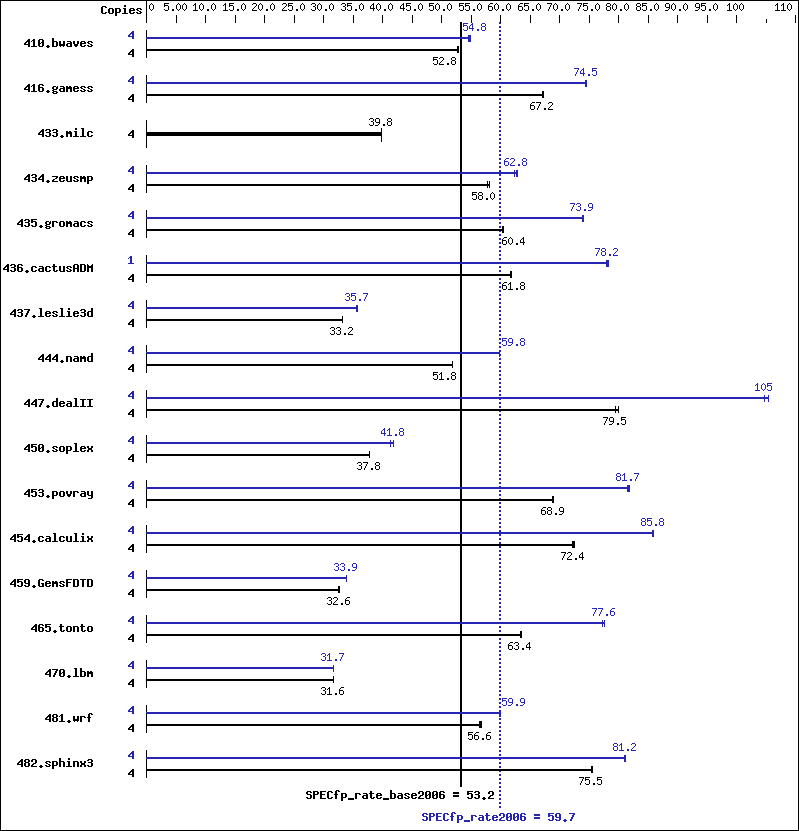

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2384
CPU Characteristics:
CPU MHz: 2700
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB, PC2-6400P CL5)
Disk Subsystem: 1x250 GB 10 K SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1,
Kernel 2.6.16.46-0.12-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.2
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.17.50
32-bit and 64-bit libhugetlbfs libraries

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1030 52.8 1029 52.8 1030 52.8 4 992 54.8 990 54.9 996 54.6
416.gamess 4 1166 67.2 1167 67.1 1164 67.3 4 1052 74.5 1051 74.5 1053 74.4
433.milc 4 922 39.8 923 39.8 924 39.8 4 922 39.8 923 39.8 924 39.8
434.zeusmp 4 627 58.0 630 57.8 626 58.2 4 579 62.9 580 62.8 583 62.4
435.gromacs 4 473 60.4 473 60.4 473 60.4 4 386 73.9 386 73.9 386 74.0
436.cactusADM 4 775 61.7 773 61.9 773 61.8 1 153 78.2 153 78.2 153 77.9
437.leslie3d 4 1131 33.2 1132 33.2 1131 33.3 4 1056 35.6 1050 35.8 1052 35.7
444.namd 4 619 51.8 619 51.8 619 51.8 4 536 59.8 536 59.9 536 59.8
447.dealII 4 573 79.9 576 79.4 575 79.5 4 437 105   437 105   434 105
450.soplex 4 883 37.8 883 37.8 883 37.8 4 808 41.3 798 41.8 798 41.8
453.povray 4 309 68.8 309 68.9 309 69.0 4 260 81.7 261 81.5 260 81.8
454.calculix 4 457 72.2 456 72.4 455 72.5 4 385 85.8 384 85.9 384 85.8
459.GemsFDTD 4 1304 32.5 1298 32.7 1301 32.6 4 1253 33.9 1253 33.9 1253 33.9
465.tonto 4 621 63.4 622 63.3 620 63.5 4 507 77.6 509 77.3 507 77.7
470.lbm 4 1738 31.6 1737 31.6 1737 31.6 4 1736 31.7 1736 31.7 1736 31.7
481.wrf 4 789 56.6 786 56.8 791 56.5 4 747 59.8 745 59.9 746 59.9
482.sphinx3 4 1033 75.5 1034 75.4 1033 75.5 4 962 81.1 960 81.2 960 81.2

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 Environment stack size set to 'unlimited'
 Max locked memory set to 2097152
 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.
 PGI_HUGE_PAGES set to 896.
 Total number of huge pages available is 3584.
 NCPUS set to number of cores

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
NCPUS = "4"

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc=huge   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Fortran benchmarks:

 -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pathf95
410.bwaves:  pgf95
434.zeusmp:  pgf95
437.leslie3d:  pgf95

Benchmarks using both Fortran and C (except as noted below):

 pgcc   pgf95
435.gromacs:  pathcc   pathf95
481.wrf:  pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mloop32   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -fno-exceptions   -m32
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -L/usr/lib -lhugetlbfs(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc   -Mprefetch=nta   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:prefer_lru_reg=off   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -OPT:rsqrt=2   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
436.cactusADM:  -Mvect=cachesize:6291456   -fastsse   -Mconcur   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -OPT:malloc_alg=1   -m3dnow   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs

Peak Other Flags

C benchmarks:

 -Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:  -Mipa=jobs:4(pass 2)

Fortran benchmarks (except as noted below):

 -Mipa=jobs:4(pass 2)
416.gamess:  No flags used
459.GemsFDTD:  No flags used
465.tonto:  No flags used

Benchmarks using both Fortran and C (except as noted below):

 -Mipa=jobs:4(pass 2)
435.gromacs:  No flags used
481.wrf:  No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.html,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.20090710.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.xml,
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.20090710.xml.
