CPU2006 license: | 9013 | Test date: | Jan-2009 |
---|---|---|---|
Test sponsor: | NTT System S. A. | Hardware Availability: | Dec-2008 |
Tested by: | NTT System S. A. | Software Availability: | Dec-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5410 |
CPU Characteristics: | 2.33 GHz, 2x6 MB P2 shared, 1333 MHz System Bus |
CPU MHz: | 2333 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 12 MB I+D on chip per chip, 6 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (4 x 4GB DDR2-667 FBDIMM) |
Disk Subsystem: | 300 GB SATA, 7200RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 10 SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066, l_cprof_p_11.0.066 |
Auto Parallel: | Yes |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

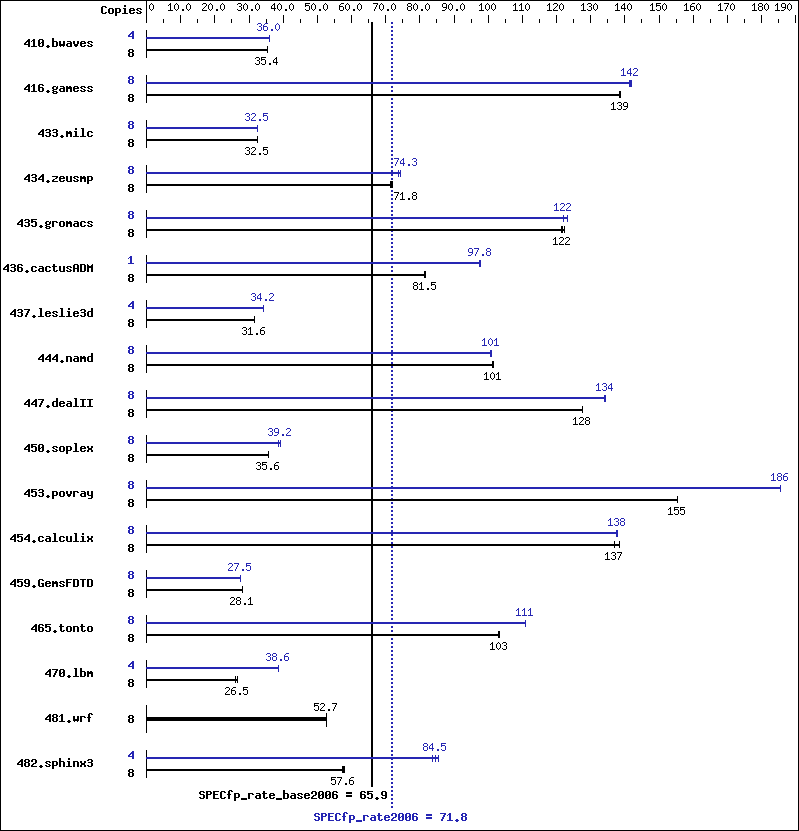

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 3075 | 35.4 | 3073 | 35.4 | 3079 | 35.3 | 4 | 1508 | 36.0 | 1508 | 36.0 | 1509 | 36.0 |
416.gamess | 8 | 1133 | 138 | 1130 | 139 | 1129 | 139 | 8 | 1105 | 142 | 1108 | 141 | 1104 | 142 |
433.milc | 8 | 2261 | 32.5 | 2260 | 32.5 | 2260 | 32.5 | 8 | 2259 | 32.5 | 2260 | 32.5 | 2259 | 32.5 |
434.zeusmp | 8 | 1020 | 71.4 | 1011 | 72.0 | 1014 | 71.8 | 8 | 979 | 74.3 | 978 | 74.4 | 986 | 73.9 |
435.gromacs | 8 | 471 | 121 | 469 | 122 | 467 | 122 | 8 | 464 | 123 | 468 | 122 | 468 | 122 |
436.cactusADM | 8 | 1173 | 81.5 | 1173 | 81.5 | 1169 | 81.8 | 1 | 122 | 97.8 | 122 | 97.8 | 123 | 97.3 |
437.leslie3d | 8 | 2381 | 31.6 | 2377 | 31.6 | 2383 | 31.6 | 4 | 1101 | 34.2 | 1102 | 34.1 | 1101 | 34.2 |
444.namd | 8 | 633 | 101 | 632 | 101 | 632 | 102 | 8 | 637 | 101 | 635 | 101 | 635 | 101 |
447.dealII | 8 | 717 | 128 | 717 | 128 | 717 | 128 | 8 | 682 | 134 | 681 | 134 | 683 | 134 |
450.soplex | 8 | 1874 | 35.6 | 1872 | 35.6 | 1872 | 35.6 | 8 | 1723 | 38.7 | 1697 | 39.3 | 1701 | 39.2 |
453.povray | 8 | 274 | 155 | 274 | 155 | 274 | 155 | 8 | 229 | 186 | 229 | 186 | 229 | 185 |
454.calculix | 8 | 476 | 139 | 482 | 137 | 482 | 137 | 8 | 478 | 138 | 480 | 138 | 478 | 138 |
459.GemsFDTD | 8 | 3017 | 28.1 | 3015 | 28.2 | 3015 | 28.1 | 8 | 3092 | 27.4 | 3090 | 27.5 | 3090 | 27.5 |
465.tonto | 8 | 764 | 103 | 762 | 103 | 762 | 103 | 8 | 710 | 111 | 710 | 111 | 710 | 111 |
470.lbm | 8 | 4217 | 26.1 | 4143 | 26.5 | 4143 | 26.5 | 4 | 1423 | 38.6 | 1423 | 38.6 | 1423 | 38.6 |
481.wrf | 8 | 1694 | 52.7 | 1695 | 52.7 | 1693 | 52.8 | 8 | 1694 | 52.7 | 1695 | 52.7 | 1693 | 52.8 |
482.sphinx3 | 8 | 2697 | 57.8 | 2705 | 57.6 | 2715 | 57.4 | 4 | 930 | 83.8 | 913 | 85.4 | 923 | 84.5 |
The config file option 'submit' was used. taskset was used to bind processes to cores except for 436.cactusADM peak
OMP_NUM_THREADS set to number of processors KMP_AFFINITY set to "physical,0" KMP_STACKSIZE set to 64M
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias |
470.lbm: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -m32 -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -fno-alias -auto-ilp32 |
447.dealII: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -m32 -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 |
453.povray: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static |
437.leslie3d: | -m32 -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll4 -auto |
435.gromacs: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
436.cactusADM: | -prof-gen(pass 1) -prof-use(pass 2) -xSSE4.1 -ipo -O3 -no-prec-div -static -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.1 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
