SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4170 (Intel Xeon X5570 2.93GHz)

CPU2006 license: 6 Test date: Apr-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

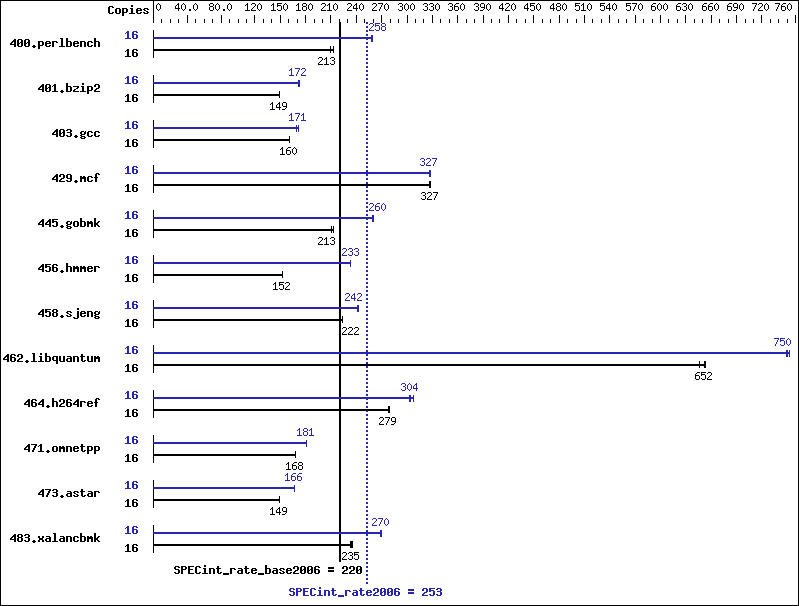

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 1 x 146 GB, SAS, 10 K RPM
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(internal build 39.0)
Auto Parallel: No
File System: zfs with gzip compression
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 734 213 748 209 732 214 16 607 258 603 259 606 258
401.bzip2 16 1037 149 1038 149 1037 149 16 898 172 898 172 897 172
403.gcc 16 800 161 803 160 803 160 16 753 171 762 169 751 172
429.mcf 16 446 327 445 328 446 327 16 446 327 445 328 447 326
445.gobmk 16 799 210 786 213 789 213 16 645 260 645 260 649 259
456.hmmer 16 981 152 981 152 981 152 16 640 233 641 233 640 233
458.sjeng 16 867 223 876 221 873 222 16 797 243 801 242 802 241
462.libquantum 16 513 646 508 652 507 654 16 440 753 443 749 442 750
464.h264ref 16 1276 278 1270 279 1271 279 16 1169 303 1166 304 1151 308
471.omnetpp 16 594 168 594 168 594 168 16 552 181 552 181 551 181
473.astar 16 752 149 754 149 753 149 16 675 166 675 167 675 166
483.xalancbmk 16 470 235 474 233 470 235 16 409 270 411 269 409 270

Submit Notes

 The config file option 'submit' was used, along with 'pbind", to
 assign processes to cores.

Operating System Notes

 ulimit -s 131072  (shell): increases stack
 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes

   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

Base Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_IA32
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xpagesize=2M   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

 -fast   -xipo=2   -xpagesize=2M   -xvector=simd   -xalias_level=compatible   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Peak Compiler Invocation

C benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/cc

C++ benchmarks:

 /data1/SUNWspro.b39/SUNWspro/bin/CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_IA32
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xvector=simd   -xalias_level=std   -lbsdmalloc   -lumem
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong   -lumem
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=std
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xalias_level=std   -M /usr/lib/ld/map.bssalign
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -m64   -xpagesize=2M   -xrestrict   -xalias_level=strong   -xdepend   -lmvec
456.hmmer:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xalias_level=strong   -xpagesize=2M
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xrestrict   -xalias_level=std
462.libquantum:  -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=strong

C++ benchmarks:

471.omnetpp:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4
473.astar:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -xalias_level=compatible   -library=stlport4
483.xalancbmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M   -xunroll=8   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap   -library=stlport4

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.
