SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X2270 (Intel Xeon X5570 2.93GHz)

SPECfp®2006 = 48.3

CPU2006 license: 6 Test date: Mar-2009
Test sponsor: Sun Microsystems Hardware Availability: Apr-2009
Tested by: Sun Microsystems Software Availability: Jun-2009

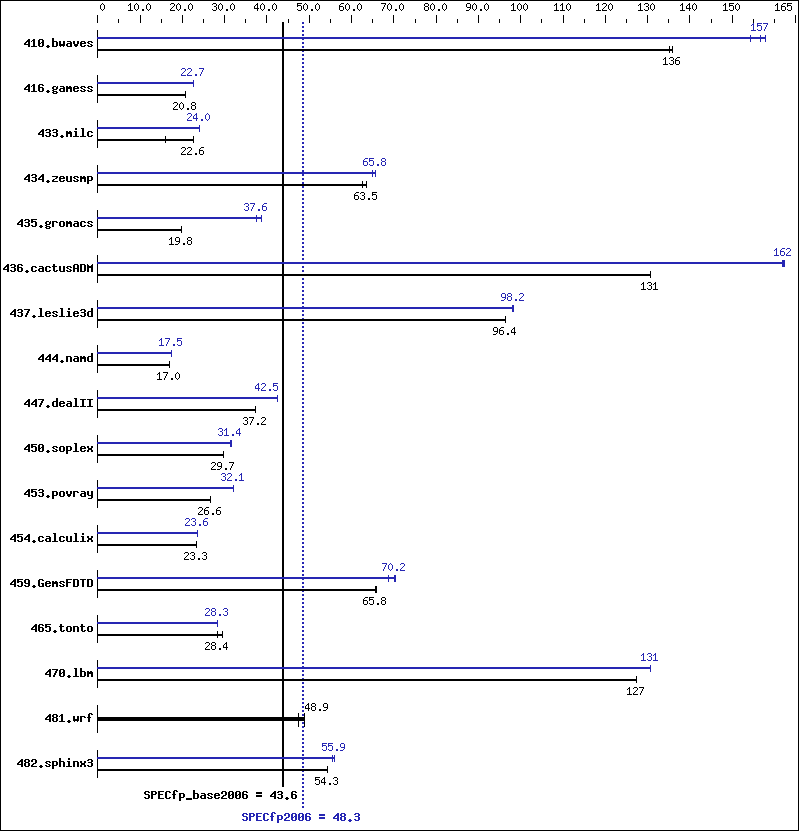

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5570
CPU Characteristics: Intel Turbo Boost Technology up to 3.33 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 or 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 24 GB (6 x 4 GB DDR3-1333)
Disk Subsystem: 1 x 1 TB, SATA, 7200 RPM
Other Hardware: None
Software
Operating System: OpenSolaris 2008.11
Compiler: Sun Studio 12 Update 1
(backend build 20090309)
Auto Parallel: Yes
File System: zfs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 9.01 for x64
Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 101   135   100   136   100   136   86.7 157   88.1 154   86.1 158
416.gamess 939   20.8 939   20.8 939   20.8 863   22.7 861   22.7 861   22.7
433.milc 572   16.0 407   22.6 407   22.6 381   24.1 382   24.0 382   24.0
434.zeusmp 143   63.5 146   62.5 143   63.5 138   65.8 138   65.8 140   64.8
435.gromacs 360   19.8 360   19.8 360   19.8 190   37.6 185   38.6 190   37.6
436.cactusADM 91.4 131   91.4 131   91.4 131   73.7 162   73.7 162   73.8 162
437.leslie3d 97.5 96.5 97.5 96.4 97.5 96.4 95.9 98.0 95.7 98.2 95.7 98.3
444.namd 471   17.0 470   17.0 470   17.0 459   17.5 459   17.5 459   17.5
447.dealII 307   37.2 307   37.2 308   37.2 270   42.4 269   42.5 269   42.5
450.soplex 281   29.6 281   29.7 281   29.7 266   31.4 265   31.5 266   31.4
453.povray 200   26.6 200   26.6 200   26.6 166   32.1 165   32.2 166   32.1
454.calculix 355   23.3 355   23.3 355   23.3 350   23.6 350   23.6 350   23.6
459.GemsFDTD 161   65.8 161   65.8 162   65.6 151   70.2 154   68.8 151   70.3
465.tonto 347   28.4 347   28.4 334   29.5 348   28.3 348   28.3 348   28.3
470.lbm 108   127   108   127   108   127   105   131   105   131   105   131
481.wrf 228   48.9 235   47.5 228   49.0 228   48.9 235   47.5 228   49.0
482.sphinx3 359   54.3 359   54.3 359   54.4 351   55.6 349   55.9 349   55.9

Compiler Invocation Notes

 The Apache C++ Standard Library V4.2.1 was installed from
 http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8D CONFIG=sunpro.config

Operating System Notes

 ulimit -s 131072  (shell): increases stack
 /etc/system parameters
    tune_t_fsflushr=10
    autoup=900
    set lpg_alloc_prefer=1
    set zfs:zfs_arc_max = 0x10000000

Platform Notes

   Default BIOS settings used except:
   Intel VT-d: Disabled.  VT-d, if enabled, supports
   remapping of I/O DMA transfers for virtualization.

General Notes

Environment variables set by runspec before the start of the run:
OMP_NUM_THREADS = "8"
SUNW_MP_PROCBIND = "true"
SUNW_MP_THR_IDLE = "SPIN"
447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.
447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 /data1/20090309_ceres_x86/bin/cc

C++ benchmarks:

 /data1/20090309_ceres_x86/bin/CC

Fortran benchmarks:

 /data1/20090309_ceres_x86/bin/f90

Benchmarks using both Fortran and C:

 /data1/20090309_ceres_x86/bin/cc   /data1/20090309_ceres_x86/bin/f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

C++ benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -library=no%Cstd   -I/data2c/stdcxx-4.2.1/include   -I/data2c/stdcxx-4.2.1/build/include   -L/data2c/stdcxx-4.2.1/build/lib   -R/data2c/stdcxx-4.2.1/build/lib   -lstd8D

Fortran benchmarks:

 -fast   -xipo=2   -m64   -xvector=simd   -xautopar

Benchmarks using both Fortran and C:

 -fast(cc)   -xipo=2   -m64   -xvector=simd   -xautopar   -fast(f90)

Base Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

Peak Compiler Invocation

C benchmarks:

 /data1/20090309_ceres_x86/bin/cc

C++ benchmarks:

 /data1/20090309_ceres_x86/bin/CC

Fortran benchmarks:

 /data1/20090309_ceres_x86/bin/f90

Benchmarks using both Fortran and C:

 /data1/20090309_ceres_x86/bin/cc   /data1/20090309_ceres_x86/bin/f90

Peak Portability Flags

436.cactusADM:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -xpagesize=2M
470.lbm:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -L/data1/SmartHeap_9/lib -R/data1/SmartHeap_9/lib -lsmartheap_mt64   -lmvec
482.sphinx3:  -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xprefetch=no%auto   -xautopar   -xreduction

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=8   -library=stlport4
447.dealII:  -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -xdepend   -library=no%Cstd   -I/data2c/stdcxx-4.2.1/include   -I/data2c/stdcxx-4.2.1/build/include   -L/data2c/stdcxx-4.2.1/build/lib   -R/data2c/stdcxx-4.2.1/build/lib   -lstd8D
450.soplex:  -fast   -xipo=2   -xpagesize=2M   -xrestrict   -xalias_level=simple   -xdepend   -xprefetch=no%auto   -library=stlport4
453.povray:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xalias_level=compatible   -library=stlport4

Fortran benchmarks:

410.bwaves:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xprefetch=no%auto   -xautopar   -xreduction
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xunroll=1   -qoption iropt -Ainline:cp=19   -qoption iropt -Ainline:rs=50   -qoption iropt -Ainline:irs=30
434.zeusmp:  -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction
437.leslie3d:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xvector=simd   -xautopar   -xreduction   -lumem
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -m64   -xpagesize=2M   -xvector=simd   -xautopar   -xreduction
465.tonto:  -fast   -xipo=2   -m64   -xpagesize=2M   -xautopar   -stackvar   -xreduction   -xprefetch=no%auto   -xvector=lib   -xalias   -xdepend

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -fsimple=2   -Qoption ube -fsimple=3   -xprefetch=no%auto   -xautopar   -xreduction
436.cactusADM:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -xipo=2   -m64   -xvector=simd   -xautopar   -W2,-Aparallel:nthreads=16   -Qoption iropt -Aparallel:nthreads=16
454.calculix:  -fast(cc)   -fast(f90)   -xipo=2   -m64   -xpagesize=2M   -xvector=simd
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -V   -#   -xjobs=16

C++ benchmarks:

 -verbose=diags,version   -xjobs=16

Fortran benchmarks:

 -V   -v   -xjobs=16

Benchmarks using both Fortran and C:

 -V   -#   -xjobs=16   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-OpenSolaris-Studio-x86_64.20090710.00.xml.
