SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge R905 (AMD Opteron 8387, 2.80 GHz)

SPECint®2006 = 20.9

CPU2006 license: 55 Test date: Mar-2009
Test sponsor: Dell Inc. Hardware Availability: May-2009
Tested by: Dell Inc. Software Availability: Oct-2008

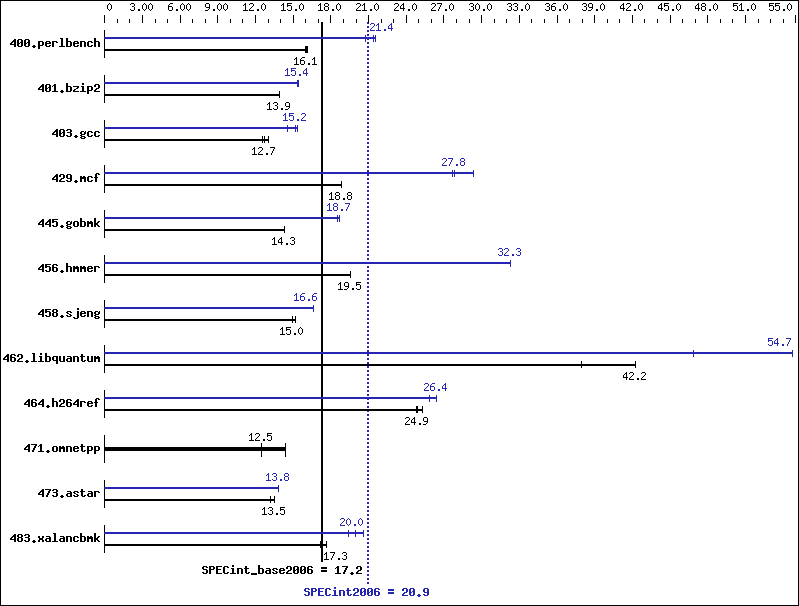

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8387
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 16 cores, 4 chips, 4 cores/chip
CPU(s) orderable: 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 64 GB (16 x 4 GB DDR2-800)
Disk Subsystem: 1 x 73 GB 10000 RPM SAS
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP2,
Kernel 2.6.16.60-0.21-smp
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.2
Auto Parallel: No
File System: ReiserFS
System State: Run level 3 (multi-user)
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
32-bit and 64-bit libhugetlbfs libraries
SmartHeap 8.1 32-bit Library for Linux

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 607 16.1 608 16.1 611 16.0 453 21.6 456 21.4 470 20.8
401.bzip2 695 13.9 695 13.9 695 13.9 627 15.4 628 15.4 627 15.4
403.gcc 633 12.7 643 12.5 619 13.0 530 15.2 525 15.3 553 14.6
429.mcf 484 18.8 484 18.8 484 18.8 311 29.4 328 27.8 330 27.7
445.gobmk 732 14.3 734 14.3 732 14.3 566 18.5 562 18.7 562 18.7
456.hmmer 477 19.5 478 19.5 478 19.5 289 32.3 289 32.3 289 32.3
458.sjeng 799 15.2 809 15.0 809 15.0 728 16.6 728 16.6 730 16.6
462.libquantum 490 42.3 491 42.2 546 37.9 442 46.9 379 54.7 379 54.7
464.h264ref 893 24.8 876 25.3 890 24.9 855 25.9 837 26.4 837 26.4
471.omnetpp 500 12.5 434 14.4 500 12.5 500 12.5 434 14.4 500 12.5
473.astar 532 13.2 520 13.5 521 13.5 507 13.8 507 13.8 508 13.8
483.xalancbmk 392 17.6 402 17.2 399 17.3 335 20.6 356 19.4 346 20.0

Submit Notes

The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation RPMs that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=14336 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

General Notes

Environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd909gh-libs/64:/root/cpu2006-1.1/amd909gh-libs/32"

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline:10   -tp barcelona-32   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks (except as noted below):

 pathcc
456.hmmer:  pgcc
462.libquantum:  pgcc

C++ benchmarks (except as noted below):

 pgcpp
483.xalancbmk:  pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -Ofast   -IPA:plimit=20000   -IPA:field_reorder=on   -LNO:opt=0   -WOPT:if_conv=0   -CG:local_sched_alg=1
401.bzip2:  -march=barcelona   -O3   -OPT:alias=disjoint   -OPT:Ofast   -OPT:goto=off   -INLINE:aggressive=on   -CG:local_sched_alg=1   -m3dnow   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
403.gcc:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -OPT:malloc_alg=1   -LNO:trip_count=256   -LNO:prefetch_ahead=10   -CG:prefer_lru_reg=off   -m32
429.mcf:  -march=barcelona   -O3   -ipa   -INLINE:aggressive=on   -CG:gcm=off   -GRA:prioritize_by_density=on   -m32   -L/usr/lib -lhugetlbfs
445.gobmk:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O3   -OPT:alias=restrict   -LNO:prefetch=1   -LNO:ignore_feedback=off   -CG:p2align=on
456.hmmer:  -Mvect=cachesize:6291456   -fastsse   -Mvect=partial   -Munroll=n:8   -Msmartalloc=huge   -Msafeptr   -Mprefetch=t0   -Mfprelaxed   -Mipa=const   -Mipa=ptr   -Mipa=arg   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
458.sjeng:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O3   -ipa   -LNO:ignore_feedback=off   -LNO:full_unroll=10   -LNO:fusion=0   -LNO:fission=2   -IPA:pu_reorder=2   -CG:ptr_load_use=0   -OPT:unroll_times_max=8   -INLINE:aggressive=on
462.libquantum:  -Mvect=cachesize:6291456   -fastsse   -Munroll=m:8   -Msmartalloc=huge   -Mprefetch=distance:4   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -Mipa=noarg   -tp barcelona-64   -Bstatic_pgi
464.h264ref:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0   -CG:ptr_load_use=0   -CG:push_pop_int_saved_regs=off   -CG:prefer_lru_reg=off

C++ benchmarks:

471.omnetpp:  basepeak = yes
473.astar:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline:6(pass 2)   -Mvect=cachesize:6291456   -fastsse   -O4   -Msmartalloc=huge   -Msafeptr=global   -Mfprelaxed   --zc_eh   -tp barcelona-32   -Bstatic_pgi
483.xalancbmk:  -march=barcelona   -Ofast   -INLINE:aggressive=on   -m32   -L/root/work/libraries/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

456.hmmer:  -Mipa=jobs:4
462.libquantum:  -Mipa=jobs:4

C++ benchmarks (except as noted below):

 -Mipa=jobs:4(pass 2)
483.xalancbmk:  No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090710.html,
http://www.spec.org/cpu2006/flags/pathscale32-flags.html,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/pathscale32-flags.xml,
http://www.spec.org/cpu2006/flags/amd-platform-amd909gh.xml.
