SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM Power 550 (5.0 GHz, 8 core)

CPU2006 license: 11 Test date: Apr-2009
Test sponsor: IBM Corporation Hardware Availability: May-2009
Tested by: IBM Corporation Software Availability: May-2009

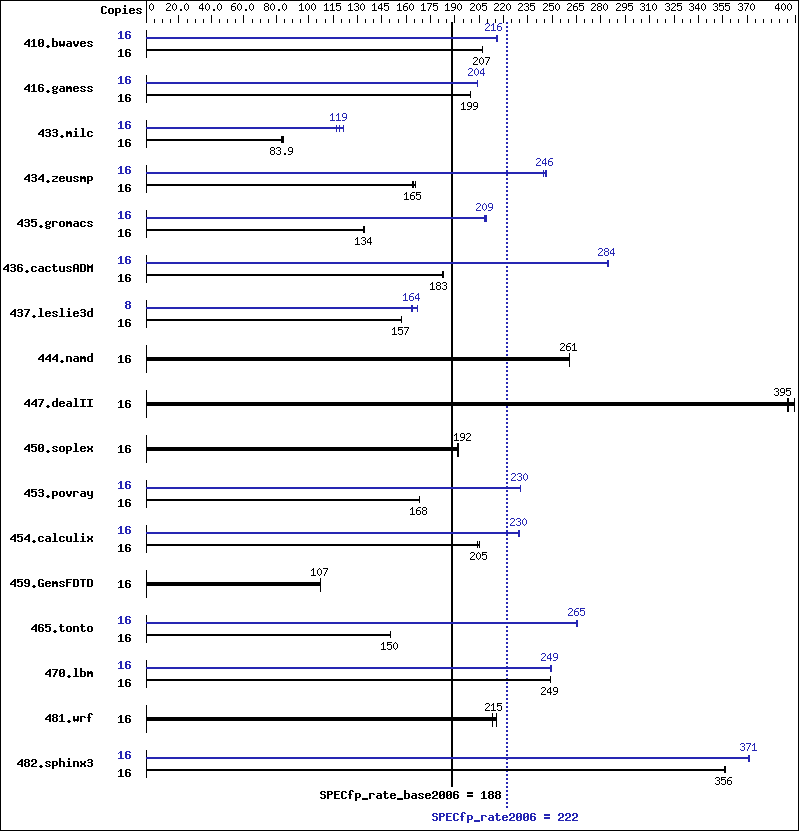

Benchmark results graph
Hardware
CPU Name: POWER6+
CPU Characteristics:
CPU MHz: 5000
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 2,4,6,8 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 128 GB (32x4 GB) DDR2 667 MHz
Disk Subsystem: 2x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: IBM AIX V6.1
with the 6100-03 Technology Level
Compiler: XL C/C++ Enterprise Edition V10.1.0.2 for AIX
XL Fortran Enterprise Edition V12.1.0.3 for AIX
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 1051 207   1050 207   1051 207   16 1007 216 1007 216 1007 216
416.gamess 16 1571 199   1570 200   1571 199   16 1535 204 1538 204 1537 204
433.milc 16 1752 83.9 1772 82.9 1735 84.7 16 1208 122 1254 117 1234 119
434.zeusmp 16 888 164   884 165   880 165   16 592 246 591 246 595 245
435.gromacs 16 852 134   853 134   852 134   16 545 210 547 209 548 208
436.cactusADM 16 1046 183   1046 183   1050 182   16 672 285 673 284 673 284
437.leslie3d 16 958 157   958 157   958 157   8 458 164 460 163 451 167
444.namd 16 493 261   492 261   493 260   16 493 261 492 261 493 260
447.dealII 16 463 395   459 399   463 395   16 463 395 459 399 463 395
450.soplex 16 696 192   695 192   694 192   16 696 192 695 192 694 192
453.povray 16 505 168   505 168   506 168   16 370 230 370 230 370 230
454.calculix 16 647 204   643 205   643 205   16 574 230 574 230 575 229
459.GemsFDTD 16 1583 107   1583 107   1582 107   16 1583 107 1583 107 1582 107
465.tonto 16 1047 150   1046 150   1046 150   16 593 265 594 265 594 265
470.lbm 16 884 249   884 249   884 249   16 883 249 882 249 882 249
481.wrf 16 838 213   829 216   830 215   16 838 213 829 216 830 215
482.sphinx3 16 875 356   876 356   874 357   16 839 372 840 371 840 371

Peak Tuning Notes

 fdpr binary optimization tool used for 410.bwaves
  with options -bf -bp -ece -lap -las -nop -nopr -pto
  -RC -RD -rmte -so -tlo -A 64 -lu 6 -rt 0.10 -ihf 60
  -sdpla 32 -sdpms 32 -shci 10 -si -siht 15 -lun 32
 fdpr binary optimization tool used for 433.milc
 435.gromacs 437.leslie3d 453.povray
 454.calculix 481.wrf 482.sphinx3
  with options -O4 -vrox -pbsi
 fdpr binary optimization tool used for 434.zeusmp 470.lbm
  with options -O3 -vrox -sdp 9

Submit Notes

 The config file option 'submit' was used
 to assign benchmark copy to specific kernel thread using
 the "bindprocessor" command (see flags file for details).

Operating System Notes

 all ulimits set to unlimited.
 2000 16M large pages defined with vmo command

Platform Notes

 System set to "Enhanced" mode when defining partition on HMC.

General Notes

Environment variables set by runspec before the start of the run:
MALLOCOPTIONS = "pool"
MEMORY_AFFINITY = "MCM"
XLFRTEOPTS = "intrinthds=1"

 See the flags file for details on settings.

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -blpdata

C++ benchmarks:

 -bmaxdata:0x50000000   -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -D__IBM_FAST_SET_MAP_ITERATOR   -blpdata

Fortran benchmarks:

 -bmaxdata:0x60000000   -O5   -qlargepage   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Benchmarks using both Fortran and C:

 -bmaxdata:0x60000000   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qalias=nostd   -blpdata

Base Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc   -qlanglvl=extc99

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   -qlanglvl=extc99   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -bmaxdata:0x40000000   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qfdpr   -blpdata
470.lbm:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
482.sphinx3:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qfdpr   -blpdata

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qalign=natural   -qfdpr   -btextpsize:64K

Fortran benchmarks:

410.bwaves:  -bmaxdata:0x50000000   -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -qsmallstack=dynlenonheap   -blpdata
416.gamess:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qalias=nostd   -blpdata
434.zeusmp:  -bmaxdata:0x40000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qlargepage   -qenablevmx   -qvecnvol   -qxlf90=nosignedzero   -qfdpr   -blpdata
437.leslie3d:  -O5   -qlargepage   -qenablevmx   -qvecnvol   -qfdpr   -blpdata
459.GemsFDTD:  basepeak = yes
465.tonto:  -bmaxdata:0x50000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K

Benchmarks using both Fortran and C:

435.gromacs:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -D_ILS_MACROS   -qfdpr
436.cactusADM:  -bmaxdata:0x60000000   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -qenablevmx   -qvecnvol   -D_ILS_MACROS   -qfdpr   -qnostrict   -bdatapsize:64K   -bstackpsize:64K   -btextpsize:64K
454.calculix:  -O4   -qlargepage   -q64   -D_ILS_MACROS   -qfdpr   -blpdata
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

C++ benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-036

Fortran benchmarks:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -qipa=threads   -qipa=noobject   -qsuppress=1500-010   -qsuppress=cmpmsg   -qsuppress=1500-036

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-XL.html,
http://www.spec.org/cpu2006/flags/IBM-AIX.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/IBM-XL.xml,
http://www.spec.org/cpu2006/flags/IBM-AIX.xml.
