SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter JS23 Express (4.2 GHz, 4 core,
SLES)

CPU2006 license: 11 Test date: Mar-2009
Test sponsor: IBM Corporation Hardware Availability: May-2009
Tested by: IBM Corporation Software Availability: Mar-2009

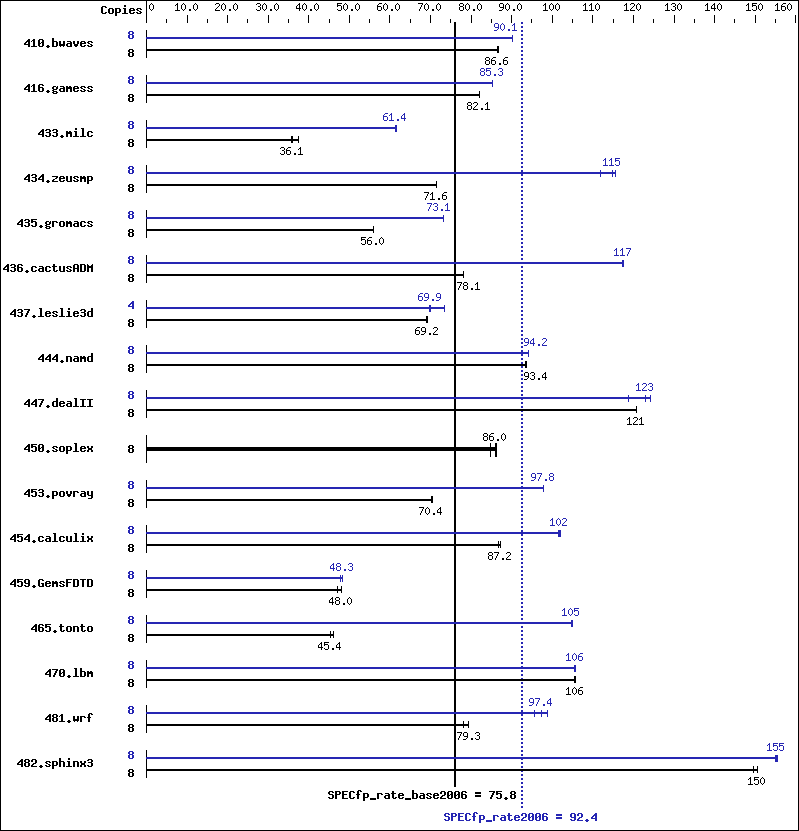

Benchmark results graph
Hardware
CPU Name: POWER6+
CPU Characteristics:
CPU MHz: 4200
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 4 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB) DDR2 667 MHz
Disk Subsystem: 1x146 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11
Compiler: IBM XL C/C++ for Linux, V10.1
Updated with the Mar2009 PTF.
IBM XL Fortran for Linux, V12.1
Updated with the Mar2009 PTF.
Auto Parallel: No
File System: ext3
System State: Run Level 3 (Multi-User)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, Version 5.4.0-21
-MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1255 86.7 1255 86.6 1255 86.6 8 1207 90.1 1207 90.1 1206 90.1
416.gamess 8 1909 82.1 1908 82.1 1909 82.1 8 1835 85.3 1837 85.3 1835 85.4
433.milc 8 2034 36.1 1965 37.4 2049 35.8 8 1197 61.4 1194 61.5 1196 61.4
434.zeusmp 8 1017 71.6 1017 71.6 1020 71.4 8 629 116   634 115   651 112
435.gromacs 8 1021 56.0 1020 56.0 1021 56.0 8 781 73.1 782 73.1 781 73.1
436.cactusADM 8 1225 78.1 1224 78.1 1224 78.1 8 814 117   813 118   814 117
437.leslie3d 8 1087 69.2 1087 69.2 1088 69.1 4 539 69.8 512 73.5 538 69.9
444.namd 8 687 93.4 687 93.4 686 93.6 8 681 94.2 681 94.2 682 94.0
447.dealII 8 758 121   758 121   758 121   8 770 119   744 123   737 124
450.soplex 8 776 86.0 787 84.8 773 86.4 8 776 86.0 787 84.8 773 86.4
453.povray 8 605 70.4 605 70.4 605 70.3 8 435 97.8 435 98.0 435 97.7
454.calculix 8 761 86.8 756 87.4 757 87.2 8 648 102   649 102   647 102
459.GemsFDTD 8 1769 48.0 1805 47.0 1768 48.0 8 1756 48.3 1777 47.8 1757 48.3
465.tonto 8 1734 45.4 1707 46.1 1734 45.4 8 751 105   751 105   750 105
470.lbm 8 1041 106   1041 106   1041 106   8 1041 106   1041 106   1040 106
481.wrf 8 1125 79.4 1126 79.3 1144 78.1 8 917 97.4 933 95.7 904 98.8
482.sphinx3 8 1036 150   1043 150   1035 151   8 1004 155   1002 156   1006 155

Submit Notes

The config file option 'submit' was used.
 Benchmarks bound to a processor using numactl on the submit command.

General Notes

 kernel release 2.6.27.19-5-ppc64.
 See flags file for details on following settings.
 ulimit -s (stack) set to 1048576.
 System configured with libhugetlbfs library for application access to large
 Large pages reserved as follows by root user:
     echo 530 > /proc/sys/vm/nr_hugepages
 Environment variables set before executing benchmarks.
     export HUGETLB_VERBOSE=0
     export HUGETLB_MORECORE=yes
     export XLFRTEOPTS=intrinthds=1
 IBM Post-Link optimization tool was used for these benchmarks, with options
    433.milc : "-imullX" (instrumentation phase), "-O4 -omullX" (optimizatio
    435.gromacs : same as 433.milc
    436.cactusADM : same as 433.milc
    482.sphinx3 : same as 433.milc
    453.povray : "-imullX" (instrumentation phase), "-O4 -omullX -see 1 -ihf -1" (optimization phase)
    465.tonto : "-O4" (optimization phase)

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -lhugetlbfs

C++ benchmarks:

 -O5   -qarch=pwr6   -qtune=pwr6   -qrtti   -qnoenablevmx   -qstaticlink   -Wl,--whole-archive /usr/lib/libhugetlbfs.a   -Wl,--no-whole-archive

Fortran benchmarks:

 -O5   -qarch=pwr6   -qtune=pwr6   -qsmallstack=dynlenonheap   -qalias=nostd   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT

Benchmarks using both Fortran and C:

 -O5   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -qsmallstack=dynlenonheap   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -Wl,-q   -O5   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -lhugetlbfs
470.lbm:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr6   -qtune=pwr6   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qarch=pwr6   -qtune=pwr6   -lhugetlbfs

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6
447.dealII:  -O5   -qarch=pwr6   -qtune=pwr6   -qrtti   -qnoenablevmx   -qstaticlink   -Wl,--whole-archive /usr/lib/libsmartheap.a   -Wl,--no-whole-archive
450.soplex:  basepeak = yes
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -lsmartheap

Fortran benchmarks:

410.bwaves:  -O5   -qarch=pwr6   -qtune=pwr6   -qsmallstack=dynlenonheap   -lhugetlbfs
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -qalias=nostd   -qnoenablevmx
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr6   -qtune=pwr6   -qxlf90=nosignedzero   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
437.leslie3d:  -O5   -qarch=pwr6   -qtune=pwr6   -qsmallstack=dynlenonheap   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
459.GemsFDTD:  -O5   -qarch=pwr6   -qtune=pwr6   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -q64   -lsmartheap64   -lxlf90_r

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qarch=pwr6   -qtune=pwr6   -lhugetlbfs
436.cactusADM:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=pwr6   -qtune=pwr6   -qnostrict   -lhugetlbfs
454.calculix:  -O4   -qarch=pwr6   -qtune=pwr6   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
481.wrf:  -O5   -qarch=pwr6   -qtune=pwr6   -qnoenablevmx   -q64   -lhugetlbfs

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.xml.
