SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge M605 (AMD Opteron 2387, 2.80 GHz)

SPECfp®2006 = 23.4

CPU2006 license: 55 Test date: May-2009
Test sponsor: Dell Inc. Hardware Availability: May-2009
Tested by: Dell Inc. Software Availability: Jun-2008

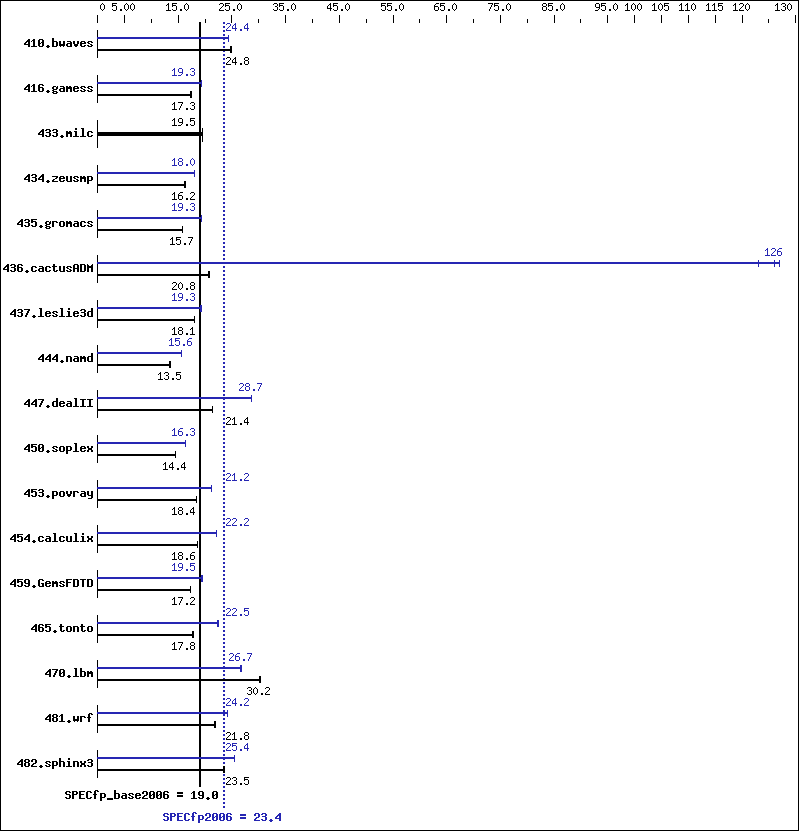

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2387
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 512 KB I+D on chip per core
L3 Cache: 6 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (8 x 4 GB DDR2-800)
Disk Subsystem: 1 x 80 GB 7200 RPM SATA
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux Server release 5.3,
Kernel 2.6.18-128.el5
Compiler: PGI Server Complete Version 7.2
PathScale Compiler Suite Version 3.2
Auto Parallel: Yes
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: binutils 2.18
32-bit and 64-bit libhugetlbfs libraries

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 546 24.9 548 24.8 549 24.8 559   24.3 558   24.4 557   24.4
416.gamess 1127 17.4 1137 17.2 1130 17.3 1012   19.3 1013   19.3 1010   19.4
433.milc 470 19.5 470 19.5 470 19.5 470   19.5 470   19.5 470   19.5
434.zeusmp 561 16.2 561 16.2 559 16.3 505   18.0 507   17.9 506   18.0
435.gromacs 453 15.7 453 15.8 454 15.7 369   19.3 371   19.2 371   19.3
436.cactusADM 578 20.7 575 20.8 574 20.8 97.0 123   94.0 127   94.8 126
437.leslie3d 520 18.1 520 18.1 521 18.1 488   19.3 489   19.2 485   19.4
444.namd 597 13.4 595 13.5 596 13.5 515   15.6 515   15.6 514   15.6
447.dealII 535 21.4 535 21.4 535 21.4 400   28.6 398   28.7 399   28.7
450.soplex 578 14.4 577 14.5 578 14.4 510   16.4 511   16.3 512   16.3
453.povray 290 18.3 289 18.4 289 18.4 250   21.3 252   21.1 250   21.2
454.calculix 443 18.6 442 18.6 442 18.7 372   22.2 372   22.2 372   22.2
459.GemsFDTD 615 17.3 615 17.2 616 17.2 545   19.5 547   19.4 545   19.5
465.tonto 552 17.8 555 17.7 553 17.8 440   22.4 437   22.5 438   22.5
470.lbm 455 30.2 455 30.2 454 30.3 515   26.7 516   26.6 513   26.8
481.wrf 511 21.8 510 21.9 512 21.8 461   24.2 460   24.3 461   24.2
482.sphinx3 828 23.5 826 23.6 829 23.5 766   25.5 768   25.4 767   25.4

Submit Notes

 The config file option 'submit' was used.
 'numactl' was used to bind copies to the cores

Operating System Notes

 The libhugetlbfs libraries were installed using the
 installation rpms that came with the distribution.

 'ulimit -s unlimited' was used to set environment stack size
 'ulimit -l 2097152'  was used to set environment locked pages in memory limit

 Set vm/nr_hugepages=7146 in /etc/sysctl.conf
 mount -t hugetlbfs nodev /mnt/hugepages

Platform Notes

HyperTransport Technology = HT 1 (Default = HT 3)

General Notes

environment variables set by runspec before the start of the run:
HUGETLB_MORECORE = "yes"
LD_LIBRARY_PATH = "/root/cpu2006-1.1/amd909gh-libs/64:/root/cpu2006-1.1/amd909gh-libs/32"
NCPUS = "8"

Base Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks:

 pgcpp

Fortran benchmarks:

 pgf95

Benchmarks using both Fortran and C:

 pgcc   pgf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -Mnomain
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   --zc_eh   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Fortran benchmarks:

 -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc=huge   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Benchmarks using both Fortran and C:

 -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi

Base Other Flags

C benchmarks:

 -Mipa=jobs:4

C++ benchmarks:

 -Mipa=jobs:4

Fortran benchmarks:

 -Mipa=jobs:4

Benchmarks using both Fortran and C:

 -Mipa=jobs:4

Peak Compiler Invocation

C benchmarks:

 pgcc

C++ benchmarks (except as noted below):

 pathCC
444.namd:  pgcpp

Fortran benchmarks (except as noted below):

 pgf95
416.gamess:  pathf95
459.GemsFDTD:  pathf95
465.tonto:  pathf95

Benchmarks using both Fortran and C (except as noted below):

 pathcc   pathf95
436.cactusADM:  pgcc   pgf95
454.calculix:  pgcc   pgf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -Mnomain
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -Mnomain
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mloop32   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
482.sphinx3:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Msmartalloc   -tp barcelona-64   -Bstatic_pgi

C++ benchmarks:

444.namd:  -Mpfi(pass 1)   -Mpfo(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Munroll=n:4   -Munroll=m:8   -Msmartalloc=huge   -Mnodepchk   -Mfprelaxed   --zc_eh   -tp barcelona-64   -Bstatic_pgi
447.dealII:  -march=barcelona   -Ofast   -static   -INLINE:aggressive=on   -fno-exceptions   -m32
450.soplex:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -L/usr/lib -lhugetlbfs(pass 2)   -O3   -INLINE:aggressive=on   -OPT:IEEE_arith=3   -OPT:IEEE_NaN_Inf=off   -OPT:fold_unsigned_relops=on   -OPT:malloc_alg=1   -CG:load_exe=0   -fno-exceptions   -m32
453.povray:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -INLINE:aggressive=on

Fortran benchmarks:

410.bwaves:  -Mvect=cachesize:6291456   -fastsse   -Msmartalloc   -Mprefetch=nta   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
416.gamess:  -march=barcelona   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT(pass 2)   -L/usr/lib64 -lhugetlbfs(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Mvect=cachesize:6291456   -fastsse   -Mfprelaxed   -Mprefetch=distance:8   -Mprefetch=t0   -Msmartalloc=huge   -Msmartalloc=hugebss   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
437.leslie3d:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Mvect=fuse   -Msmartalloc=huge   -Mprefetch=distance:8   -Mprefetch=t0   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
459.GemsFDTD:  -march=barcelona   -Ofast   -LNO:fission=2   -LNO:simd=2   -LNO:prefetch_ahead=1   -CG:load_exe=0   -CG:prefer_lru_reg=off   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
465.tonto:  -march=barcelona   -Ofast   -OPT:alias=no_f90_pointer_alias   -LNO:blocking=off   -CG:load_exe=1   -IPA:plimit=525   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs

Benchmarks using both Fortran and C:

435.gromacs:  -march=barcelona   -Ofast   -OPT:rsqrt=2   -OPT:malloc_alg=1   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs
436.cactusADM:  -Mvect=cachesize:6291456   -fastsse   -Mconcur   -Msmartalloc=huge   -Mfprelaxed   -Mipa=fast   -Mipa=inline   -tp barcelona-64   -Bstatic_pgi
454.calculix:  -Mpfi=indirect(pass 1)   -Mpfo=indirect(pass 2)   -Mipa=fast(pass 2)   -Mipa=inline(pass 2)   -Mvect=cachesize:6291456   -fastsse   -Msmartalloc=huge   -Mprefetch=t0   -Mpre   -Mfprelaxed   -tp barcelona-64   -Bstatic_pgi
481.wrf:  -march=barcelona   -Ofast   -LNO:blocking=off   -LNO:prefetch_ahead=10   -LANG:copyinout=off   -IPA:callee_limit=5000   -GRA:prioritize_by_density=on   -OPT:malloc_alg=1   -m3dnow   -Wl,-T/usr/share/libhugetlbfs/ldscripts/elf_x86_64.xBDT   -L/usr/lib64 -lhugetlbfs

Peak Other Flags

C benchmarks:

 -Mipa=jobs:4(pass 2)

C++ benchmarks:

444.namd:  -Mipa=jobs:4(pass 2)

Fortran benchmarks (except as noted below):

 -Mipa=jobs:4(pass 2)
416.gamess:  No flags used
459.GemsFDTD:  No flags used
465.tonto:  No flags used

Benchmarks using both Fortran and C (except as noted below):

 -Mipa=jobs:4(pass 2)
435.gromacs:  No flags used
481.wrf:  No flags used

The flags files that were used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090710.html,
http://www.spec.org/cpu2006/flags/pathscale32-flags.html,
http://www.spec.org/cpu2006/flags/amd-platform.html.

You can also download the XML flags sources by saving the following links:
http://www.spec.org/cpu2006/flags/pgi72_linux_flags.20090710.xml,
http://www.spec.org/cpu2006/flags/pathscale32-flags.xml,
http://www.spec.org/cpu2006/flags/amd-platform.xml.
