SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Lenovo T400 (Intel Core 2 Duo T9900)

SPECfp®2006 = 21.2

CPU2006 license: 13 Test date: Mar-2009
Test sponsor: Intel Corporation Hardware Availability: Mar-2009
Tested by: Intel Corporation Software Availability: Nov-2008

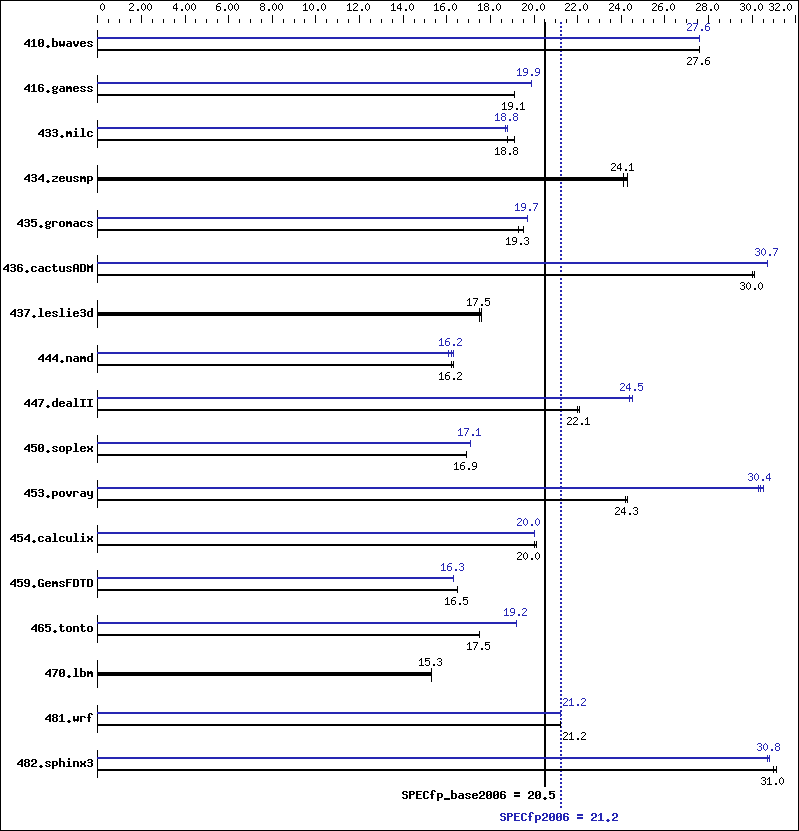

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo T9900
CPU Characteristics:
CPU MHz: 3066
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1GB Micron DDR3-1066 CL7)
Disk Subsystem: Hitachi HTS722020K9SA00 200GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows XP Professional w/ SP2 (64-bit)
Compiler: Intel C++ Compiler Professional 11.0 for IA32
Build 20080930 Package ID: w_cproc_p_11.0.054
Intel Visual Fortran Compiler Professional 11.0
for IA32
Build 20080930 Package ID: w_cprof_p_11.0.054
Microsoft Visual Studio 2008 (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 493 27.6 492 27.6 492 27.6 492 27.6 493 27.6 492 27.6
416.gamess 1027 19.1 1027 19.1 1027 19.1 983 19.9 984 19.9 983 19.9
433.milc 480 19.1 489 18.8 488 18.8 490 18.8 490 18.7 489 18.8
434.zeusmp 375 24.3 378 24.1 377 24.1 375 24.3 378 24.1 377 24.1
435.gromacs 367 19.5 371 19.3 370 19.3 363 19.7 362 19.7 362 19.7
436.cactusADM 398 30.1 399 30.0 399 30.0 389 30.7 389 30.7 389 30.7
437.leslie3d 535 17.6 537 17.5 537 17.5 535 17.6 537 17.5 537 17.5
444.namd 493 16.3 496 16.2 496 16.2 494 16.3 497 16.1 494 16.2
447.dealII 520 22.0 517 22.1 517 22.1 467 24.5 467 24.5 469 24.4
450.soplex 493 16.9 493 16.9 493 16.9 487 17.1 487 17.1 487 17.1
453.povray 220 24.2 219 24.3 219 24.3 175 30.3 175 30.4 175 30.5
454.calculix 411 20.1 412 20.0 412 20.0 412 20.0 412 20.0 412 20.0
459.GemsFDTD 643 16.5 642 16.5 642 16.5 649 16.3 649 16.3 650 16.3
465.tonto 562 17.5 562 17.5 562 17.5 514 19.2 513 19.2 513 19.2
470.lbm 898 15.3 898 15.3 898 15.3 898 15.3 898 15.3 898 15.3
481.wrf 527 21.2 527 21.2 527 21.2 527 21.2 527 21.2 527 21.2
482.sphinx3 628 31.0 629 31.0 628 31.1 632 30.8 636 30.7 634 30.8

General Notes

 The system bus runs at 1066 MHz
 Binaries were built on Windows Vista Ultimate (32-bit)
 OMP_NUM_THREADS set to number of logical processors as seen by the OS
 KMP_AFFINITY set to physical,0

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

C++ benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   -Qcxx-features   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Benchmarks using both Fortran and C:

 -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qparallel   -Qopt-prefetch   /F1000000000

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qc99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

433.milc:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000
470.lbm:  basepeak = yes
482.sphinx3:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qunroll2   /F1000000000

C++ benchmarks:

444.namd:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qansi-alias   -Qscalar-rep-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   /F1000000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000
416.gamess:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F1000000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Ob0   -Qopt-prefetch   -Qparallel   /F1000000000
465.tonto:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000
436.cactusADM:  -QxSSE4.1(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qopt-prefetch   -Qparallel   /F1000000000
454.calculix:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   /F1000000000
481.wrf:  -QxSSE4.1   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qparallel   /F1000000000

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-win32-revA.xml.
