CPU2006 license: | 55 | Test date: | Apr-2009 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | Mar-2009 |
Tested by: | Dell Inc. | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5502 |
CPU Characteristics: | |
CPU MHz: | 1867 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 4 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6 x 4 GB DDR3-1066 DR RDIMM downclocked to 800 MHz) |
Disk Subsystem: | 1 x 160 GB 7200 RPM SATA |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler Professional 11.0 Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

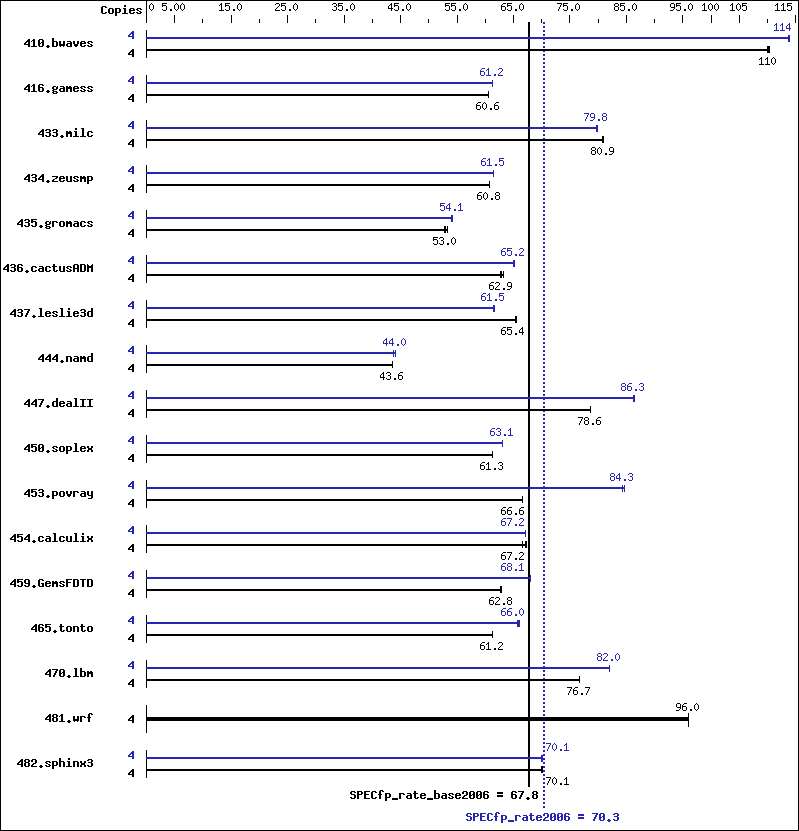

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 4 | 494 | 110 | 493 | 110 | 493 | 110 | 4 | 478 | 114 | 477 | 114 | 478 | 114 |
416.gamess | 4 | 1292 | 60.6 | 1293 | 60.6 | 1293 | 60.6 | 4 | 1280 | 61.2 | 1279 | 61.2 | 1279 | 61.3 |
433.milc | 4 | 454 | 80.9 | 454 | 80.9 | 454 | 80.8 | 4 | 460 | 79.8 | 460 | 79.8 | 461 | 79.7 |
434.zeusmp | 4 | 600 | 60.7 | 598 | 60.8 | 598 | 60.8 | 4 | 592 | 61.5 | 592 | 61.5 | 593 | 61.4 |
435.gromacs | 4 | 537 | 53.2 | 541 | 52.8 | 539 | 53.0 | 4 | 528 | 54.1 | 528 | 54.1 | 527 | 54.1 |
436.cactusADM | 4 | 757 | 63.2 | 763 | 62.7 | 760 | 62.9 | 4 | 733 | 65.3 | 736 | 64.9 | 733 | 65.2 |
437.leslie3d | 4 | 575 | 65.4 | 574 | 65.5 | 576 | 65.3 | 4 | 611 | 61.5 | 610 | 61.6 | 612 | 61.4 |
444.namd | 4 | 737 | 43.6 | 736 | 43.6 | 735 | 43.6 | 4 | 728 | 44.1 | 734 | 43.7 | 729 | 44.0 |
447.dealII | 4 | 582 | 78.6 | 582 | 78.6 | 582 | 78.6 | 4 | 531 | 86.2 | 530 | 86.3 | 530 | 86.4 |
450.soplex | 4 | 544 | 61.3 | 545 | 61.3 | 545 | 61.3 | 4 | 529 | 63.1 | 529 | 63.0 | 529 | 63.1 |
453.povray | 4 | 319 | 66.6 | 319 | 66.7 | 319 | 66.6 | 4 | 252 | 84.3 | 251 | 84.6 | 252 | 84.3 |
454.calculix | 4 | 491 | 67.2 | 491 | 67.2 | 495 | 66.6 | 4 | 491 | 67.2 | 491 | 67.2 | 491 | 67.2 |
459.GemsFDTD | 4 | 677 | 62.7 | 674 | 62.9 | 675 | 62.8 | 4 | 623 | 68.1 | 623 | 68.1 | 624 | 68.1 |
465.tonto | 4 | 643 | 61.2 | 641 | 61.4 | 643 | 61.2 | 4 | 596 | 66.0 | 597 | 66.0 | 599 | 65.7 |
470.lbm | 4 | 717 | 76.7 | 717 | 76.6 | 717 | 76.7 | 4 | 671 | 82.0 | 670 | 82.0 | 670 | 82.0 |
481.wrf | 4 | 466 | 96.0 | 465 | 96.0 | 465 | 96.1 | 4 | 466 | 96.0 | 465 | 96.0 | 465 | 96.1 |
482.sphinx3 | 4 | 1113 | 70.1 | 1115 | 69.9 | 1110 | 70.2 | 4 | 1113 | 70.1 | 1111 | 70.1 | 1115 | 69.9 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort | |
437.leslie3d: | ifort -m32 |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) |
437.leslie3d: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
