| CPU2006 license: | 11 | Test date: | Jun-2009 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Apr-2009 |
| Tested by: | IBM Corporation | Software Availability: | Feb-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon L5506 |
| CPU Characteristics: | |
| CPU MHz: | 2133 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 24 GB (12 x 2 GB PC3-10600R, 2 Rank, running at 800 MHz) |
| Disk Subsystem: | 1 x 73 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 (x86_64) SP2 with Linux patch kernel 20090119, Kernel 2.6.16.60-0.34-smp |
| Compiler: | Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Run level 3 (multi-user) |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

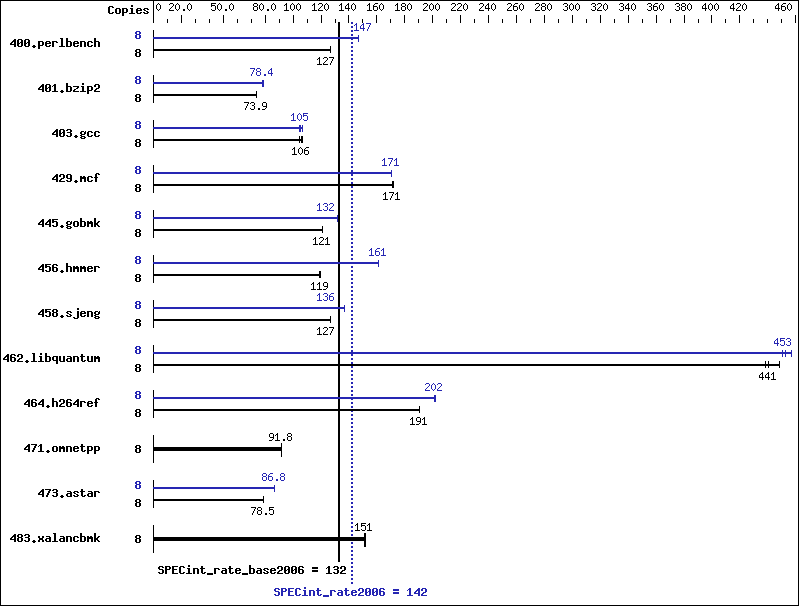

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 617 | 127 | 617 | 127 | 617 | 127 | 8 | 532 | 147 | 533 | 147 | 532 | 147 |
| 401.bzip2 | 8 | 1044 | 73.9 | 1044 | 73.9 | 1043 | 74.0 | 8 | 985 | 78.4 | 986 | 78.3 | 984 | 78.4 |
| 403.gcc | 8 | 615 | 105 | 606 | 106 | 605 | 106 | 8 | 611 | 105 | 605 | 106 | 615 | 105 |
| 429.mcf | 8 | 427 | 171 | 425 | 172 | 427 | 171 | 8 | 427 | 171 | 428 | 170 | 428 | 171 |
| 445.gobmk | 8 | 692 | 121 | 692 | 121 | 693 | 121 | 8 | 637 | 132 | 636 | 132 | 637 | 132 |
| 456.hmmer | 8 | 626 | 119 | 626 | 119 | 626 | 119 | 8 | 462 | 161 | 463 | 161 | 463 | 161 |
| 458.sjeng | 8 | 762 | 127 | 762 | 127 | 762 | 127 | 8 | 709 | 137 | 709 | 136 | 709 | 136 |
| 462.libquantum | 8 | 376 | 441 | 378 | 439 | 370 | 448 | 8 | 366 | 453 | 368 | 451 | 363 | 457 |
| 464.h264ref | 8 | 928 | 191 | 929 | 191 | 929 | 191 | 8 | 880 | 201 | 879 | 202 | 877 | 202 |
| 471.omnetpp | 8 | 544 | 91.9 | 545 | 91.8 | 547 | 91.4 | 8 | 544 | 91.9 | 545 | 91.8 | 547 | 91.4 |
| 473.astar | 8 | 715 | 78.5 | 716 | 78.5 | 715 | 78.5 | 8 | 647 | 86.8 | 647 | 86.8 | 647 | 86.9 |
| 483.xalancbmk | 8 | 365 | 151 | 364 | 152 | 365 | 151 | 8 | 365 | 151 | 364 | 152 | 365 | 151 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
General Notes
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run Processor CPU C-States Enabled
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3 -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc | |
| 401.bzip2: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 456.hmmer: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
| 458.sjeng: | /opt/intel/Compiler/11.0/080/bin/intel64/icc |
C++ benchmarks (except as noted below):
| icpc | |
| 473.astar: | /opt/intel/Compiler/11.0/080/bin/intel64/icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
C++ benchmarks:
| 471.omnetpp: | basepeak = yes |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
