| CPU2006 license: | 4 | Test date: | Jul-2009 |
|---|---|---|---|
| Test sponsor: | SGI | Hardware Availability: | Nov-2007 |
| Tested by: | SGI | Software Availability: | Jul-2009 |
| Hardware | |
|---|---|
| CPU Name: | Dual-Core Intel Itanium 2 9040 |
| CPU Characteristics: | 533MHz FSB |
| CPU MHz: | 1594 |
| FPU: | Integrated |
| CPU(s) enabled: | 1024 cores, 512 chips, 2 cores/chip |
| CPU(s) orderable: | 8 to 512 blades with 1 chip per blade |
| Primary Cache: | 16 KB I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I + 256 KB D on chip per core |
| L3 Cache: | 9 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 4 TB (8*1GB DDR2-400 DIMMS per blade) |
| Disk Subsystem: | 279 TB RAID5 1024 x 300 GB FC (Hitachi Ultrastar 10k rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 (ia64) SP2, Kernel 2.6.16.60-0.35.PTF.352893.0-default |
| Compiler: | Intel Fortran Compiler for Linux 11.1 (Build 20090630) Intel C++ Compiler for Linux 11.1 (Build 20090630) |
| Auto Parallel: | No |
| File System: | xfs |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | SGI ProPack 6 Service Pack 2 |

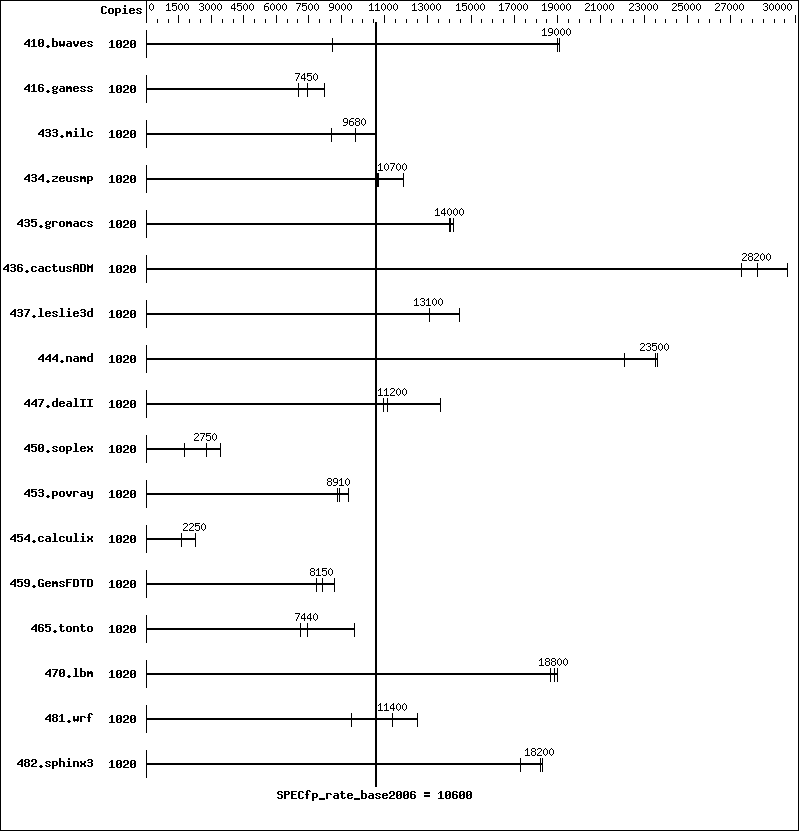

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 1020 | 1616 | 8580 | 726 | 19100 | 729 | 19000 | |||||||
| 416.gamess | 1020 | 2679 | 7450 | 2839 | 7030 | 2435 | 8200 | |||||||
| 433.milc | 1020 | 967 | 9680 | 881 | 10600 | 1096 | 8540 | |||||||
| 434.zeusmp | 1020 | 865 | 10700 | 869 | 10700 | 782 | 11900 | |||||||
| 435.gromacs | 1020 | 513 | 14200 | 518 | 14000 | 521 | 14000 | |||||||
| 436.cactusADM | 1020 | 432 | 28200 | 443 | 27500 | 412 | 29600 | |||||||
| 437.leslie3d | 1020 | 734 | 13100 | 733 | 13100 | 664 | 14400 | |||||||
| 444.namd | 1020 | 370 | 22100 | 346 | 23600 | 348 | 23500 | |||||||
| 447.dealII | 1020 | 1064 | 11000 | 1046 | 11200 | 858 | 13600 | |||||||
| 450.soplex | 1020 | 2484 | 3420 | 4788 | 1780 | 3090 | 2750 | |||||||
| 453.povray | 1020 | 614 | 8830 | 609 | 8910 | 581 | 9340 | |||||||
| 454.calculix | 1020 | 3735 | 2250 | 5182 | 1620 | 3715 | 2260 | |||||||
| 459.GemsFDTD | 1020 | 1329 | 8150 | 1375 | 7870 | 1244 | 8700 | |||||||
| 465.tonto | 1020 | 1409 | 7120 | 1044 | 9610 | 1349 | 7440 | |||||||
| 470.lbm | 1020 | 751 | 18700 | 738 | 19000 | 744 | 18800 | |||||||
| 481.wrf | 1020 | 1001 | 11400 | 1202 | 9480 | 910 | 12500 | |||||||
| 482.sphinx3 | 1020 | 1091 | 18200 | 1152 | 17300 | 1087 | 18300 | |||||||
Submit Notes
The config file option 'submit' was used.
General Notes
Processes were bound to CPUs using dplace. limit stacksize unlimited System was configured with 4-cpu boot cpuset echo 0 > /dev/cpuset/memory_spread_page runspec was launched from root cpuset
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LINUX -DSPEC_CPU_LINUX64_IPF |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast -fp-relaxed -opt-prefetch-issue-excl-hint -ansi-alias |
C++ benchmarks:
| -fast -fp-relaxed -opt-prefetch-issue-excl-hint -ansi-alias |
Fortran benchmarks:
| -fast -fp-relaxed -opt-prefetch-issue-excl-hint |
Benchmarks using both Fortran and C:
| -fast -fp-relaxed -opt-prefetch-issue-excl-hint -ansi-alias |
