CPU2006 license: | 6 | Test date: | Aug-2009 |
---|---|---|---|
Test sponsor: | Sun Microsystems | Hardware Availability: | Apr-2009 |
Tested by: | Sun Microsystems | Software Availability: | Nov-2008 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5540 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.80 GHz |
CPU MHz: | 2534 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 or 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6x4 GB DDR3-1333 downclocked to 1066 MHz) |
Disk Subsystem: | 1 x 134 GB, SAS, 10 K RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20080930 Package ID: l_cproc_p_11.0.066, l_cprof_p_11.0.066 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | None |

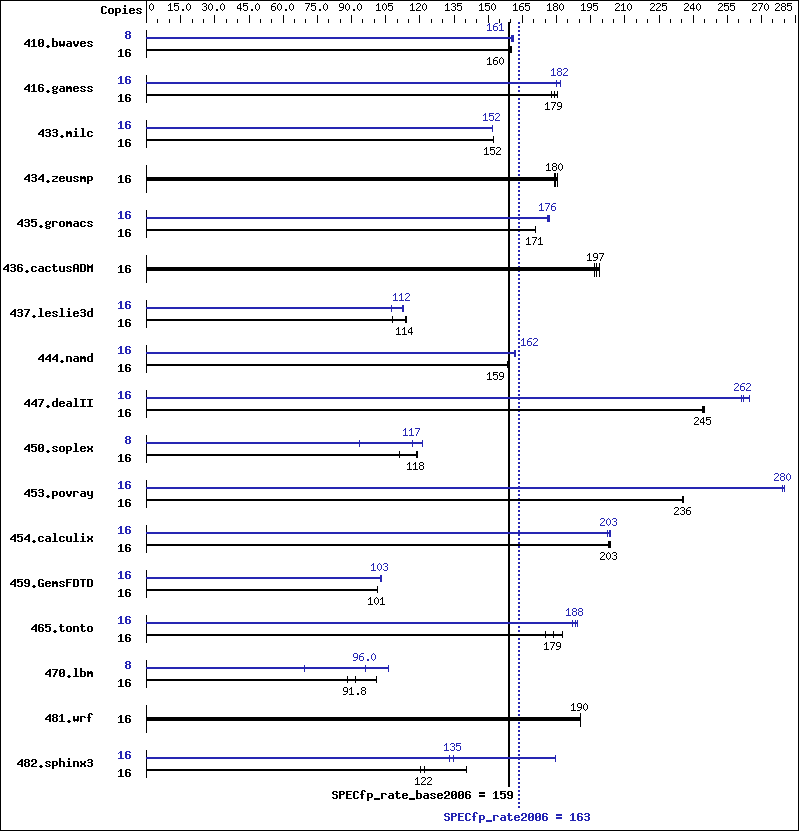

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 16 | 1361 | 160 | 1356 | 160 | 1357 | 160 | 8 | 679 | 160 | 676 | 161 | 677 | 161 |
416.gamess | 16 | 1737 | 180 | 1748 | 179 | 1763 | 178 | 16 | 1723 | 182 | 1724 | 182 | 1739 | 180 |
433.milc | 16 | 966 | 152 | 964 | 152 | 964 | 152 | 16 | 967 | 152 | 967 | 152 | 968 | 152 |
434.zeusmp | 16 | 810 | 180 | 812 | 179 | 808 | 180 | 16 | 810 | 180 | 812 | 179 | 808 | 180 |
435.gromacs | 16 | 669 | 171 | 669 | 171 | 669 | 171 | 16 | 648 | 176 | 649 | 176 | 646 | 177 |
436.cactusADM | 16 | 969 | 197 | 971 | 197 | 962 | 199 | 16 | 969 | 197 | 971 | 197 | 962 | 199 |
437.leslie3d | 16 | 1320 | 114 | 1318 | 114 | 1392 | 108 | 16 | 1337 | 112 | 1331 | 113 | 1400 | 107 |
444.namd | 16 | 810 | 158 | 808 | 159 | 808 | 159 | 16 | 795 | 161 | 794 | 162 | 792 | 162 |
447.dealII | 16 | 750 | 244 | 747 | 245 | 748 | 245 | 16 | 699 | 262 | 701 | 261 | 692 | 265 |
450.soplex | 16 | 1204 | 111 | 1128 | 118 | 1122 | 119 | 8 | 712 | 93.7 | 550 | 121 | 571 | 117 |
453.povray | 16 | 362 | 235 | 361 | 236 | 361 | 236 | 16 | 304 | 280 | 304 | 280 | 305 | 279 |
454.calculix | 16 | 648 | 204 | 650 | 203 | 650 | 203 | 16 | 648 | 204 | 650 | 203 | 652 | 202 |
459.GemsFDTD | 16 | 1676 | 101 | 1676 | 101 | 1677 | 101 | 16 | 1645 | 103 | 1653 | 103 | 1653 | 103 |
465.tonto | 16 | 881 | 179 | 863 | 182 | 899 | 175 | 16 | 841 | 187 | 836 | 188 | 833 | 189 |
470.lbm | 16 | 2494 | 88.1 | 2394 | 91.8 | 2179 | 101 | 8 | 1588 | 69.2 | 1146 | 96.0 | 1033 | 106 |
481.wrf | 16 | 938 | 190 | 939 | 190 | 937 | 191 | 16 | 938 | 190 | 939 | 190 | 937 | 191 |
482.sphinx3 | 16 | 2552 | 122 | 2594 | 120 | 2217 | 141 | 16 | 2346 | 133 | 2316 | 135 | 1736 | 180 |
The config file option 'submit' was used. numactl was used to bind copies to the cores.
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Default BIOS settings used.
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
-xSSE4.2 -ipo -O3 -no-prec-div -static |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort | |
437.leslie3d: | ifort -m32 |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -auto-ilp32 |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 -opt-prefetch |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | basepeak = yes |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | basepeak = yes |
