SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu

Fujitsu SPARC Enterprise M8000

SPECint®2006 = 13.6

CPU2006 license: 19 Test date: Jul-2009
Test sponsor: Fujitsu Hardware Availability: Nov-2009
Tested by: Fujitsu Software Availability: Jun-2009

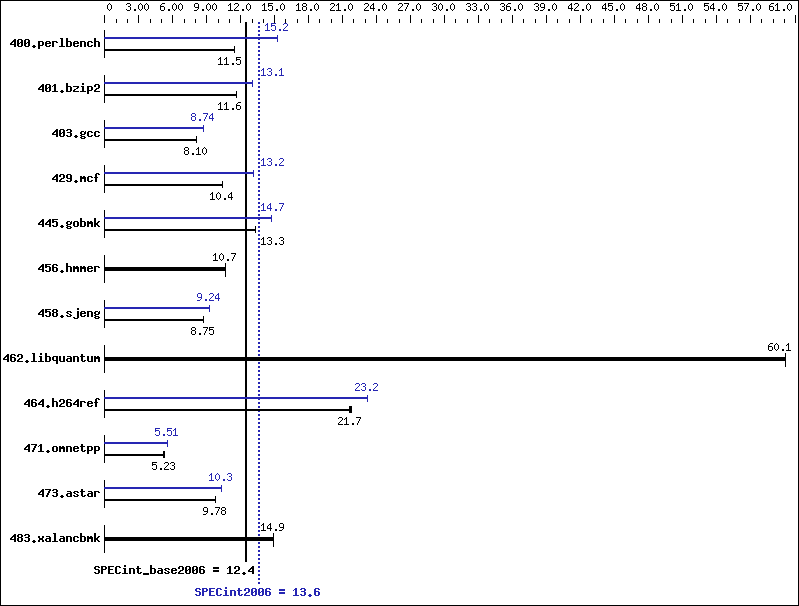

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2880
FPU: Integrated
CPU(s) enabled: 64 cores, 16 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 to 4 CMUs; each CMU contains 2 or 4 CPU chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 384 GB (64 x 2 GB + 64 x 4 GB), 8-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Other Hardware: None
Software
Operating System: Solaris 10 5/09 with patches 119963-13,
120753-06, 118683-03
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 853 11.5  853 11.5  854 11.4  641 15.2  642 15.2  642 15.2
401.bzip2 831 11.6  831 11.6  831 11.6  739 13.1  739 13.1  738 13.1
403.gcc 998 8.07 991 8.12 994 8.10 921 8.74 921 8.74 921 8.74
429.mcf 881 10.4  880 10.4  881 10.4  693 13.2  693 13.2  694 13.1
445.gobmk 786 13.3  786 13.3  786 13.3  711 14.7  711 14.7  711 14.7
456.hmmer 874 10.7  874 10.7  874 10.7  874 10.7  874 10.7  874 10.7
458.sjeng 1383 8.75 1383 8.75 1385 8.74 1310 9.24 1309 9.24 1309 9.24
462.libquantum 345 60.1  345 60.1  345 60.1  345 60.1  345 60.1  345 60.1
464.h264ref 1018 21.7  1024 21.6  1019 21.7  954 23.2  953 23.2  954 23.2
471.omnetpp 1194 5.23 1194 5.23 1195 5.23 1135 5.51 1134 5.51 1132 5.52
473.astar 717 9.79 718 9.78 718 9.78 679 10.3  679 10.3  679 10.3
483.xalancbmk 463 14.9  463 14.9  463 14.9  463 14.9  463 14.9  463 14.9

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=300
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=3
       Set maximum percent memory for file system cache.
    lpg_alloc_prefer=1
       Set lgroup page allocation to strongly prefer local pages.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 8-way interleaved by filling each CMU's slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M8000 Server.
 Note that the Fujitsu SPARC Enterprise M8000 and Sun SPARC Enterprise
 M8000 are electrically equivalent.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=1   -xalias_level=std   -ll2amm

C++ benchmarks:

 -xdepend   -library=stlport4   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=compatible   -lfast

Base Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_SOLARIS_SPARC
403.gcc:  -DSPEC_CPU_SOLARIS
462.libquantum:  -DSPEC_CPU_SOLARIS
483.xalancbmk:  -DSPEC_CPU_SOLARIS

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xipo=2   -xalias_level=std   -xprefetch_level=1   -xrestrict   -lfast
401.bzip2:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xalias_level=strong
403.gcc:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xipo=2   -xalias_level=std   -xprefetch=no   -ll2amm
429.mcf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xprefetch_level=3   -W2,-Apf:llist=3   -W2,-Apf:noinnerllist   -Wc,-Qlp-prt=1   -Wc,-Qlp-prwt=3
445.gobmk:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -fma=fused   -xalias_level=std   -xrestrict
456.hmmer:  basepeak = yes
458.sjeng:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2
462.libquantum:  basepeak = yes
464.h264ref:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xipo=2   -xalias_level=std   -xprefetch=no   -ll2amm

C++ benchmarks:

471.omnetpp:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -fma=fused   -xipo=2   -xprefetch_level=2   -Qoption cg -Qlp-av=0   -lfast
473.astar:  -xdepend   -library=stlport4   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xpagesize=4M   -xalias_level=compatible   -fma=fused   -xipo=2   -xprefetch_level=2   -xprefetch=latx:0.5   -lfast
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

 -xjobs=16   -V   -#

C++ benchmarks:

 -xjobs=16   -verbose=diags,version

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
