CPU2006 license: | 19 | Test date: | Oct-2009 |
---|---|---|---|
Test sponsor: | Fujitsu | Hardware Availability: | Apr-2009 |
Tested by: | Fujitsu | Software Availability: | Feb-2009 |
Hardware | |
---|---|
CPU Name: | Intel Xeon E5530 |
CPU Characteristics: | Intel Turbo Boost Technology up to 2.67 GHz |
CPU MHz: | 2400 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 24 GB (6x4 GB PC3 10600R, 2 rank, ECC, running at 1066 MHz) |
Disk Subsystem: | 1 x SATA II, 400 GB, 7200 rpm |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SuSe Linux Enterprise Server 10 (x86_64) SP2, kernel 2.6.16.60-0.21-smp |
Compiler: | Intel C++ and Fortran Compiler 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080, l_cprof_p_11.0.080 |
Auto Parallel: | Yes |
File System: | ext3 |
System State: | Multi-User Run Level 3 |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Binutils 2.18.50.0.7.20080502 |

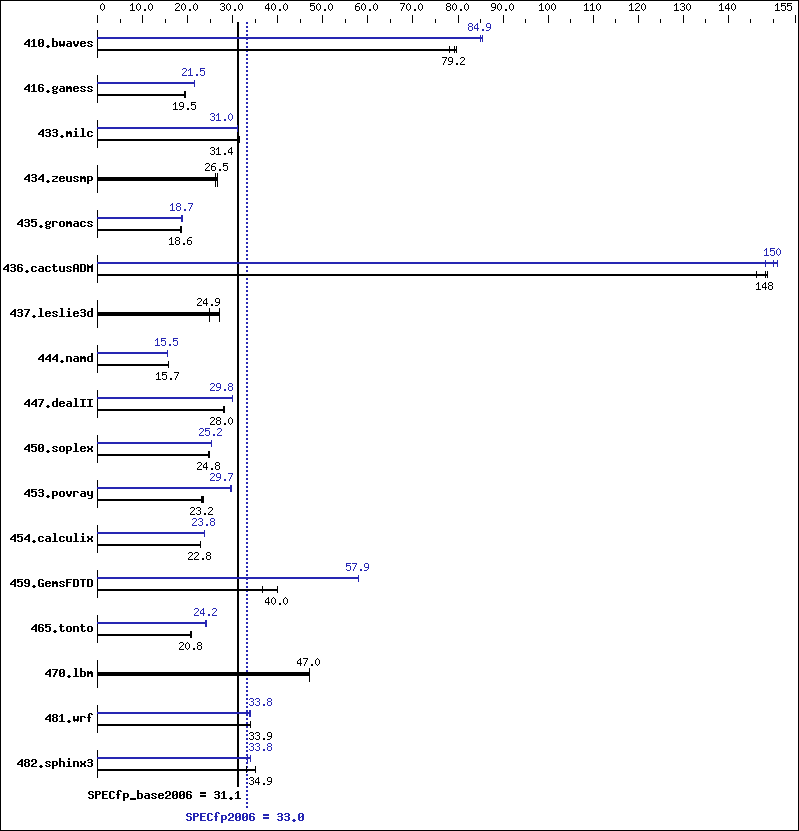

Benchmark | Base | Peak | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
410.bwaves | 174 | 78.0 | 171 | 79.6 | 172 | 79.2 | 159 | 85.4 | 160 | 84.9 | 160 | 84.9 |
416.gamess | 1014 | 19.3 | 1005 | 19.5 | 1006 | 19.5 | 914 | 21.4 | 912 | 21.5 | 912 | 21.5 |
433.milc | 292 | 31.5 | 293 | 31.3 | 292 | 31.4 | 295 | 31.1 | 296 | 31.0 | 297 | 31.0 |
434.zeusmp | 347 | 26.2 | 343 | 26.6 | 343 | 26.5 | 347 | 26.2 | 343 | 26.6 | 343 | 26.5 |
435.gromacs | 384 | 18.6 | 387 | 18.5 | 384 | 18.6 | 383 | 18.6 | 381 | 18.7 | 380 | 18.8 |
436.cactusADM | 80.4 | 149 | 81.6 | 146 | 80.6 | 148 | 79.6 | 150 | 80.6 | 148 | 79.2 | 151 |
437.leslie3d | 378 | 24.8 | 377 | 24.9 | 348 | 27.0 | 378 | 24.8 | 377 | 24.9 | 348 | 27.0 |
444.namd | 512 | 15.7 | 512 | 15.7 | 512 | 15.7 | 519 | 15.4 | 519 | 15.5 | 519 | 15.5 |
447.dealII | 409 | 28.0 | 408 | 28.0 | 408 | 28.0 | 383 | 29.9 | 383 | 29.8 | 384 | 29.8 |
450.soplex | 336 | 24.8 | 338 | 24.7 | 336 | 24.8 | 332 | 25.2 | 331 | 25.2 | 331 | 25.2 |
453.povray | 229 | 23.2 | 227 | 23.5 | 230 | 23.1 | 179 | 29.8 | 180 | 29.6 | 179 | 29.7 |
454.calculix | 362 | 22.8 | 362 | 22.8 | 361 | 22.8 | 347 | 23.8 | 347 | 23.8 | 347 | 23.8 |
459.GemsFDTD | 265 | 40.0 | 265 | 40.0 | 290 | 36.6 | 183 | 57.9 | 183 | 57.8 | 183 | 57.9 |
465.tonto | 472 | 20.9 | 478 | 20.6 | 473 | 20.8 | 407 | 24.2 | 406 | 24.2 | 412 | 23.9 |
470.lbm | 292 | 47.1 | 292 | 47.0 | 292 | 47.0 | 292 | 47.1 | 292 | 47.0 | 292 | 47.0 |
481.wrf | 330 | 33.9 | 330 | 33.8 | 329 | 33.9 | 332 | 33.7 | 329 | 33.9 | 330 | 33.8 |
482.sphinx3 | 558 | 34.9 | 592 | 32.9 | 556 | 35.1 | 584 | 33.4 | 576 | 33.9 | 576 | 33.8 |
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
BIOS configuration: Hyper-Threading Technology set to Disabled.
OMP_NUM_THREADS set to number of cores KMP_AFFINITY set to granularity=fine,scatter KMP_STACKSIZE set to 200M For information about Fujitsu please visit: http://www.fujitsu.com
icc |
icpc |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
450.soplex: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
482.sphinx3: | -DSPEC_CPU_LP64 |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -static -parallel -opt-prefetch |
icc | |
482.sphinx3: | icc -m32 |
icpc | |
450.soplex: | icpc -m32 |
ifort |
icc ifort |
410.bwaves: | -DSPEC_CPU_LP64 |
416.gamess: | -DSPEC_CPU_LP64 |
433.milc: | -DSPEC_CPU_LP64 |
434.zeusmp: | -DSPEC_CPU_LP64 |
435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
437.leslie3d: | -DSPEC_CPU_LP64 |
444.namd: | -DSPEC_CPU_LP64 |
447.dealII: | -DSPEC_CPU_LP64 |
453.povray: | -DSPEC_CPU_LP64 |
454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
459.GemsFDTD: | -DSPEC_CPU_LP64 |
465.tonto: | -DSPEC_CPU_LP64 |
470.lbm: | -DSPEC_CPU_LP64 |
481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
433.milc: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias |
470.lbm: | basepeak = yes |
482.sphinx3: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 |
444.namd: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -fno-alias -auto-ilp32 |
447.dealII: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias -scalar-rep- -opt-prefetch |
450.soplex: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-malloc-options=3 |
453.povray: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -ansi-alias |
410.bwaves: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel |
416.gamess: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -ansi-alias -scalar-rep- |
434.zeusmp: | basepeak = yes |
437.leslie3d: | basepeak = yes |
459.GemsFDTD: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -Ob0 -opt-prefetch -parallel |
465.tonto: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto |
435.gromacs: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -auto-ilp32 |
436.cactusADM: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -opt-prefetch -parallel -auto-ilp32 |
454.calculix: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 |
481.wrf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch -parallel -auto-ilp32 |
