SPEC® CINT2006 Result

Dell Inc.

PowerEdge R510 (Intel Xeon E5504, 2.00 GHz)

Hardware
CPU Name:	Intel Xeon E5504
CPU Characteristics:
CPU MHz:	2000
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	4 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (6 x 4 GB DDR3-1333 DR RDIMM downclocked to 800 MHz)
Disk Subsystem:	1 x 500 GB 7200 RPM SATA
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

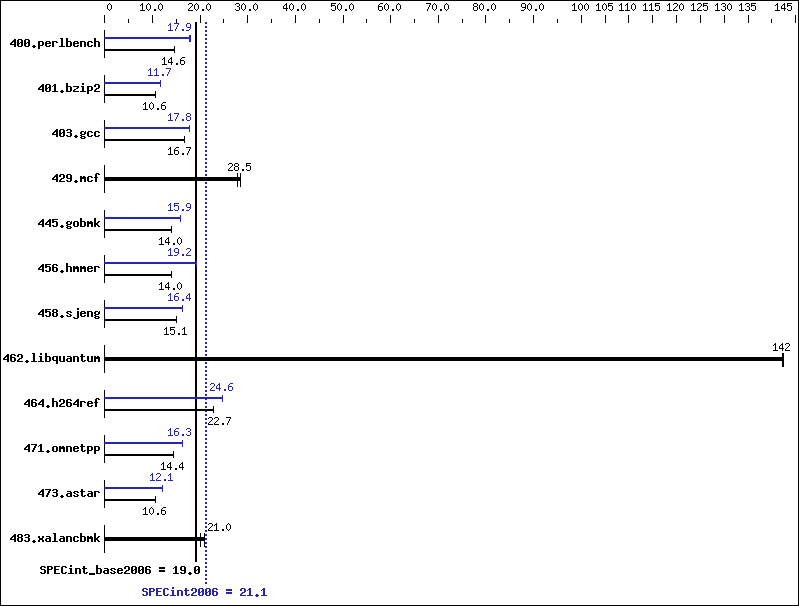

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	669	14.6	668	14.6	671	14.6	546	17.9	546	17.9	546	17.9
401.bzip2	907	10.6	906	10.7	910	10.6	820	11.8	822	11.7	822	11.7
403.gcc	481	16.7	483	16.7	482	16.7	453	17.8	453	17.8	453	17.8
429.mcf	328	27.8	320	28.5	320	28.5	328	27.8	320	28.5	320	28.5
445.gobmk	747	14.0	748	14.0	748	14.0	662	15.9	661	15.9	663	15.8
456.hmmer	668	14.0	668	14.0	668	14.0	485	19.2	485	19.2	485	19.2
458.sjeng	800	15.1	800	15.1	800	15.1	739	16.4	739	16.4	739	16.4
462.libquantum	146	142	145	142	146	142	146	142	145	142	146	142
464.h264ref	970	22.8	973	22.7	974	22.7	899	24.6	899	24.6	899	24.6
471.omnetpp	435	14.4	436	14.4	434	14.4	384	16.3	384	16.3	384	16.3
473.astar	664	10.6	663	10.6	663	10.6	579	12.1	580	12.1	581	12.1
483.xalancbmk	328	21.0	342	20.2	328	21.0	328	21.0	342	20.2	328	21.0

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to granularity=fine,scatter

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.0/080/bin/intel64/icc

	icpc
473.astar:	/opt/intel/Compiler/11.0/080/bin/intel64/icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	basepeak = yes
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:
