SPEC® CINT2006 Result

Dell Inc.

PowerEdge R510 (Intel Xeon X5560, 2.80 GHz)

Hardware
CPU Name:	Intel Xeon X5560
CPU Characteristics:	Intel Turbo Boost Technology up to 3.20 GHz
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	8 cores, 2 chips, 4 cores/chip, 2 threads/core
CPU(s) orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	8 MB I+D on chip per chip
Other Cache:	None
Memory:	24 GB (6 x 4 GB DDR3-1333 DR RDIMM)
Disk Subsystem:	1 x 500 GB 7200 RPM SATA
Other Hardware:	None

Software
Operating System:	SUSE Linux Enterprise Server 10 (x86_64) SP2, Kernel 2.6.16.60-0.21-smp
Compiler:	Intel C++ Compiler Professional 11.0 for Linux Build 20090131 Package ID: l_cproc_p_11.0.080
Auto Parallel:	Yes
File System:	ReiserFS
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502

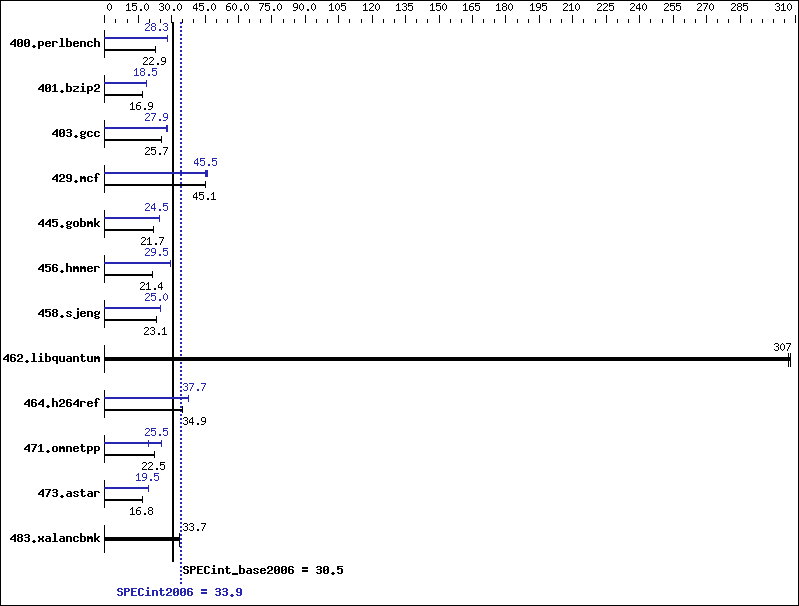

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	426	22.9	426	22.9	426	22.9	346	28.3	345	28.3	346	28.3
401.bzip2	572	16.9	572	16.9	572	16.9	520	18.5	520	18.6	521	18.5
403.gcc	314	25.7	314	25.7	314	25.6	289	27.9	288	28.0	288	27.9
429.mcf	202	45.2	202	45.1	202	45.1	197	46.3	202	45.3	200	45.5
445.gobmk	483	21.7	483	21.7	482	21.7	428	24.5	427	24.5	428	24.5
456.hmmer	435	21.4	435	21.4	436	21.4	316	29.5	316	29.5	316	29.5
458.sjeng	524	23.1	524	23.1	524	23.1	488	24.8	483	25.0	483	25.0
462.libquantum	67.5	307	67.3	308	67.5	307	67.5	307	67.3	308	67.5	307
464.h264ref	634	34.9	634	34.9	634	34.9	586	37.8	586	37.7	586	37.7
471.omnetpp	277	22.5	278	22.5	279	22.4	321	19.5	244	25.6	245	25.5
473.astar	418	16.8	418	16.8	418	16.8	360	19.5	361	19.5	361	19.4
483.xalancbmk	206	33.6	205	33.7	205	33.7	206	33.6	205	33.7	205	33.7

'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

 OMP_NUM_THREADS set to number of cores
 KMP_AFFINITY set to granularity=fine,scatter

icc

icpc

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.0/080/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.0/080/bin/intel64/icc

	icpc
473.astar:	/opt/intel/Compiler/11.0/080/bin/intel64/icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias -opt-prefetch
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -auto-ilp32 -opt-prefetch -ansi-alias
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static -inline-calloc -opt-malloc-options=3
429.mcf:	-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -auto-ilp32 -Wl,-z,muldefs -L/spec/cpu2006.1.1/lib -lsmartheap64
483.xalancbmk:	basepeak = yes

403.gcc:
