SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun SPARC Enterprise M3000

CPU2006 license: 6 Test date: Oct-2009
Test sponsor: Sun Microsystems Hardware Availability: Jan-2010
Tested by: Fujitsu Software Availability: Oct-2009

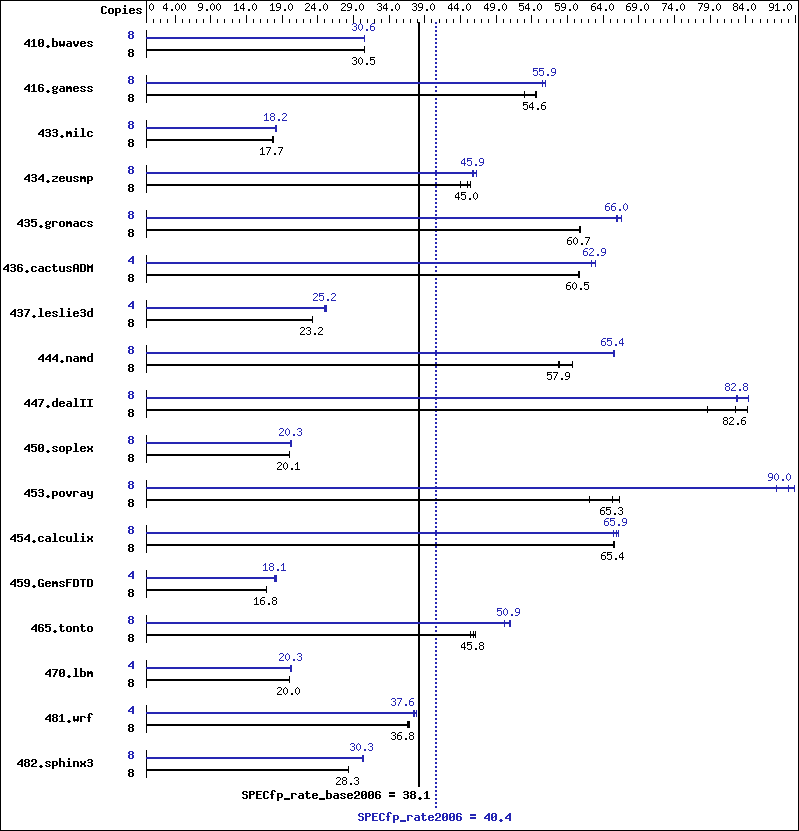

Benchmark results graph
Hardware
CPU Name: SPARC64 VII
CPU Characteristics:
CPU MHz: 2750
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 5 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2 GB), 2-way interleaved
Disk Subsystem: 1 x Seagate Savvio 10K.2 (146 GB 10,000 RPM SAS)
Other Hardware: None
Software
Operating System: Solaris 10 10/09 with patch 119963-18
Compiler: Sun Studio 12 Update 1
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Apache C++ Standard Library V4.2.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3566 30.5 3558 30.6 3564 30.5 8 3565 30.5 3554 30.6 3552 30.6
416.gamess 8 2869 54.6 2871 54.6 2958 53.0 8 2801 55.9 2799 56.0 2819 55.6
433.milc 8 4147 17.7 4142 17.7 4141 17.7 8 4064 18.1 4043 18.2 4041 18.2
434.zeusmp 8 1654 44.0 1617 45.0 1603 45.4 8 1587 45.9 1573 46.3 1593 45.7
435.gromacs 8 940 60.7 941 60.7 938 60.9 8 867 65.8 858 66.6 865 66.0
436.cactusADM 8 1580 60.5 1579 60.5 1577 60.6 4 766 62.4 760 62.9 760 62.9
437.leslie3d 8 3240 23.2 3241 23.2 3225 23.3 4 1504 25.0 1495 25.2 1486 25.3
444.namd 8 1112 57.7 1107 57.9 1075 59.7 8 980 65.4 980 65.4 978 65.6
447.dealII 8 1108 82.6 1087 84.2 1164 78.6 8 1105 82.8 1106 82.7 1085 84.4
450.soplex 8 3333 20.0 3323 20.1 3324 20.1 8 3317 20.1 3279 20.3 3282 20.3
453.povray 8 652 65.3 642 66.3 685 62.1 8 469 90.8 482 88.3 473 90.0
454.calculix 8 1009 65.4 1006 65.6 1009 65.4 8 997 66.2 1008 65.5 1001 65.9
459.GemsFDTD 8 5063 16.8 5027 16.9 5062 16.8 4 2375 17.9 2345 18.1 2336 18.2
465.tonto 8 1705 46.2 1732 45.4 1718 45.8 8 1570 50.1 1542 51.0 1546 50.9
470.lbm 8 5493 20.0 5485 20.0 5484 20.0 4 2725 20.2 2713 20.3 2707 20.3
481.wrf 8 2430 36.8 2427 36.8 2440 36.6 4 1194 37.4 1188 37.6 1181 37.8
482.sphinx3 8 5498 28.4 5501 28.3 5502 28.3 8 5156 30.2 5125 30.4 5139 30.3

Compiler Invocation Notes

Sun Studio compiler patches are available at
   http://developers.sun.com/sunstudio/downloads/patches/ss12u1_patches.jsp

The Apache C++ Standard Library V4.2.1 was installed from
   http://stdcxx.apache.org/download.html using:
     alias gmake=specmake
     gmake BUILDTYPE=8d CONFIG=sunpro.config

Submit Notes

The config file option 'submit' was used.  Processes were assigned to
specific processors using 'pbind' commands.  The list of processors to use
was provided in the 'BIND' variable, to generate the pbind commands.
(For details, please see the config file.)

Operating System Notes


Shell Environments:

    ulimit -s 131072 was used to limit the space consumed
    by the stack.(making more space available for the heap)

System Tunables:
(/etc/system parameters)

    tune_t_fsflushr=10
       Controls how many seconds elapse between runs of the
       page flush daemon, fsflush.
    autoup=600
       Causes pages older than the listed number of seconds to
       be written by fsflush.
    bufhwm=3000
       Memory byte limit for caching I/O buffers.
    segmap_percent=1
       Set maximum percent memory for file system cache.

Other System Settings:

    The webconsole service was turned off using svcadm disable webconsole.

Platform Notes


 Memory is 2-way interleaved by filling all slots with the same
 capacity DIMMs.

 This result is measured on a Fujitsu SPARC Enterprise M3000 Server.
 Note that the Fujitsu SPARC Enterprise M3000 and Sun SPARC Enterprise
 M3000 are electrically equivalent.

General Notes

447.dealII (peak): "apache_stdcxx_4_2_1" src.alt was used.

447.dealII (base): "apache_stdcxx_4_2_1" src.alt was used.

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Optimization Flags

C benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -ll2amm

C++ benchmarks:

 -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:0.5   -library=no%Cstd   -I/export/cpu2006-v1.1/stdcxx-4.2.1/include   -I/export/cpu2006-v1.1/stdcxx-4.2.1/build/include   -L/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -lstd8d

Fortran benchmarks:

 -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -ll2amm

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=std   -xprefetch_auto_type=indirect_array_access   -xprefetch_level=3   -xprefetch_level=2   -ll2amm

Base Other Flags

C benchmarks:

 -xjobs=4   -V   -#

C++ benchmarks:

 -xjobs=4   -verbose=diags,version

Fortran benchmarks:

 -xjobs=4   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=4   -V   -#   -v

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Optimization Flags

C benchmarks:

433.milc:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=2   -fsimple=1   -xprefetch_auto_type=indirect_array_access   -W2,-Ainline:rs=400   -xalias_level=std
470.lbm:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xarch=generic   -xvector   -xprefetch_level=3
482.sphinx3:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xinline=   -xprefetch=no%auto   -xalias_level=strong   -lfast   -ll2amm

C++ benchmarks:

444.namd:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=1   -xprefetch=no%auto   -xlinkopt=2   -xunroll=2
447.dealII:  -xdepend   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=no%Cstd   -I/export/cpu2006-v1.1/stdcxx-4.2.1/include   -I/export/cpu2006-v1.1/stdcxx-4.2.1/build/include   -xipo=2   -xprefetch=latx:0.5   -L/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -R/export/cpu2006-v1.1/stdcxx-4.2.1/build/lib   -lstd8d
450.soplex:  -xdepend   -fast   -fma=fused   -xipo=2   -xpagesize=4M   -xalias_level=compatible   -xprefetch=latx:0.5   -library=stlport4
453.povray:  -xdepend   -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xalias_level=compatible   -library=stlport4   -xipo=2   -xlinkopt=2   -xprefetch=latx:4   -xunroll=4   -lfast

Fortran benchmarks:

410.bwaves:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=2
416.gamess:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=3   -xprefetch=latx:1.8
434.zeusmp:  -fast   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=1   -ll2amm
437.leslie3d:  -fast   -fma=fused   -xpagesize=4M   -M /usr/lib/ld/map.bssalign   -xipo=2   -xprefetch=latx:2   -ll2amm
459.GemsFDTD:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -fma=fused   -xpagesize=4M   -xipo=2   -fsimple=1
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xipo=2   -lfast

Benchmarks using both Fortran and C:

435.gromacs:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xinline=   -xchip=generic   -fsimple=0   -xprefetch=latx:1.2   -xunroll=5
436.cactusADM:  -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xalias_level=std   -xprefetch_level=3   -xprefetch_auto_type=indirect_array_access   -fsimple=1
454.calculix:  -fast(cc)   -fast(f90)   -fma=fused   -xpagesize=4M   -xipo=2   -xprefetch_level=1   -xprefetch=latx:3.0   -xalias_level=std   -xprefetch_auto_type=indirect_array_access
481.wrf:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast(cc)   -fast(f90)   -fma=fused   -xipo=2   -xpagesize=4M   -xprefetch_level=2   -xprefetch=latx:1.8   -xalias_level=std   -xprefetch_auto_type=indirect_array_access

Peak Other Flags

C benchmarks:

 -xjobs=4   -V   -#

C++ benchmarks:

 -xjobs=4   -verbose=diags,version

Fortran benchmarks:

 -xjobs=4   -V   -v

Benchmarks using both Fortran and C:

 -xjobs=4   -V   -#   -v

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Sun-Solaris-Studio12-12u1-and-gccfss4.2.r4.xml.
