| CPU2006 license: | 19 | Test date: | Dec-2009 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Jan-2010 |
| Tested by: | Fujitsu | Software Availability: | Nov-2009 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X3460 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.46 GHz |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 16 GB (4x4 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
| Disk Subsystem: | 1 x SATA, 250 GB, 7200 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-smp |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091012 Package ID: l_cproc_p_11.1.059 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 Binutils 2.18.50.0.7.20080502 |

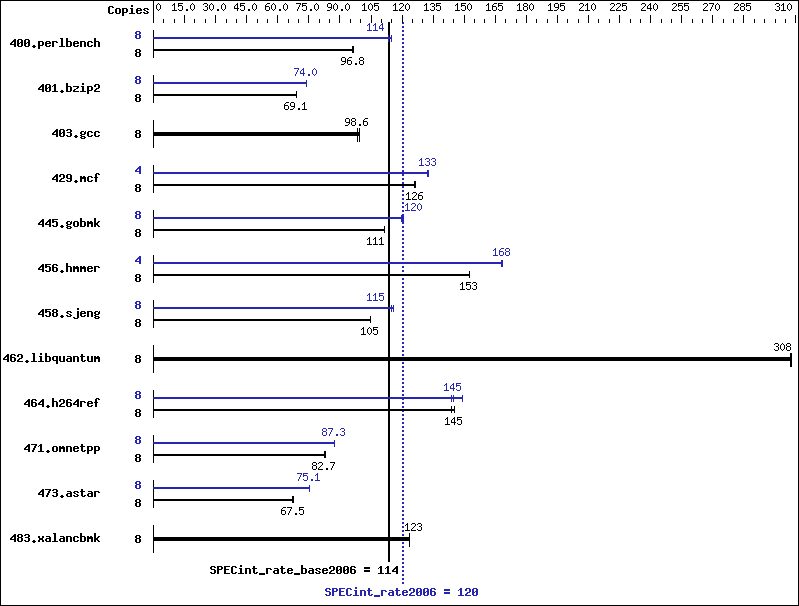

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 813 | 96.1 | 808 | 96.8 | 808 | 96.8 | 8 | 690 | 113 | 688 | 114 | 682 | 115 |
| 401.bzip2 | 8 | 1120 | 68.9 | 1117 | 69.1 | 1115 | 69.2 | 8 | 1043 | 74.0 | 1043 | 74.0 | 1042 | 74.1 |
| 403.gcc | 8 | 655 | 98.3 | 647 | 99.5 | 653 | 98.6 | 8 | 655 | 98.3 | 647 | 99.5 | 653 | 98.6 |
| 429.mcf | 8 | 576 | 127 | 580 | 126 | 577 | 126 | 4 | 274 | 133 | 275 | 133 | 276 | 132 |
| 445.gobmk | 8 | 753 | 111 | 754 | 111 | 752 | 112 | 8 | 700 | 120 | 698 | 120 | 694 | 121 |
| 456.hmmer | 8 | 489 | 153 | 489 | 153 | 489 | 153 | 4 | 222 | 168 | 222 | 168 | 222 | 168 |
| 458.sjeng | 8 | 925 | 105 | 924 | 105 | 925 | 105 | 8 | 842 | 115 | 835 | 116 | 842 | 115 |
| 462.libquantum | 8 | 538 | 308 | 539 | 308 | 539 | 308 | 8 | 538 | 308 | 539 | 308 | 539 | 308 |
| 464.h264ref | 8 | 1217 | 145 | 1230 | 144 | 1217 | 145 | 8 | 1231 | 144 | 1187 | 149 | 1221 | 145 |
| 471.omnetpp | 8 | 605 | 82.6 | 605 | 82.7 | 604 | 82.8 | 8 | 573 | 87.3 | 572 | 87.3 | 572 | 87.3 |
| 473.astar | 8 | 835 | 67.3 | 830 | 67.6 | 832 | 67.5 | 8 | 748 | 75.1 | 748 | 75.1 | 748 | 75.1 |
| 483.xalancbmk | 8 | 447 | 123 | 448 | 123 | 447 | 123 | 8 | 447 | 123 | 448 | 123 | 447 | 123 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
