SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Intel DP55KG motherboard (Intel Core i7-870)

CPU2006 license: 13 Test date: Jan-2010
Test sponsor: Intel Corporation Hardware Availability: Jun-2009
Tested by: Intel Corporation Software Availability: Oct-2009

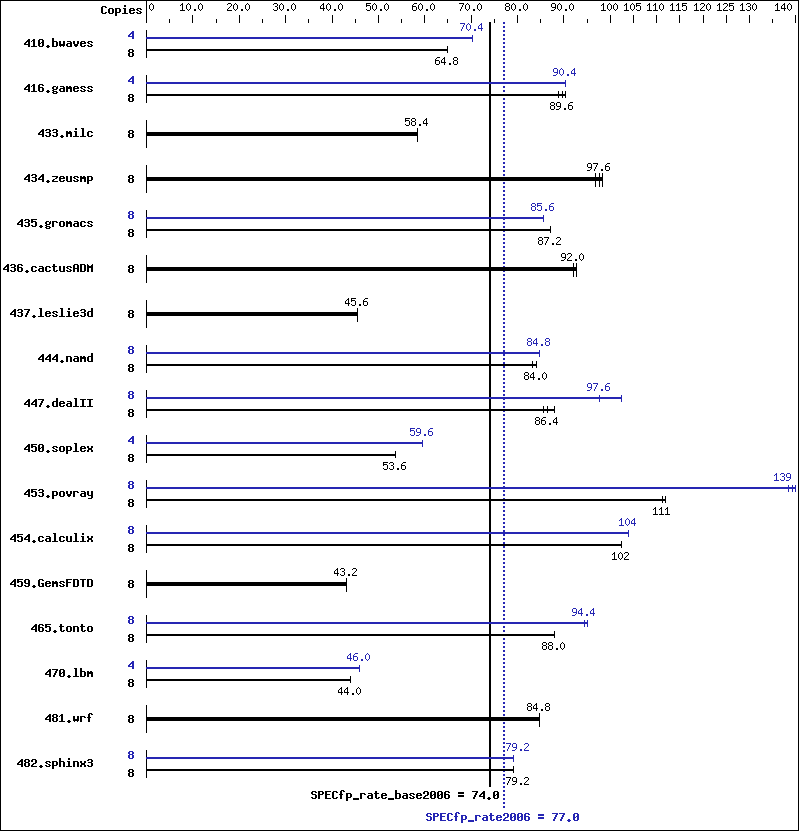

Benchmark results graph
Hardware
CPU Name: Intel Core i7-870
CPU Characteristics: Intel Turbo Boost Technology up to 3.60 GHz
CPU MHz: 2933
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip, 2 threads/core
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 4 GB (2x2GB Micron MT16JTF25664AZ-1G4 DDR3-1333
CL9)
Disk Subsystem: Intel X25-M 80GB SSD
Other Hardware: None
Software
Operating System: Windows Vista Ultimate w/ SP1 (64-bit)
Compiler: Intel C++ Compiler Professional 11.1 for Intel 64
Build 20090903 Package ID: w_cproc_p_11.1.045
Intel Visual Fortran Compiler Professional 11.1
for Intel 64
Build 20090903 Package ID: w_cproc_p_11.1.045,
w_cprof_p_11.1.045
Microsoft Visual Studio 2008 Professional SP1
(for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None
SmartHeap Library Version 8.1 from
http://www.microquill.com/

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1678 64.8 1680 64.8 1680 64.8 4 773 70.4 773 70.4 773 70.4
416.gamess 8 1769 88.8 1744 89.6 1727 90.4 4 865 90.4 865 90.4 865 90.4
433.milc 8 1262 58.4 1261 58.4 1261 58.4 8 1262 58.4 1261 58.4 1261 58.4
434.zeusmp 8 753 96.8 744 97.6 741 98.4 8 753 96.8 744 97.6 741 98.4
435.gromacs 8 656 87.2 655 87.2 653 87.2 8 668 85.6 665 85.6 665 85.6
436.cactusADM 8 1033 92.8 1041 92.0 1036 92.0 8 1033 92.8 1041 92.0 1036 92.0
437.leslie3d 8 1660 45.6 1659 45.6 1659 45.6 8 1660 45.6 1659 45.6 1659 45.6
444.namd 8 766 84.0 766 84.0 768 83.2 8 760 84.8 760 84.8 758 84.8
447.dealII 8 1058 86.4 1037 88.0 1067 85.6 8 934 97.6 892 102   935 97.6
450.soplex 8 1236 53.6 1237 53.6 1237 53.6 4 559 59.6 559 59.6 560 59.6
453.povray 8 383 111   382 111   381 112   8 305 139   307 138   305 140
454.calculix 8 643 102   642 102   643 102   8 636 104   636 104   636 104
459.GemsFDTD 8 1956 43.2 1955 43.2 1960 43.2 8 1956 43.2 1955 43.2 1960 43.2
465.tonto 8 896 88.0 897 88.0 893 88.0 8 831 94.4 830 95.2 833 94.4
470.lbm 8 2514 44.0 2514 44.0 2514 44.0 4 1199 46.0 1199 46.0 1200 46.0
481.wrf 8 1056 84.8 1058 84.8 1058 84.8 8 1056 84.8 1058 84.8 1058 84.8
482.sphinx3 8 1963 79.2 1961 79.2 1961 79.2 8 1963 79.2 1964 79.2 1966 79.2

Submit Notes

The config file option 'submit' was used.
Windows start command was used to bind copies to processors

General Notes

 Tested systems can be used with Shin-G ATX case,
 PC Power and Cooling 1200W power supply
 System was configured with an ATI 5970 discrete graphics card

Base Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64   /Qlowercase
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qcxx-features   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl -Qvc9   -Qstd=c99

C++ benchmarks:

 icl -Qvc9

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl -Qvc9   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
482.sphinx3:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Oa   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll2   -Qansi-alias   -Qscalar-rep-   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qansi-alias   -Qauto-ilp32   /F1000000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   /F1000000000    -link /FORCE:MULTIPLE
416.gamess:  Same as 410.bwaves
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qunroll4   -Qauto   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

435.gromacs:  -QxSSE4.2(pass 2)   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -Qipo   -O3   -Qprec-div-   -Qopt-prefetch   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -QxSSE4.2   -Qipo   -O3   -Qprec-div-   -Qauto-ilp32   /F1000000000    -link /FORCE:MULTIPLE
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.0-winx64-revA.20100302.01.xml.
