SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

NEC Corporation

Express5800/R110b-1
(Intel Xeon X3430)

CPU2006 license: 9006 Test date: Mar-2010
Test sponsor: NEC Corporation Hardware Availability: Jan-2010
Tested by: NEC Corporation Software Availability: Nov-2009

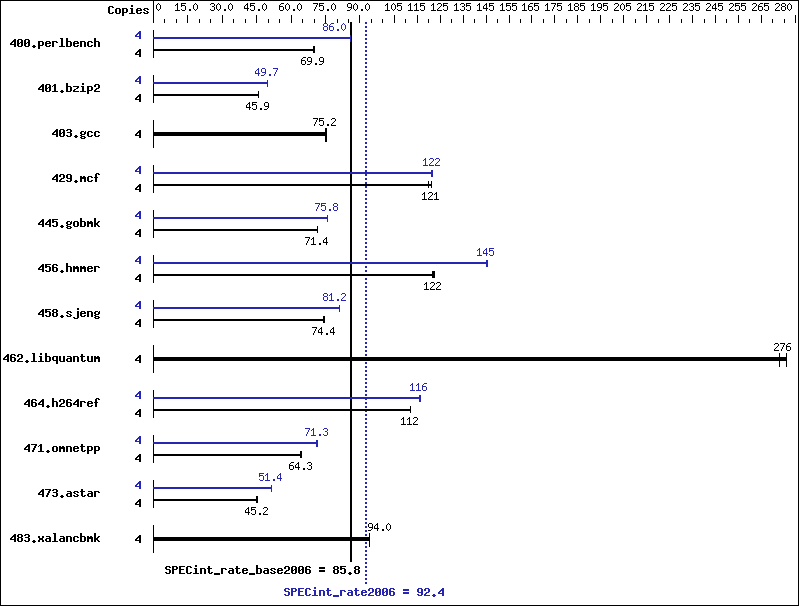

Benchmark results graph
Hardware
CPU Name: Intel Xeon X3430
CPU Characteristics: Intel Turbo Boost Technology up to 2.80 GHz
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 16 GB (4 x 4 GB PC3-10600R, 2 rank, CL9, ECC)
Disk Subsystem: 1x160 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11 (x86_64),
Kernel 2.6.27.19-5-default
Compiler: Intel C++ Professional Compiler for IA32 and
Intel 64, Version 11.1
Build 20091012 Package ID: l_cproc_p_11.1.059
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Microquill SmartHeap V8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 559 69.9 558 70.1 559 69.9 4 454 86.0 454 86.1 455 85.8
401.bzip2 4 841 45.9 844 45.7 839 46.0 4 779 49.6 774 49.9 776 49.7
403.gcc 4 428 75.2 429 75.1 428 75.3 4 428 75.2 429 75.1 428 75.3
429.mcf 4 305 120   301 121   301 121   4 300 121   300 122   300 122
445.gobmk 4 587 71.5 588 71.3 588 71.4 4 554 75.8 554 75.7 553 75.8
456.hmmer 4 307 121   305 122   305 122   4 257 145   257 145   257 145
458.sjeng 4 651 74.4 651 74.4 651 74.3 4 596 81.2 596 81.2 596 81.3
462.libquantum 4 304 273   300 276   301 276   4 304 273   300 276   301 276
464.h264ref 4 791 112   791 112   791 112   4 763 116   762 116   763 116
471.omnetpp 4 388 64.4 390 64.2 389 64.3 4 351 71.3 351 71.2 350 71.3
473.astar 4 621 45.2 622 45.2 623 45.1 4 546 51.4 546 51.4 546 51.4
483.xalancbmk 4 293 94.2 294 94.0 294 94.0 4 293 94.2 294 94.0 294 94.0

Submit Notes

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Platform Notes

 Default BIOS settings were used.

Base Compiler Invocation

C benchmarks:

 icc -m32

C++ benchmarks:

 icpc -m32

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch

C++ benchmarks:

 -xSSE4.2   -ipo   -O3   -no-prec-div   -opt-prefetch   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc -m32
401.bzip2:  icc -m64
456.hmmer:  icc -m64
458.sjeng:  icc -m64

C++ benchmarks (except as noted below):

 icpc -m32
473.astar:  icpc -m64

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -ansi-alias
401.bzip2:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -opt-prefetch   -ansi-alias   -auto-ilp32
403.gcc:  basepeak = yes
429.mcf:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -opt-prefetch
445.gobmk:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -prof-use(pass 2)   -O2   -ipo   -no-prec-div   -ansi-alias
456.hmmer:  -xSSE4.2   -ipo   -O3   -no-prec-div   -static   -unroll2   -ansi-alias   -auto-ilp32
458.sjeng:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll4   -auto-ilp32
462.libquantum:  basepeak = yes
464.h264ref:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -static(pass 2)   -prof-use(pass 2)   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=block   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib -lsmartheap
473.astar:  -xSSE4.2(pass 2)   -prof-gen(pass 1)   -ipo(pass 2)   -O3(pass 2)   -no-prec-div(pass 2)   -prof-use(pass 2)   -ansi-alias   -opt-ra-region-strategy=routine   -Wl,-z,muldefs   -L/opt/SmartHeap_8.1/lib64 -lsmartheap64
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic11.1-int-linux64-revE.20100302.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic11.1-int-linux64-revE.20100302.xml.
