SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter PS702 Express (3.0 GHz, 16 core,
SLES)

CPU2006 license: 11 Test date: Mar-2010
Test sponsor: IBM Corporation Hardware Availability: Jun-2010
Tested by: IBM Corporation Software Availability: Dec-2009

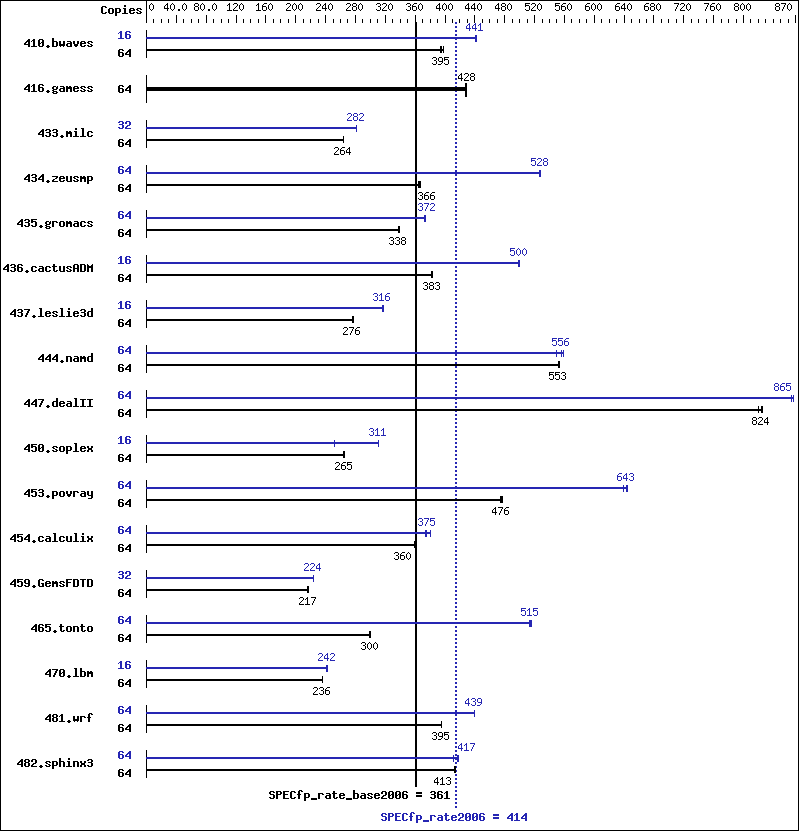

Benchmark results graph
Hardware
CPU Name: POWER7
CPU Characteristics: Intelligent Energy Optimization
enabled, up to 3.30 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 16 cores, 2 chips, 8 cores/chip, 4 threads/core
CPU(s) orderable: 16 cores
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 128 GB (32x4 GB) DDR3 1066 MHz
Disk Subsystem: 1x300 GB SAS SFF 10K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise Server 11
(ppc64), Kernel 2.6.27.19-5-ppc64
Compiler: IBM XL C/C++ for Linux, V10.1
Updated with the Oct2009 PTF
IBM XL Fortran for Linux, V12.1
Updated with the Oct2009 PTF
Auto Parallel: No
File System: ext3
System State: Run level 3 (multi-user)
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, Version 5.5.0-1
-MicroQuill SmartHeap 9

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 64 2202 395 2183 398 2206 394 16 491 443 494 441 494 440
416.gamess 64 2925 428 2919 429 2927 428 64 2925 428 2919 429 2927 428
433.milc 64 2225 264 2222 264 2224 264 32 1042 282 1043 282 1042 282
434.zeusmp 64 1584 368 1600 364 1591 366 64 1103 528 1102 528 1105 527
435.gromacs 64 1351 338 1352 338 1348 339 64 1222 374 1227 372 1227 372
436.cactusADM 64 1999 383 2001 382 1994 384 16 383 500 383 500 384 499
437.leslie3d 64 2182 276 2174 277 2182 276 16 475 316 476 316 474 317
444.namd 64 931 552 929 553 928 553 64 918 559 935 549 923 556
447.dealII 64 888 825 889 824 893 820 64 844 867 847 865 847 864
450.soplex 64 2018 264 2009 266 2012 265 16 528 253 429 311 429 311
453.povray 64 717 475 716 476 714 477 64 528 644 530 643 533 639
454.calculix 64 1470 359 1468 360 1467 360 64 1387 381 1407 375 1410 374
459.GemsFDTD 64 3147 216 3127 217 3132 217 32 1518 224 1522 223 1515 224
465.tonto 64 2101 300 2104 299 2100 300 64 1227 513 1221 516 1224 515
470.lbm 64 3730 236 3723 236 3730 236 16 908 242 909 242 908 242
481.wrf 64 1811 395 1808 395 1807 396 64 1627 440 1629 439 1627 439
482.sphinx3 64 3011 414 3018 413 3025 412 64 3034 411 2989 417 2988 418

Submit Notes

The config file option 'submit' was used.
Benchmarks bound to a processor using numactl on the submit command.

Operating System Notes

 ulimit -s (stack) set to 1048576.
 Large pages reserved as follows by root user:
     echo 4224 > /proc/sys/vm/nr_hugepages
 System configured with libhugetlbfs library for application access to large pages
 Environment variables set before executing benchmarks.
     export HUGETLB_VERBOSE=0
     export HUGETLB_MORECORE=yes
     export XLFRTEOPTS=intrinthds=1

General Notes


 IBM Post-Link optimization tool with
     options "-O4 -omullX -see 0 -m power6" used for
        433.milc 435.gromacs 436.cactusADM 482.sphinx3
     options "-O4 -omullX -see 1" used for
        436.cactusADM
     options "-O4 -omullX -see 1 -ihf -1" used for
        453.povray
     options "-O4" used for
        465.tonto
      Whenever option "-omullX" was used during the optimization phase,
        option "-imullX" was also used during the instrumentation phase.

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qnoenablevmx   -lhugetlbfs

C++ benchmarks:

 -O5   -qrtti   -qnoenablevmx   -qstaticlink   -Wl,--whole-archive /usr/lib/libhugetlbfs.a   -Wl,--no-whole-archive

Fortran benchmarks:

 -O5   -qsmallstack=dynlenonheap   -qalias=nostd   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT

Benchmarks using both Fortran and C:

 -O5   -qnoenablevmx   -qsmallstack=dynlenonheap   -qalias=nostd   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -Wl,-q   -O5   -qnoenablevmx   -lhugetlbfs
470.lbm:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -lhugetlbfs

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5
447.dealII:  -O5   -qrtti   -qnoenablevmx   -qstaticlink   -Wl,-z,muldefs   -Wl,--whole-archive /usr/lib/libsmartheap.a   -Wl,--no-whole-archive
450.soplex:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qstrict   -lhugetlbfs
453.povray:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -lsmartheap

Fortran benchmarks:

410.bwaves:  -O5   -qsmallstack=dynlenonheap   -lhugetlbfs
416.gamess:  basepeak = yes
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=auto   -qtune=auto   -qxlf90=nosignedzero   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
437.leslie3d:  -O5   -qsmallstack=dynlenonheap   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
459.GemsFDTD:  -O5   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
465.tonto:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -q64   -lsmartheap64

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -lhugetlbfs
436.cactusADM:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=auto   -qtune=auto   -qnostrict   -lhugetlbfs
454.calculix:  -O4   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
481.wrf:  -O5   -qnoenablevmx   -q64   -lhugetlbfs

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20100302.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IBM-Linux-XL.20100302.xml.
