CPU2006 license: | 001176 | Test date: | May-2010 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | Mar-2010 |
Tested by: | Supermicro | Software Availability: | Jan-2010 |
Hardware | |
---|---|
CPU Name: | Intel Xeon X3450 |
CPU Characteristics: | Intel Turbo Boost Technology up to 3.20 GHz |
CPU MHz: | 2666 |
FPU: | Integrated |
CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip, 2 threads/core |
CPU(s) orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
L3 Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory: | 16 GB (4 x 4 GB DDR3-1333 RDIMM, ECC, CL9) |
Disk Subsystem: | 1 x 160 GB SATA II, 7200 RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64) Kernel 2.6.27.19-5-default |
Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
Auto Parallel: | No |
File System: | ReiserFS |
System State: | Run level 3 (multi-user) |
Base Pointers: | 64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | Microquill SmartHeap V8.1 |

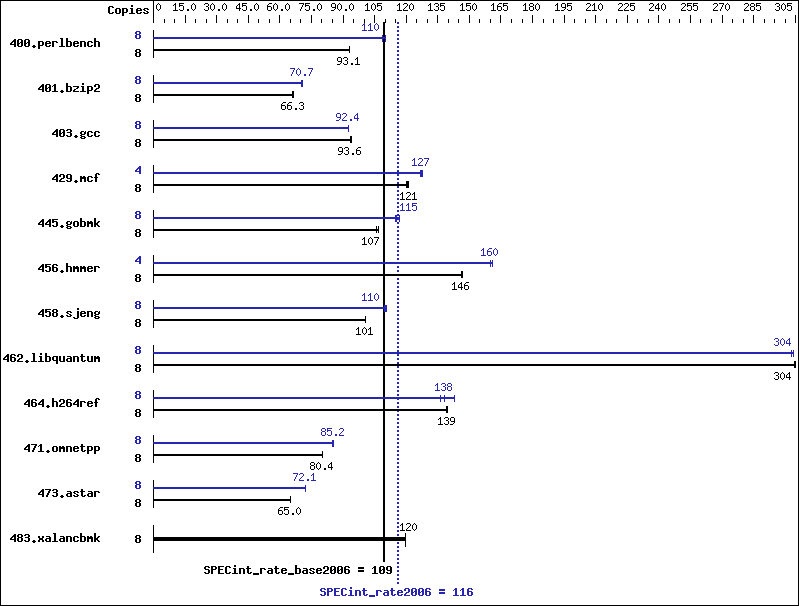

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 8 | 840 | 93.1 | 840 | 93.0 | 838 | 93.3 | 8 | 710 | 110 | 708 | 110 | 719 | 109 |
401.bzip2 | 8 | 1164 | 66.3 | 1167 | 66.1 | 1165 | 66.3 | 8 | 1092 | 70.7 | 1098 | 70.3 | 1090 | 70.8 |
403.gcc | 8 | 688 | 93.6 | 685 | 94.0 | 689 | 93.4 | 8 | 697 | 92.4 | 697 | 92.4 | 695 | 92.6 |
429.mcf | 8 | 605 | 121 | 604 | 121 | 608 | 120 | 4 | 286 | 128 | 286 | 127 | 287 | 127 |
445.gobmk | 8 | 791 | 106 | 785 | 107 | 784 | 107 | 8 | 728 | 115 | 719 | 117 | 730 | 115 |
456.hmmer | 8 | 509 | 147 | 511 | 146 | 510 | 146 | 4 | 233 | 160 | 233 | 160 | 232 | 161 |
458.sjeng | 8 | 961 | 101 | 963 | 101 | 962 | 101 | 8 | 881 | 110 | 874 | 111 | 880 | 110 |
462.libquantum | 8 | 544 | 304 | 544 | 305 | 544 | 304 | 8 | 545 | 304 | 546 | 304 | 547 | 303 |
464.h264ref | 8 | 1273 | 139 | 1268 | 140 | 1269 | 139 | 8 | 1297 | 136 | 1281 | 138 | 1239 | 143 |
471.omnetpp | 8 | 622 | 80.3 | 622 | 80.4 | 622 | 80.4 | 8 | 586 | 85.4 | 587 | 85.2 | 587 | 85.2 |
473.astar | 8 | 866 | 64.8 | 864 | 65.0 | 863 | 65.0 | 8 | 779 | 72.1 | 778 | 72.2 | 779 | 72.1 |
483.xalancbmk | 8 | 461 | 120 | 461 | 120 | 461 | 120 | 8 | 461 | 120 | 461 | 120 | 461 | 120 |
The config file option 'submit' was used. numactl was used to bind copies to the cores
'ulimit -s unlimited' was used to set the stack size to unlimited prior to run
Fan speed set to Full Speed in BIOS Setup. As tested, the system used a Supermicro PWS-721P-1R power supply, SNK-P0046P heatsink, and FAN-0077L cooling fan.
Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
462.libquantum: | -DSPEC_CPU_LINUX |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
-xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
icc -m32 | |
401.bzip2: | icc -m64 |
456.hmmer: | icc -m64 |
458.sjeng: | icc -m64 |
462.libquantum: | icc -m64 |
icpc -m32 | |
473.astar: | icpc -m64 |
400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
401.bzip2: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
473.astar: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
403.gcc: | -xSSE4.2 -ipo -O3 -no-prec-div -static |
429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
462.libquantum: | -xSSE4.2 -ipo -O3 -no-prec-div -static -auto-ilp32 -opt-prefetch |
464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
483.xalancbmk: | basepeak = yes |
