CPU2006 license: | 55 | Test date: | Jun-2010 |
---|---|---|---|
Test sponsor: | Dell Inc. | Hardware Availability: | May-2010 |
Tested by: | Dell Inc. | Software Availability: | Feb-2010 |
Hardware | |
---|---|
CPU Name: | AMD Opteron 6164 HE |
CPU Characteristics: | |
CPU MHz: | 1700 |
FPU: | Integrated |
CPU(s) enabled: | 24 cores, 2 chips, 12 cores/chip |
CPU(s) orderable: | 2,4 chips |
Primary Cache: | 64 KB I + 64 KB D on chip per core |
Secondary Cache: | 512 KB I+D on chip per core |
L3 Cache: | 12 MB I+D on chip per chip, 6 MB shared / 6 cores |
Other Cache: | None |
Memory: | 64 GB (16 x 4 GB DDR3-1333 DR RDIMM, CL9, ECC) |
Disk Subsystem: | 1 x 148 GB 10000 RPM SAS |
Other Hardware: | None |
Software | |
---|---|
Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-smp |
Compiler: | x86 Open64 4.2.3 Compiler Suite (from AMD) |
Auto Parallel: | No |
File System: | ext3 |
System State: | Run level 3 (Full multiuser with network) |
Base Pointers: | 32/64-bit |
Peak Pointers: | 32/64-bit |
Other Software: | SmartHeap 8.1 32-bit Library for Linux |

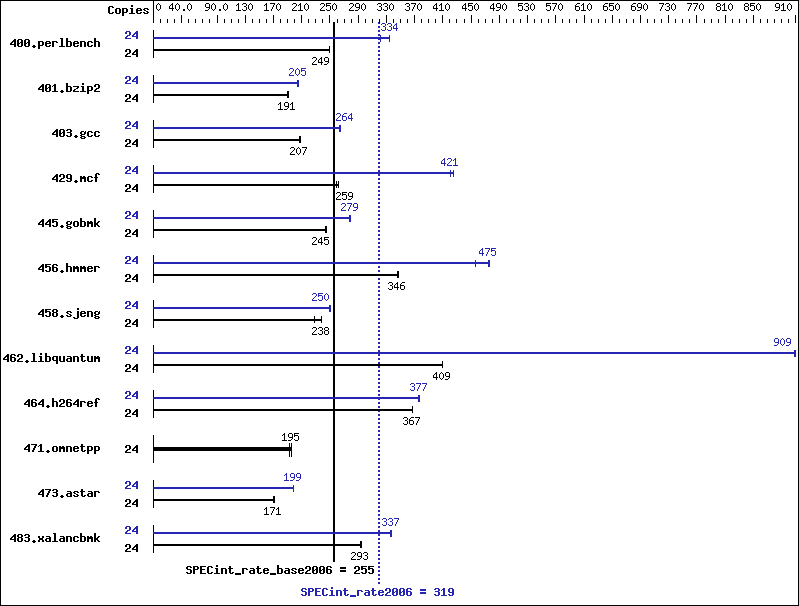

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
400.perlbench | 24 | 940 | 249 | 941 | 249 | 943 | 249 | 24 | 731 | 321 | 702 | 334 | 701 | 335 |
401.bzip2 | 24 | 1217 | 190 | 1215 | 191 | 1215 | 191 | 24 | 1137 | 204 | 1130 | 205 | 1131 | 205 |
403.gcc | 24 | 933 | 207 | 928 | 208 | 936 | 206 | 24 | 735 | 263 | 729 | 265 | 731 | 264 |
429.mcf | 24 | 837 | 262 | 854 | 256 | 844 | 259 | 24 | 520 | 421 | 515 | 425 | 520 | 421 |
445.gobmk | 24 | 1033 | 244 | 1028 | 245 | 1026 | 245 | 24 | 900 | 280 | 908 | 277 | 902 | 279 |
456.hmmer | 24 | 648 | 346 | 644 | 348 | 649 | 345 | 24 | 472 | 475 | 491 | 456 | 471 | 476 |
458.sjeng | 24 | 1273 | 228 | 1217 | 239 | 1220 | 238 | 24 | 1165 | 249 | 1160 | 250 | 1164 | 250 |
462.libquantum | 24 | 1216 | 409 | 1216 | 409 | 1214 | 410 | 24 | 547 | 909 | 547 | 909 | 547 | 909 |
464.h264ref | 24 | 1445 | 367 | 1445 | 368 | 1446 | 367 | 24 | 1412 | 376 | 1408 | 377 | 1408 | 377 |
471.omnetpp | 24 | 769 | 195 | 777 | 193 | 769 | 195 | 24 | 769 | 195 | 777 | 193 | 769 | 195 |
473.astar | 24 | 990 | 170 | 986 | 171 | 987 | 171 | 24 | 849 | 199 | 850 | 198 | 849 | 199 |
483.xalancbmk | 24 | 566 | 293 | 564 | 293 | 561 | 295 | 24 | 494 | 336 | 491 | 337 | 492 | 337 |
The config file option 'submit' was used. 'numactl' was used to bind copies to the cores. See the configuration file for details.
'ulimit -s unlimited' was used to set environment stack size 'ulimit -l 2097152' was used to set environment locked pages in memory limit Set vm/nr_hugepages=10800 in /etc/sysctl.conf mount -t hugetlbfs nodev /mnt/hugepages
Environment variables set by runspec before the start of the run: HUGETLB_LIMIT = "450" LD_LIBRARY_PATH = "/cpu2006/amd1002mc-rate-revA-libs/64:/cpu2006/amd1002mc-rate-revA-libs/32" The x86 Open64 Compiler Suite is only available from (and supported by) AMD at http://developer.amd.com/cpu/open64 Binaries were compiled on SLES10 SP2 with binutils 2.18
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
403.gcc: | -DSPEC_CPU_LP64 |
429.mcf: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
-march=barcelona -mso -Ofast -CG:local_sched_alg=1 -HP:bdt=2m:heap=2m |
-march=barcelona -mso -Ofast -m32 -INLINE:aggressive=on -CG:cmp_peep=on -L/root/work/libraries/SmartHeap-8.1/lib -lsmartheap |
400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
401.bzip2: | -DSPEC_CPU_LP64 |
445.gobmk: | -DSPEC_CPU_LP64 |
456.hmmer: | -DSPEC_CPU_LP64 |
458.sjeng: | -DSPEC_CPU_LP64 |
462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
464.h264ref: | -DSPEC_CPU_LP64 |
483.xalancbmk: | -DSPEC_CPU_LINUX |
