| CPU2006 license: | 19 | Test date: | Jul-2010 |
|---|---|---|---|
| Test sponsor: | Fujitsu | Hardware Availability: | Aug-2010 |
| Tested by: | Fujitsu | Software Availability: | Jan-2010 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5670 |
| CPU Characteristics: | Intel Turbo Boost Technology up to 3.33 GHz |
| CPU MHz: | 2933 |
| FPU: | Integrated |
| CPU(s) enabled: | 12 cores, 2 chips, 6 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| L3 Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 48 GB (6x8 GB PC3-10600R, 2 rank, CL9-9-9, ECC) |
| Disk Subsystem: | 1 x SAS, 300 GB, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 11 (x86_64), Kernel 2.6.27.19-5-default |
| Compiler: | Intel C++ Professional Compiler for IA32 and Intel 64, Version 11.1 Build 20091130 Package ID: l_cproc_p_11.1.064 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-User Run Level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | Microquill SmartHeap V8.1 |

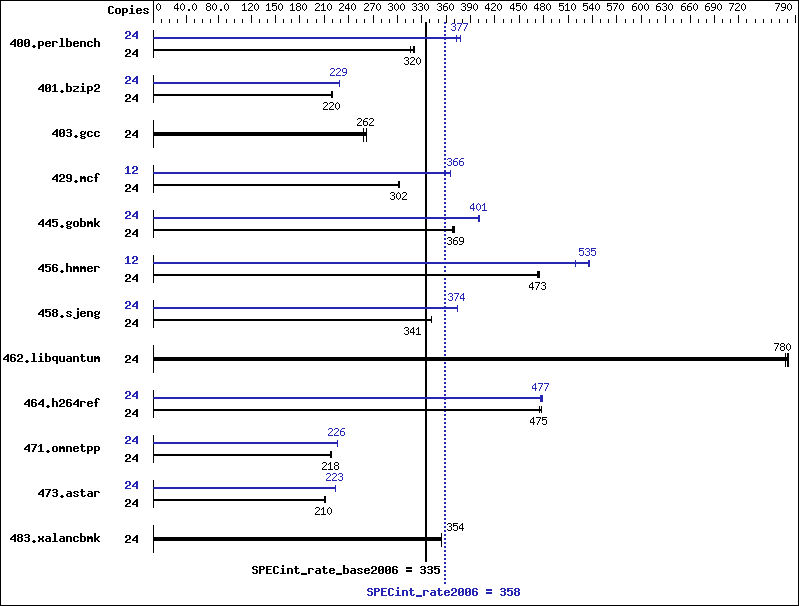

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 24 | 734 | 320 | 741 | 316 | 732 | 321 | 24 | 621 | 377 | 620 | 378 | 628 | 373 |
| 401.bzip2 | 24 | 1056 | 219 | 1053 | 220 | 1052 | 220 | 24 | 1012 | 229 | 1011 | 229 | 1011 | 229 |
| 403.gcc | 24 | 737 | 262 | 737 | 262 | 749 | 258 | 24 | 737 | 262 | 737 | 262 | 749 | 258 |
| 429.mcf | 24 | 727 | 301 | 723 | 303 | 725 | 302 | 12 | 299 | 366 | 299 | 366 | 300 | 365 |
| 445.gobmk | 24 | 682 | 369 | 679 | 371 | 684 | 368 | 24 | 628 | 401 | 628 | 401 | 630 | 400 |
| 456.hmmer | 24 | 473 | 473 | 475 | 472 | 472 | 474 | 12 | 209 | 536 | 216 | 519 | 209 | 535 |
| 458.sjeng | 24 | 851 | 341 | 850 | 341 | 850 | 342 | 24 | 776 | 374 | 776 | 374 | 778 | 373 |
| 462.libquantum | 24 | 639 | 778 | 638 | 780 | 637 | 780 | 24 | 639 | 778 | 638 | 780 | 637 | 780 |
| 464.h264ref | 24 | 1112 | 478 | 1119 | 475 | 1118 | 475 | 24 | 1117 | 476 | 1114 | 477 | 1109 | 479 |
| 471.omnetpp | 24 | 687 | 218 | 687 | 218 | 686 | 219 | 24 | 664 | 226 | 663 | 226 | 663 | 226 |
| 473.astar | 24 | 796 | 212 | 801 | 210 | 802 | 210 | 24 | 754 | 223 | 754 | 223 | 754 | 223 |
| 483.xalancbmk | 24 | 468 | 354 | 467 | 354 | 468 | 354 | 24 | 468 | 354 | 467 | 354 | 468 | 354 |
Submit Notes
The config file option 'submit' was used. numactl was used to bind copies to the cores
Operating System Notes
'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
Platform Notes
BIOS configuration: Data Reuse Optimization = Disable Performance/Power Setting = Traditional
General Notes
For information about Fujitsu please visit: http://www.fujitsu.com Binaries were compiled on SLES 10 with Binutils 2.18.50.0.7.20080502
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
C++ benchmarks:
| -xSSE4.2 -ipo -O3 -no-prec-div -opt-prefetch -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
| icc -m32 | |
| 401.bzip2: | icc -m64 |
| 456.hmmer: | icc -m64 |
| 458.sjeng: | icc -m64 |
C++ benchmarks (except as noted below):
| icpc -m32 | |
| 473.astar: | icpc -m64 |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 473.astar: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias |
| 401.bzip2: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32 |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch |
| 445.gobmk: | -xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias |
| 456.hmmer: | -xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32 |
| 458.sjeng: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32 |
| 462.libquantum: | basepeak = yes |
| 464.h264ref: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias |
C++ benchmarks:
| 471.omnetpp: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-32bit -lsmartheap |
| 473.astar: | -xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/home/cmplr/usr3/alrahate/cpu2006.1.1.ic11.1/libic11.1-64bit -lsmartheap64 |
| 483.xalancbmk: | basepeak = yes |
