SPEC® CINT2006 Result

Hewlett-Packard Company

ProLiant DL580 G7
(2.27 GHz, Intel Xeon X7560)

Hardware
CPU Name:	Intel Xeon X7560
CPU Characteristics:	Intel Turbo Boost Technology up to 2.67 GHz
CPU MHz:	2267
FPU:	Integrated
CPU(s) enabled:	16 cores, 2 chips, 8 cores/chip, 2 threads/core
CPU(s) orderable:	2,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
L3 Cache:	24 MB I+D on chip per chip
Other Cache:	None
Memory:	512 GB (32 x 16 GB 4Rx4 PC3-8500R CL7)
Disk Subsystem:	2 x 146 GB 15 k SAS
Other Hardware:	None

Software
Operating System:	Red Hat Enterprise Linux Server release 5.5 Advanced Platform, Kernel 2.6.18-194.el5
Compiler:	Intel C++ Compiler 11.1 for Linux Build 20090827 Package ID: l_cproc_p_11.1.056
Auto Parallel:	No
File System:	ext3
System State:	Run level 3 (multi-user)
Base Pointers:	32-bit
Peak Pointers:	32/64-bit
Other Software:	Microquill SmartHeap V8.1 Binutils 2.17.50.0.6-12.el5

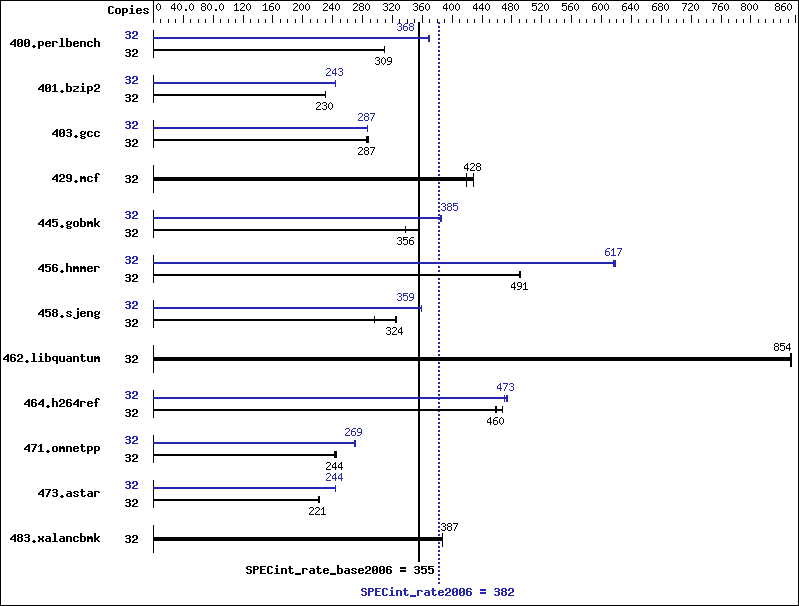

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench	32	1011	309	1013	309	1011	309	32	845	370	850	368	849	368
401.bzip2	32	1340	230	1344	230	1342	230	32	1267	244	1270	243	1270	243
403.gcc	32	894	288	898	287	901	286	32	900	286	897	287	898	287
429.mcf	32	696	420	682	428	681	428	32	696	420	682	428	681	428
445.gobmk	32	993	338	943	356	944	356	32	870	386	871	385	875	384
456.hmmer	32	610	490	608	491	607	492	32	482	619	485	616	484	617
458.sjeng	32	1306	297	1194	324	1189	326	32	1080	358	1078	359	1080	359
462.libquantum	32	777	854	777	854	777	854	32	777	854	777	854	777	854
464.h264ref	32	1541	460	1517	467	1548	457	32	1497	473	1494	474	1505	471
471.omnetpp	32	818	244	824	243	819	244	32	741	270	743	269	743	269
473.astar	32	1011	222	1015	221	1015	221	32	924	243	921	244	920	244
483.xalancbmk	32	570	387	570	387	570	387	32	570	387	570	387	570	387

The config file option 'submit' was used.
 numactl was used to bind copies to the cores

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

 BIOS configuration:
  Power Profile set to Maximum Performance
  Thermal Configuration set to Increased Cooling

icc

icpc

-xSSE4.2 -ipo -O3 -no-prec-div -static -opt-prefetch

403.gcc:

	icc
401.bzip2:	/opt/intel/Compiler/11.1/056/bin/intel64/icc
456.hmmer:	/opt/intel/Compiler/11.1/056/bin/intel64/icc
458.sjeng:	/opt/intel/Compiler/11.1/056/bin/intel64/icc

icpc

400.perlbench:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -ansi-alias
401.bzip2:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -opt-prefetch -ansi-alias -auto-ilp32
403.gcc:	-xSSE4.2 -ipo -O3 -no-prec-div -static
429.mcf:	basepeak = yes
445.gobmk:	-xSSE4.2(pass 2) -prof-gen(pass 1) -prof-use(pass 2) -O2 -ipo -no-prec-div -ansi-alias
456.hmmer:	-xSSE4.2 -ipo -O3 -no-prec-div -static -unroll2 -ansi-alias -auto-ilp32
458.sjeng:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll4 -auto-ilp32
462.libquantum:	basepeak = yes
464.h264ref:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -static(pass 2) -prof-use(pass 2) -unroll2 -ansi-alias

471.omnetpp:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=block -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
473.astar:	-xSSE4.2(pass 2) -prof-gen(pass 1) -ipo(pass 2) -O3(pass 2) -no-prec-div(pass 2) -prof-use(pass 2) -ansi-alias -opt-ra-region-strategy=routine -Wl,-z,muldefs -L/cpu2006/SmartHeap_8.1/lib -lsmartheap
483.xalancbmk:	basepeak = yes

403.gcc:
